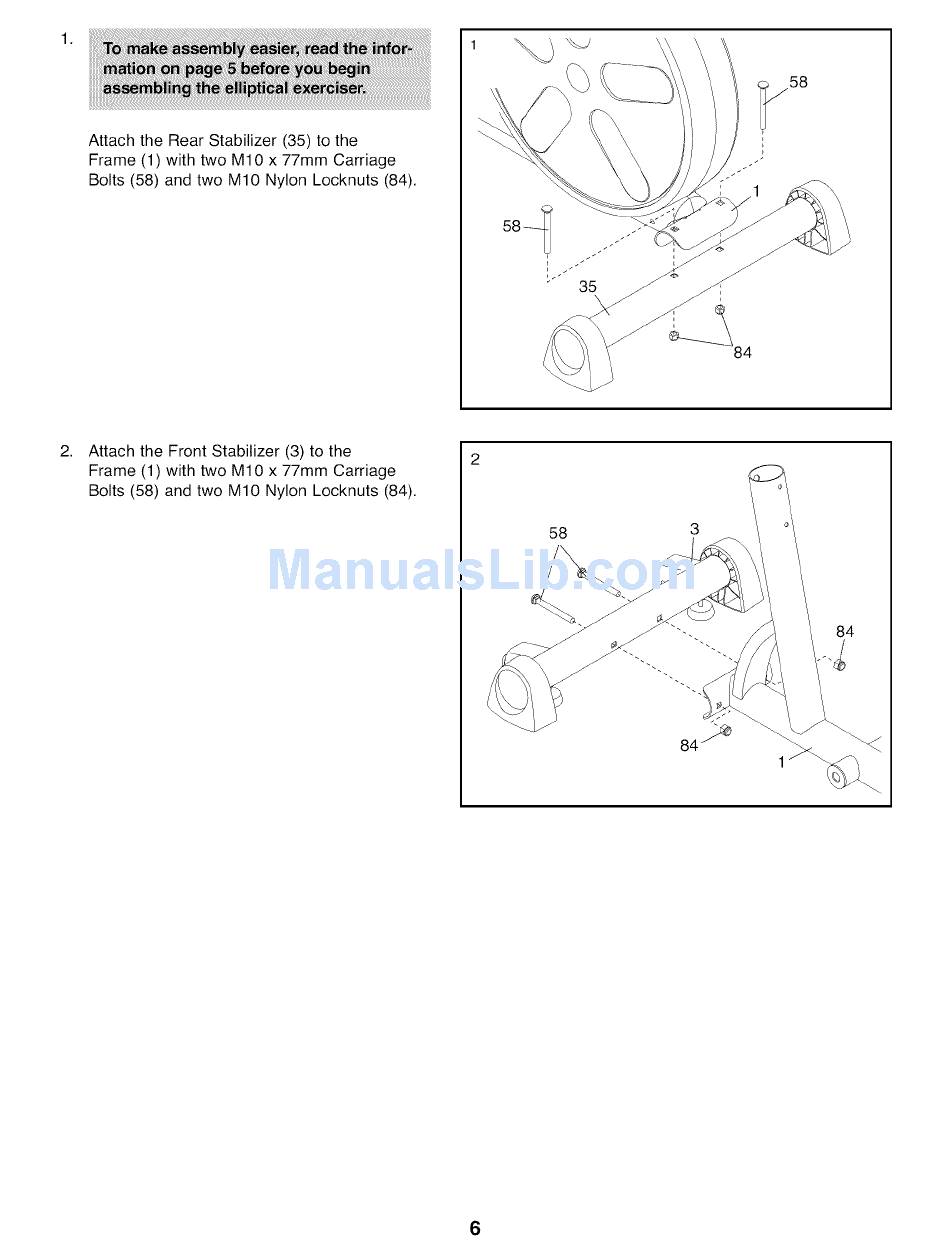

1,
Attach the Rear Stabilizer (35) to the
Frame (1) with two M10 x 77mm Carriage
Bolts (58) and two M10 Nylon Locknuts (84).
Attach the Front Stabilizer (3) to the
Frame (1) with two M10 x 77mm Carriage
Bolts (58) and two M10 Nylon Locknuts (84).
58
3
84
6
