KitchenAid KSSS36FJX00 Parts List

KitchenAid KSSS36FJX00 Parts List

36" built in refrigerator
Hide thumbs Also See for KSSS36FJX00:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Instruction and Installation Manual

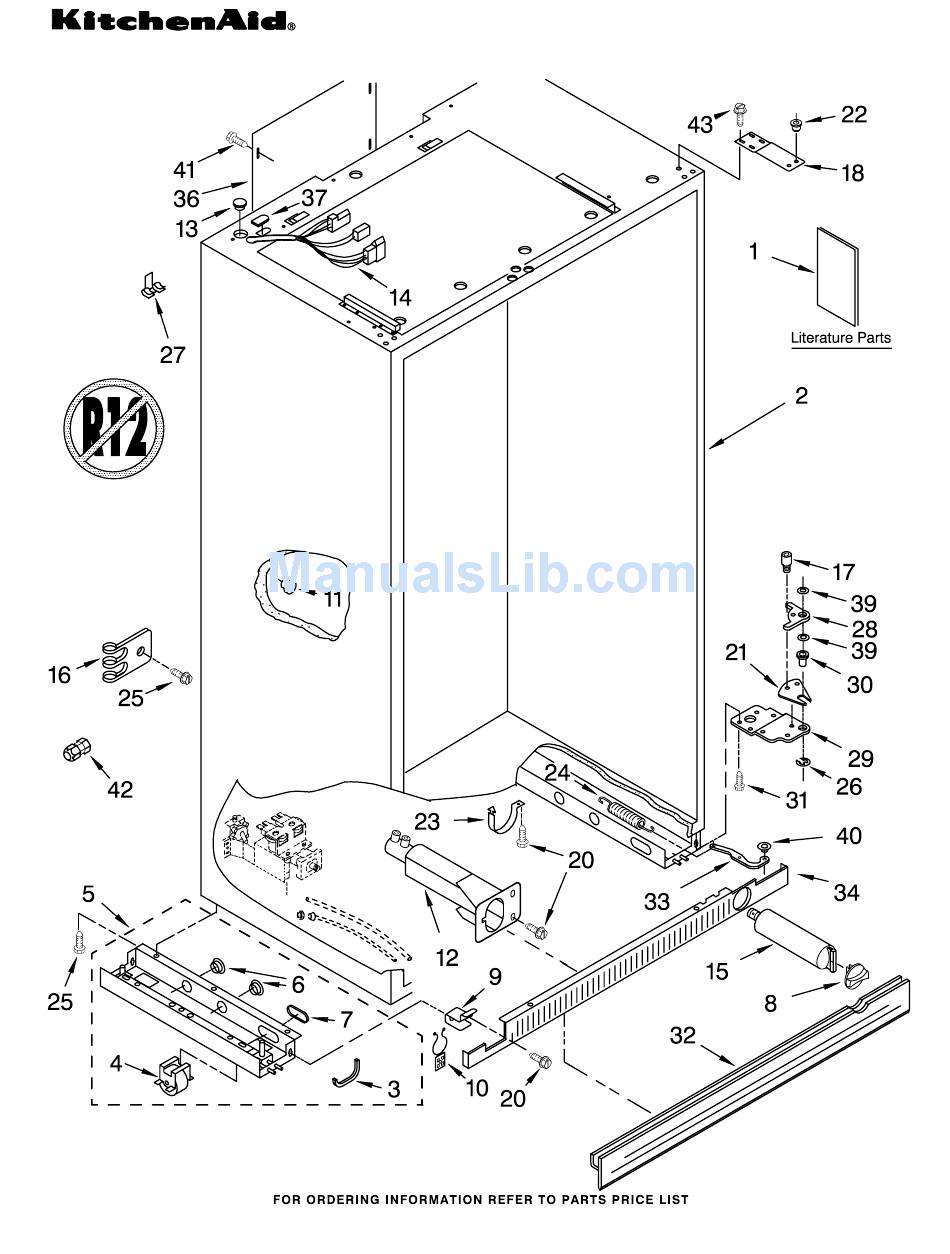

CABINET PARTS
36" BUILT IN
REFRIGERATOR
For Models: KSSS36FJX00
(Brushed Aluminum)
10−00 Litho In U.S.A. (mek)
Part No. 4398891
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS36FJX00 and is the answer not in the manual?

Questions and answers

Related Manuals for KitchenAid KSSS36FJX00

Summary of Contents for KitchenAid KSSS36FJX00

  • Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Models: KSSS36FJX00 (Brushed Aluminum) 10−00 Litho In U.S.A. (mek) Part No. 4398891...

  • Page 2: Cabinet Parts

    CABINET PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 1113227 Fastener (3) LITERATURE PARTS 2006442 Mounting Stud, 2006342 Gap, Cover LIT2209249 Use & Care Guide Grill Assembly (Bottom) LIT2209471 Energy Label 2005237 Clip, Wire Hinge (Bottom) LIT2209309 Service &...
  • Page 3 CABINET TRIM PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part DESCRIPTION 2006789 Cabinet, Trim 2003857 Screw 1163283 Screw 2209073 Cabinet, Trim (Bottom) 486194 Screw 2003645 Cabinet, Trim Top 2005925 Seal−Trim, Side 489464 Screw 4398891...

  • Page 4: Freezer Liner Parts

    FREEZER LINER PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2005567 Bracket, Light 1113650 Lens 2005042 Light, Socket 548049 Light, Bulb 538533 Support Clip, Icemaker (2) 2000193 Grommet, Screw (2) 488552 Screw 486194 Screw 1112591 Spacer, Control Panel (3) 842534 Clip, Air Duct (4)

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Models: KSSS36FJX00 (Brushed Aluminum) 4398891...
  • Page 6 REFRIGERATOR LINER PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part DESCRIPTION LINER (Not A Serviceable Part) 1112591 Spacer, Control Panel (3) 2001117 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2188392 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2001326 Seal, Air Duct...
  • Page 7 REFRIGERATOR CONTROL PANEL PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part DESCRIPTION 2209225 Control Panel 2209001 Inlay, Control Panel 2208995 Circuit Board 2003842 Control Knob 2003841 Retainer, Knob 1118894 Switch, Rocker Arm 1113133 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2209172 Shield, Control Panel 2005043 Socket, Light...
  • Page 8 FREEZER CONTROL PANEL PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part DESCRIPTION 1113625 Control Panel 2003307 Inlay, Control Panel 1113466 Thermostat & Barrier Assembly 488974 Screw (2) 1115373 Switch, Rocker Arm 1113132 Seal, Control Panel 489260 Screw (3) 2000153 Hole Plug (3) 2209252 Shield, Control Panel 2005042 Socket, Light...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Models: KSSS36FJX00 (Brushed Aluminum) 4398891...
  • Page 10 REFRIGERATOR SHELF PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part DESCRIPTION 2174402 Frame, Shelf 2003375 Glass, Shelf 1113546 Reflector, Shelf 1113790 Gasket, Glass (2) 2179375 Rack, Wine 2169933 Egg Bin 2006523 Frame, Assembly Meat Pan 2164373 Egg Carrier 1113893 Cover, Crisper 2003378 Glass, Crisper 2000742 Meat Pan, Connector...

  • Page 11: Freezer Shelf Parts

    FREEZER SHELF PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part DESCRIPTION 2003142 Solid Shelf 2188381 Front, Ice Compartment 1113564 Shelf, Fixed (1) 1113636 Shelf, Deep (2) 2208192 Basket 2208906 Ice Container 2003043 Front Cover Slide, Container 2002720 Right Side 2002721 Left Side 2003046 Hole Plug, Front 2003047 Hole Plug, Rear 2003112 Trim, Basket...
  • Page 12 TOP GRILLE AND UNIT COVER PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003713 Top Grille 2003617 Trim, Grille 2005534 Guard, Compressor Assembly Wiring 2003599 Trim, Grille 2005549 Cover, Unit 2006440 Baffle−Air, 486194 Screw Right Side Condenser 2002484 Grille, Bracket...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Models: KSSS36FJX00 (Brushed Aluminum) 4398891...
  • Page 14 REFRIGERATOR DOOR PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003870 Refrigerator 1112539 Gasket Retainer, 1113952 Panel, Interior Door Panel Top & Bottom Door (Includes 2188319 Door Gasket, 1113951 Ladder, Shelf (2) Insulation) Magnetic 1112530 Retainer, Shelf 939101 Screw Anchor (8)

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Models: KSSS36FJX00 (Brushed Aluminum) 4398891...
  • Page 16 FREEZER DOOR PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part DESCRIPTION 2003876 Freezer Door Panel (Includes Insulation) 2004881 Retaining Ring, Door−Closure 2004524 Hinge, Bottom 489282 Screw 2005329 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112538 Gasket Retainer, Top & Bottom 2188317 Door Gasket, Magnetic 486194 Screw (34)
  • Page 17 UPPER UNIT PARTS For Models: KSSS36FJX00 (Brushed Aluminum) 4398891...
  • Page 18 UPPER UNIT PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2003398 Assembly, Unit 2208903 Motor, Fan Following Parts Not Illustrated Base 2190685 Blade, Fan 2163787 Clip, Compressor 2003169 Orifice, Fan and Optional Parts Not Included Mounting (4) 489099 Screw (3) 2183418 Compressor...
  • Page 19 LOWER UNIT AND TUBE PARTS For Models: KSSS36FJX00 (Brushed Aluminum) 4398891...
  • Page 20 LOWER UNIT AND TUBE PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part DESCRIPTION 2006755 Defrost Bi−Metal 1113043 Clamp, Bi−Metal 486194 Screw 2003271 Sleeve 2002171 Sleeve 2002999 Condenser Inlet Tube 2003484 Sleeve 2003015 Tube, Connect (Drier) 2004545 Heater, Drain Pan 1113062 Hanger, Heater 2005908 Shield−Drain, Pan 2002448 Sleeve 2002995 Tube, Discharge...
  • Page 21 AIR FLOW AND RESERVOIR PARTS For Models: KSSS36FJX00 (Brushed Aluminum) 4398891...
  • Page 22 AIR FLOW AND RESERVOIR PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part DESCRIPTION 2003200 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 548263 Bracket (Double) 938224 Bracket (Single) 548268 Grommet 486194 Screw 2003924 Deflector, Air Duct 488500 Screw, Ground 488366 Clamp, Tube 488937 Clamp, Nylon 2001145 Channel, Wiring 1112871 Fastner...

  • Page 23: Icemaker Parts

    ICEMAKER PARTS For Models: KSSS36FJX00 (Brushed Aluminum) 4398891...
  • Page 24 ICEMAKER PARTS For Models: KSSS36FJX00 (Brushed Aluminum) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2203198 Tube, Filter 488937 Clamp Tube 489322 Screw Inlet 2174155 Cover 489276 Screw 841707 Insert, Tube 628228 Mold & Heater 2171593 Shut Off Arm 628379 Clip, Fuse (Also Order 2171952 Bracket...
