KitchenAid KSSS36FMX03 Parts List

KitchenAid KSSS36FMX03 Parts List

Etched aluminum 36" built in refrigerator
Hide thumbs Also See for KSSS36FMX03:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Use and Care Manual, Installation Manual
CABINET PARTS
36" BUILT IN
REFRIGERATOR
For Model: KSSS36FMX03
(Etched Aluminum)
09−06 Litho In U.S.A. (dmm)
Part No. W10115576
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSS36FMX03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSS36FMX03

Summary of Contents for KitchenAid KSSS36FMX03

  • Page 1 CABINET PARTS 36" BUILT IN REFRIGERATOR For Model: KSSS36FMX03 (Etched Aluminum) 09−06 Litho In U.S.A. (dmm) Part No. W10115576...

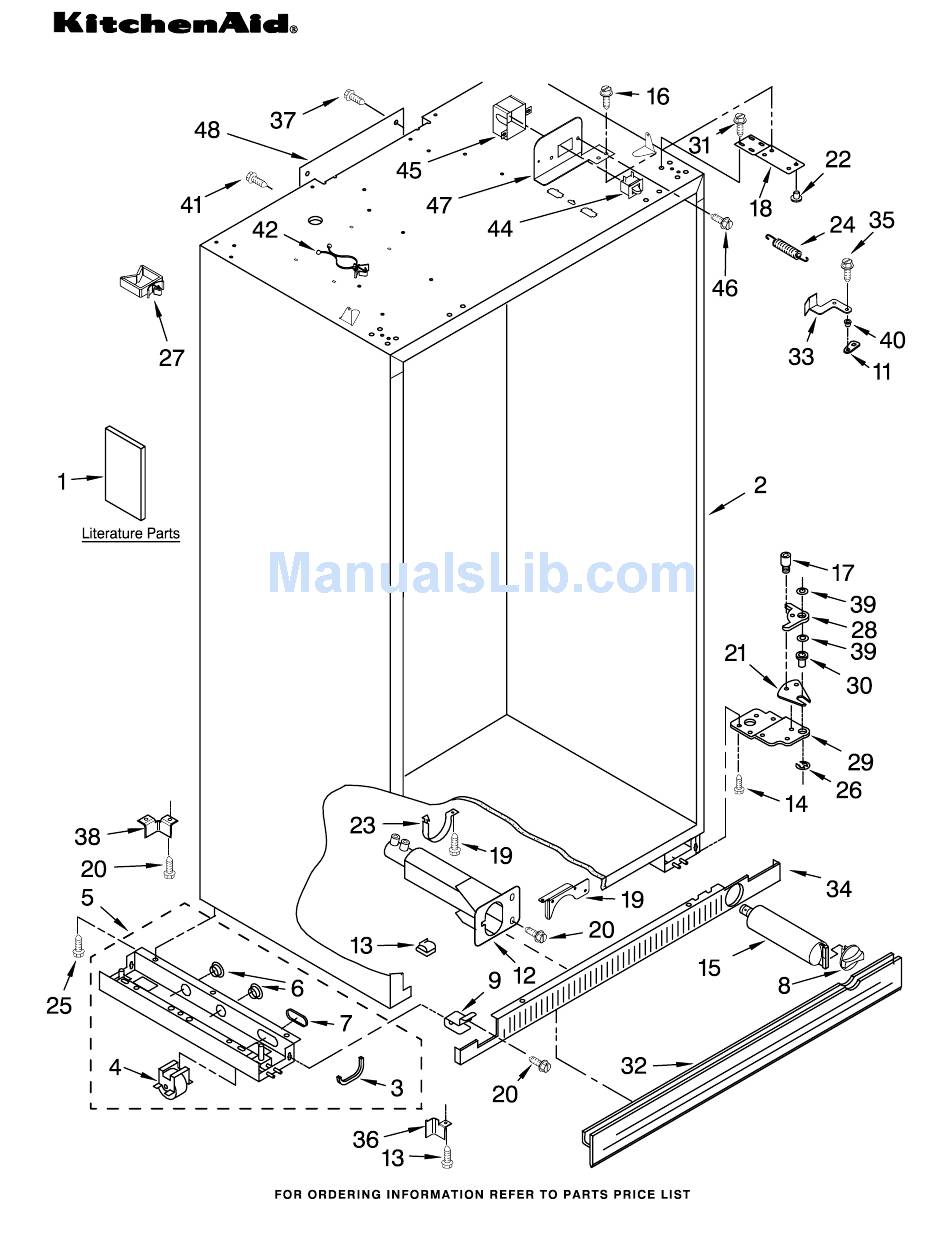

  • Page 2: Cabinet Parts

    2186494B Cap, Water Filter 2006442 Mounting Stud, Grill 2005783 Cam, Door Closer 2209022 Housing, Water Filter 488500 Screw 3400525 Screw CABINET PARTS For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2255709 Filter, Water 489399 Screw 3400230 Screw, Door Stop 2257644 Hinge (Top)
  • Page 3 W10115576 CABINET TRIM PARTS For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552X Etched Aluminum 486194 Screw 1163283 Screw 2316686 Cabinet, Trim (Bottom) 486194 Screw 2313991 Cabinet, Trim Top Cabinet Trim (Left Side) 2222553X Etched Aluminum 2005925 Seal−Trim, Side...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2302867 Shelf, Wire (2) 2266955 Spacer, Ice Door 2302882 Shelf, Fixed (2) 2259081 Basket (2) 2256269 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266933 Door, Ice...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSS36FMX03 (Etched Aluminum) W10115576...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Baffle 2320635 Baffle Control...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS W10115576 For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2302771 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2310197 Control Box Wire Harness 2221121 Support, Control 489006 Screw (2) 2306086 Display Board, Ingredient Care Center...
  • Page 8 Part DESCRIPTION Top Grille Assembly 2257401X Etched Aluminum 2259320 Cover, Unit 487415 Screw 2256466 Panel, Back 2320678 Cover, Unit Front 2215910 Grommet, Flexible 1157158 Screw 2310194 Wire Assembly, RC/FC Light Switch 489348 Clamp, Tube For Model: KSSS36FMX03 (Etched Aluminum) W10115576...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSS36FMX03 (Etched Aluminum) W10115576...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2222591 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin Assembly 2302841 Meat Pan Cover Assembly 2302834 Crisper Cover Assembly 2257581 Trim, Rear Glass 2252411 Crisper Pan (2) Slide, Meat Pan...
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSS36FMX03 (Etched Aluminum) W10115576...
  • Page 12 2255743 Light Bulb (2) 2302777 Seal, Light Socket 2182119 Scroll, Fan Wedge, Air Duct 2259464 Right 2259465 Left 2302925 Bracket, Vent Tube 2306042 Air Duct For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2266801 Deflector, Air Block, Fan Scroll 2209481 Right 2209066 Left...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSS36FMX03 (Etched Aluminum) W10115576...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2252329 Refrigerator Door Panel (Includes Item 9) 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222795 Rail, Utility Lid 2222981 Gasket, Utility 2222810 Door Gasket, Magnetic...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSS36FMX03 (Etched Aluminum) W10115576...
  • Page 16 FREEZER DOOR PARTS For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2252326 Freezer Door Panel (Includes Item 9) 2256381 Spacer, Top Door 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top Top & Bottom 2222813 Door Gasket, Magnetic 2001230 Washer, Nylon...
  • Page 17 UPPER UNIT PARTS For Model: KSSS36FMX03 (Etched Aluminum) W10115576...
  • Page 18 943447 Grommet (4) 2310243 Wire, Jumper 487522 Screw 2155774 Wire Tie 2317982 Drier 2310207 Wire Assy. (Condenser Fan) UPPER UNIT PARTS For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 2206036 Motor, Fan 2190685 Blade, Fan 2003169 Orifice, Fan 2300190 Tube, Transfer...
  • Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSS36FMX03 (Etched Aluminum) W10115576...
  • Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259303 Suction Tube 2259304 Tube, Connect (Drier) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 2259352 Tube, Discharge 2188820 Thermistor 9791833 Clip, Thermistor...

  • Page 21: Icemaker Parts

    ICEMAKER PARTS For Model: KSSS36FMX03 (Etched Aluminum) W10115576...
  • Page 22 2307650 Valve, Solenoid 2320597 Shield, Valve Electrical 489115 Fastener, Snap−In 2310108 Jumper, Fill Tube Heater 2208136 Clamp, Nylon Valve ICEMAKER PARTS For Model: KSSS36FMX03 (Etched Aluminum) Illus. Part DESCRIPTION 488937 Clamp Tube 2310136 Wire Assembly, Icemaker 2257538 Cover 2221070 Clamp, Tube 628228 Mold &...
