Maintenance (continued)
Indexing Teeth I
\
For Use With
Single Line ONLY
Fig. 6-3
For Use with
Membrane or
Single Line
i:
//
Fig. 6-4
Loop

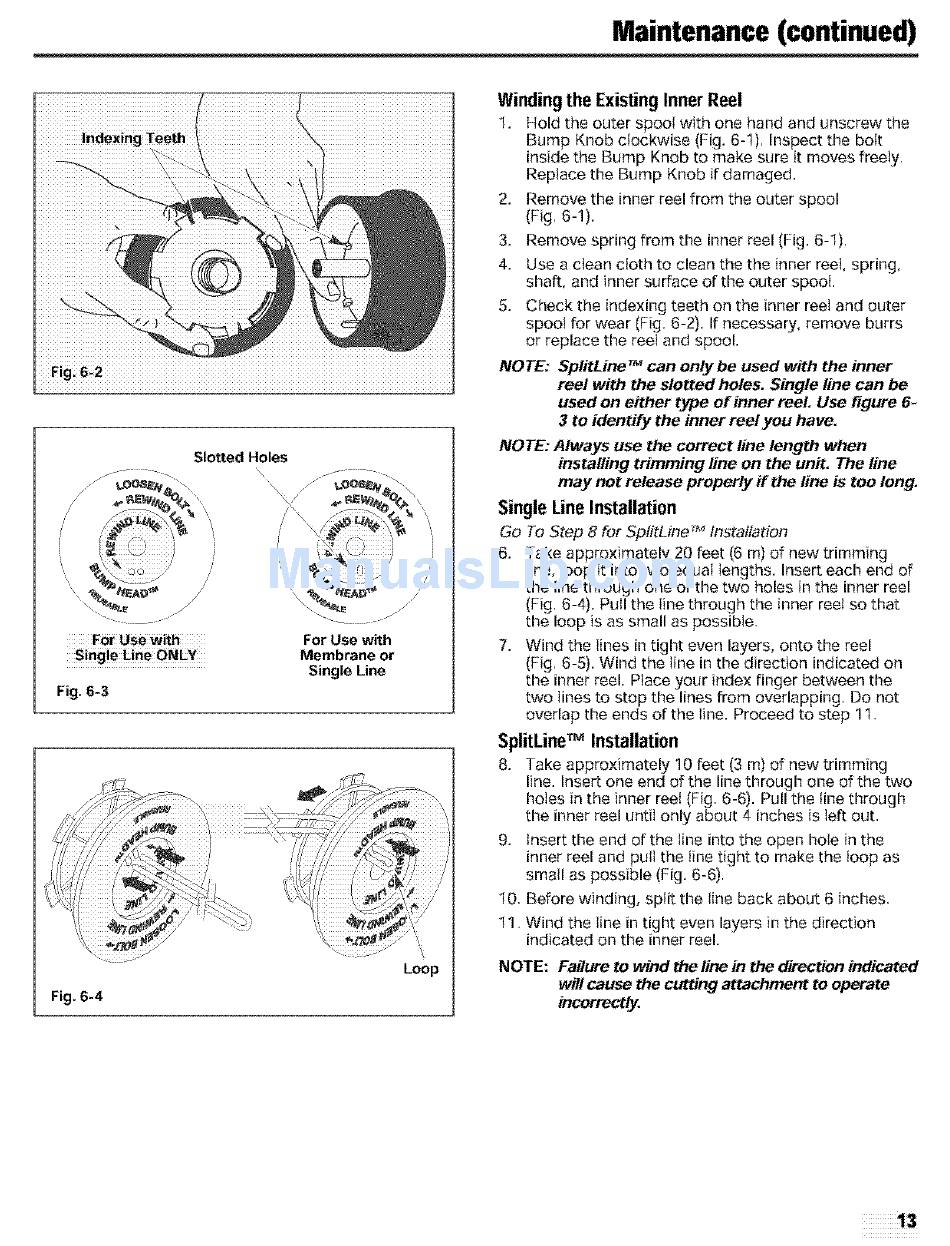

Winding the Existing
Inner Reel
1. Hold the outer spooi with one hand and unscrew the
Bump Knob clockwise (Fig. 6-1). Inspect the bolt
inside the Bump Knob to make sure it moves freety.
Replace the Bump Knob if damaged.
2. Remove the inner reel from the outer spool
(Fig. 6-1).
3. Remove spring from the inner reel (Fig. 6-1).
4. Use a clean cloth to clean the the inner reel, spring,
shaft, and inner surface of the outer spool.
5. Check the indexing teeth on the inner reet and outer
spool for wear (Fig. 6-2). If necessary, remove burB
or replace the feet and spool.
NOTE: Sp/itLine
TM
can only be used with the inner
reel with the slotted holes. Single line can be
used on either type of inner reel. Use figure 6-
3 to identify the inner reelyou have.
NOTE: Always use the correct line length when
installing trimming line on the unit. The line
may not release property if the line is too long.
Single Line Installation
Go To Step 8 for SptitLine _ fnst_llation
6. lake approximately 20 feet (6 m) of new trimming
line, ioop it into two equai tengths. Insert each end of
the line through one of the two holes in the inner reel
(Fig. 6-4). Putl the tine through the inner reel so that
the loop is as small as possible.
7. Wind the tines in tight even layers, onto the reel
(Fig. 6-5). Wind the line in the direction indicated on
the inner reel. Piace your index finger between the
two tines to stop the lines from overlapping. Do not
overlap the ends of the line. Proceed to step 11.
SplitLine
TM
Installation
8. Take approximately 10 feet (3 m) of new trimming
line. Insert one end of the line through one of the two
holes in the inner reet (Fig. 6-6). Pull the line through
the inner reel unfit only about 4 inches is left out.
9. insert the end of the tine into the open hole in the
inner reel and putI the line tight to make the loop as
small as possible (Fig. 6-6).
10. Before winding, split the line back about 6 inches.
11. Wind the tine in tight even layers in the direction
indicated on the inner reel.
NOTE: Failure to wind the line in the direction indicated
will cause the cutting attachment to operate
iecorrect_
