Cub Cadet CC 3000 Operator's Manual

C-cycle trimmer
Hide thumbs Also See for CC 3000:
Table of Contents

Advertisement

Quick Links

Download this manual See also: Operator's Manual

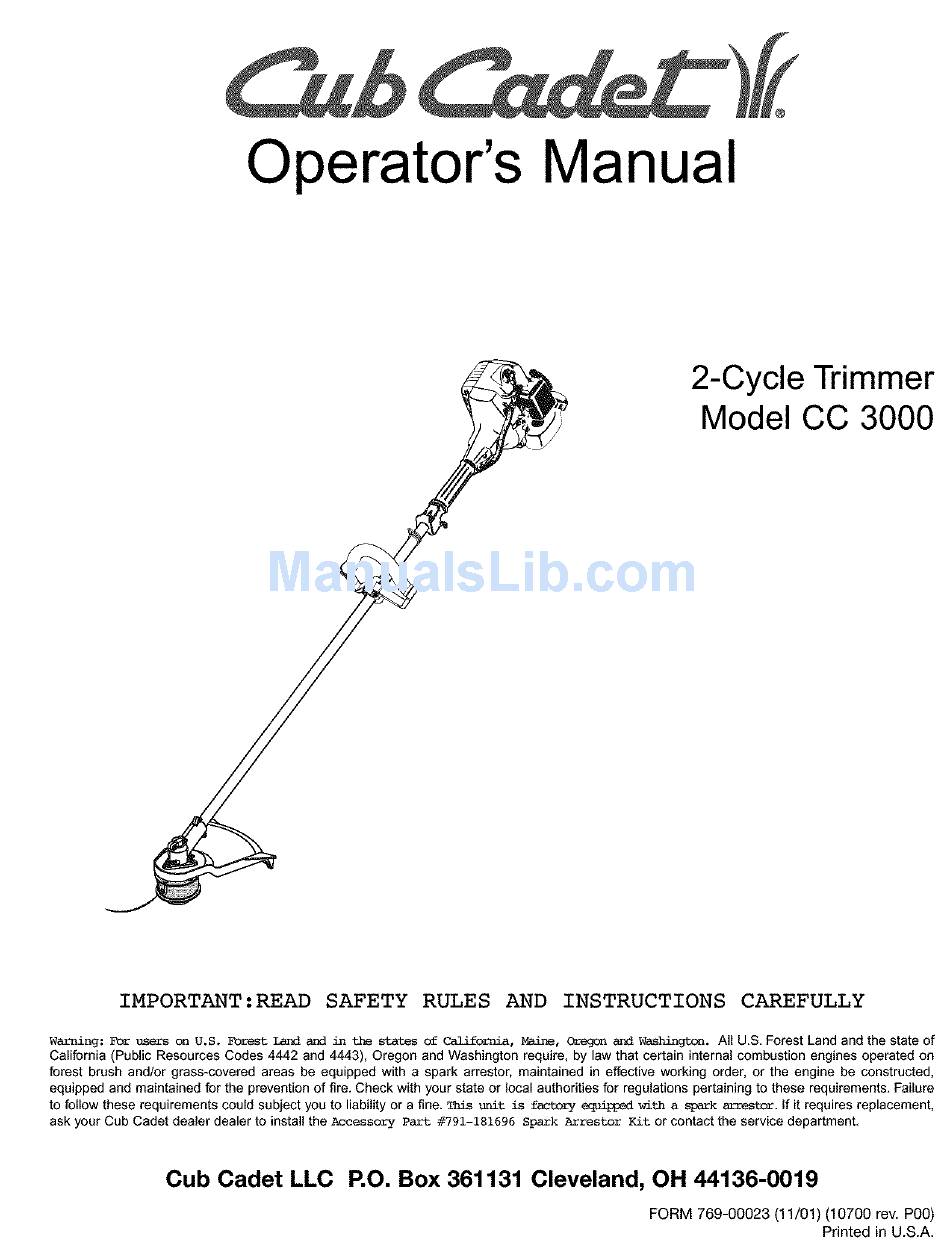

Operator's Manual
2-Cycle Trimmer
Model CC 3000
IMPORTANT:READ
SAFETY
RULES
AND
INSTRUCTIONS
CAREFULLY
warning:
FOr users on U.S. FOrest Land and in the states of Callfornis,
Maine, Oreqon and Washington.
A]l U.S Forest Land and the state of
California (Public Resources
Codes 4442 and 4443), Oregon and Washington
require, by law that certain internal combustion
engines operated
on
forest brush and/or grass-covered
areas be equipped with a spark arrestor, maintained
in effective working order, or the engine be constructed,
equipped and maintained
for the prevention of fire. Check with your state or local authorities
for regulations
pertaining to these requirements.
Failure
to follow these requirements
could subject you to liability or a fine. This unit
is factory
egzlpped with
a spark arrestor
If it requires replacement,
ask your Cub Cadet dealer dealer to install the Accessory
Part
#791-181696
Spark Arrestor
Kit
or contact the service department.
Cub Cadet LLC P.O. Box 361131 Cleveland, OH 44136-0019
FORM
769-00023
(11/01)
(10700
rev. POO)
Printed
in U.S.A.

Advertisement

Table of Contents
loading

Related Manuals for Cub Cadet CC 3000

Summary of Contents for Cub Cadet CC 3000

  • Page 1 This unit is factory egzlpped with a spark arrestor If it requires replacement, ask your Cub Cadet dealer dealer to install the Accessory Part #791-181696 Spark Arrestor or contact the service department.

  • Page 2: Table Of Contents

    FINDING MODEL NUMBER Before you start assembling your new equipment, please locate the model plate on the equipment and copy the information from it in the space provided below. This information is important if you need help from your cub Cadet dealer.

  • Page 3: Section 1: Salty

    Section 1 Safety The purpose of safety symbols is to attract your attention to possible dangers. The safety symbols, and their explanations, deserve your careful attention Failure to obey a safety warning will result in and understanding. The safety warnings do not by serious injury to yourself or to others.
  • Page 4 Safety (continued) • Always stop the engine and allow it to cool before • Always hold the unit with both hands when filling the fuel tank. Never remove the cap of the fuel operating. Keep a firm grip on both the front and rear tank, or add fuel, when the engine is hot.
  • Page 5 Safety (continued) SAFETY AND INTERNATIONAL SYMBOLS This operator's manual describes safety and international symbols and pictographs that may appear on this product. Read the operator's manual for complete safety, assembly, operating and maintenance and repair information. SYMBOL MEANING Indicates danger, warning, or caution. May be used in conjunction with other •...
  • Page 6 Safety (continued) SYMBOL MEANING • SHARP BLADE WARNING: Sharp blade on cutting attachment shield. To prevent serious injury, do not touch line cutting blade. • CHOKE CONTROL A • START position. B • RUN position. WARNING: The operation of any power tool can cause foreign objects to be thrown into your eyes.

  • Page 7: Knowyourunit

    Section 2 KnowYourUnit APPLICATIONS With the optional brushcutter accessory kit; As a trimmer; • Cutting weeds and light bush of up to 1/2 inch in diameter. • Cutting grass and weeds. • Edging • Decorative trimming around trees, fences, etc. Spark Plug _Starter Rope Grip...

  • Page 8: Assembly

    Section 3 Assembly On some units, the D-handle may be preinstalled and Shaft Grip (4) Screws_ only require loosening the screws and adjusting the D-handle to the operator. Go to step 4 for adjusting the Shaft D-handle if preinstalled. Housing INSTALLING AND ADJUSTING THE D-HANDLE...

  • Page 9: Oil And Fuel

    NOTE: One gallon (3.8 liters) of unleaded gasoline Old and/or improperly mixed fuel are the main mixed with one 4 oz. (118 ml) bottle of Cub Cadet reasons for the unit not running properly. Be sure to 2-CYCLE OIL makes a 32:1 fuel/oil ratio.

  • Page 10: Operation

    Section 5 Operation Avoid accidental starting. Be in the starting Start/ position whenever pulling the starting rope. To On (I) avoid serious personal injury, the operator unit must be in a stable position while starting. STARTING INSTRUCTIONS Stop/ Mix gas with oil. Fill fuel tank with fuel/oil mixture. Off (O) See Section 4, Oil and Fuel.
  • Page 11 Operation (continued) NOTE: Always keep the trimming line fully extended. Line release becomes mere difficult as cutting line becomes shorter. Each time the head is bumped, about 1 inch (25.4 mm) of trimming line is released. A blade in the cutting attachment shield will cut the line to the proper length if excess line is released.

  • Page 12: Maintenance

    Operation(continued) DECORATIVE TRIMMING Decorative trimming is accomplished by removing all vegetation around trees, posts, fences, etc. Rotate the whole unit so that the cutting attachment at a 30 ° angle to the ground (Fig. 5-6). Fig. 5-6 Section 6 MAINTENANCE NOTE: Some maintenance procedures may require special tools or skills.
  • Page 13 Maintenance (continued) LINE INSTALLATION This section covers both Membrane line and standard single line installation. Always use manufacturer's 0.105 inch (2.67 mm) replacement line. Line other than specified may make the engine overheat or fail. Spring _ Inner Reel _ Never use metal-reinforced line, wire, chain, or Bolt...
  • Page 14 Maintenance (continued) Membrane Line Installation Take approximately 15 feet (4.6 m) of new trimming line. Insert one end of the line through one of the two holes in the inner reel (Fig. 6-6). Pull the line through the inner reel until only about 4 inches is left out.
  • Page 15 Maintenance (continued) AIR FILTER MAINTENANCE Cleaning the Air Filter Carburetor/Air Filter Cover To avoid serious personal injury, always turn your trimmer off and allow it to cool before you clean or do any maintenance on it. Clean and re-oil the air filter every 10 hours of operation, it is an important item to maintain.
  • Page 16 Maintenance (continued) Adjust Idle Speed Screw Use a needlenose pliers to grasp the collar of the spark arrestor and pull it out of the muffler (Fig. 6-13). NOTE: Use only a needlenose pliers. Other pliers or tools may damage the spark arrestor. The cutting attachment may be spinning during Clean the spark arrestor with a wire brush.
  • Page 17 • Drain the gas tank before transporting. ShoulderHarness ......791-682075 • Tighten gas cap before transporting. Tip-and-Pour 2-Cycle 0il (16 oz.) ....791-180965 These replacement parts can be purchased at the retailer from which you bought your trimmer, or your local Cub Cadet dealer.

  • Page 18: Troubleshooting

    Section 7 Troubleshooting CAUSE ACTION On/Off Stop Control is in STOP position Turn On/Off Stop Control to START Empty fuel tank Fill fuel tank with properly mixed fuel Primer bulb wasn't pressed enough Press primer bulb fully and slowly 5-7 times Engine flooded Use starting procedure with choke lever in the RUN position, Pg.

  • Page 19: Specifications

    Section 8 Specifications Engine Type ..............Air-Cooled, 2-Cycle Displacement ..............1.4 cu. in. (25cc) Clutch Type ................Centrifugal Idle Speed RPM ..............2,400-3,600 rpm Operating RPM (Trimmer) ............7,000-8,600 rpm Ignition Type ................Electronic On/Off Stop Control ..............Toggle Switch Lubrication ................

  • Page 20: Warranty

    MANUFACTURER'S LIMITED WARRANTY FOR: Cj bC de )f(. The limited warranty set forth below is given by Cub Cadet Cub Cadet LLC reserves the right to change or improve LLC with respect to new merchandise purchased and the design of any Cub Cadet Product without assuming used in the United States, its possessions and territories.
