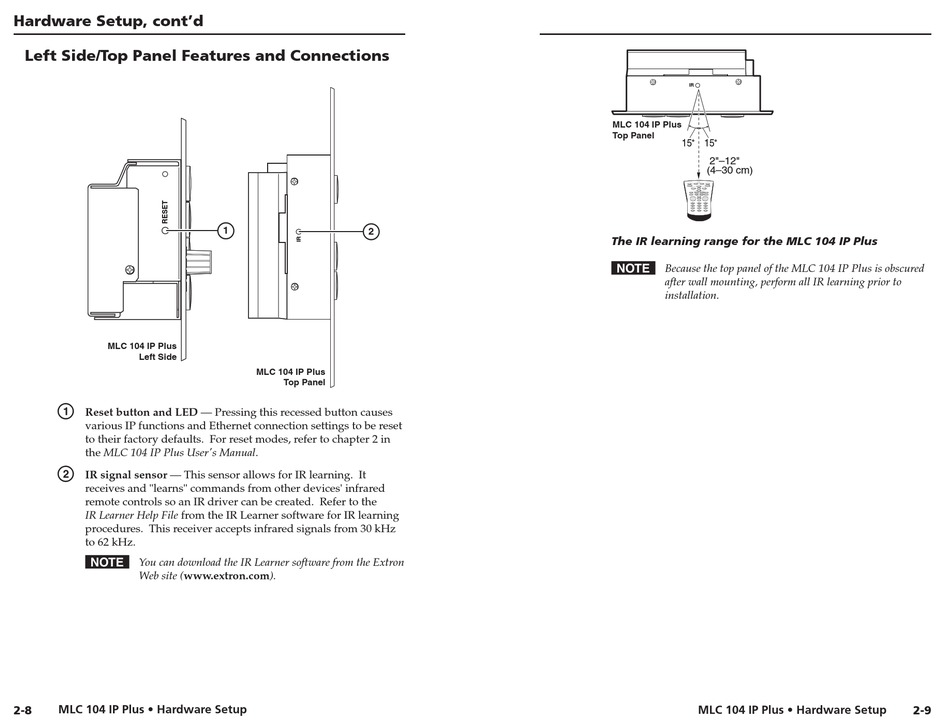

Hardware Setup, cont'd
Left Sde/Top Panel Features and Connectons
MLC 104 IP Plus
Left Side
a
Reset button and LED — Pressing this recessed button causes
various IP functions and Ethernet connection settings to be reset
to their factory defaults. For reset modes, refer to chapter 2 in
the MLC 104 IP Plus User's Manual.
b
IR signal sensor — This sensor allows for IR learning. It
receives and "learns" commands from other devices' infrared
remote controls so an IR driver can be created. Refer to the
IR Learner Help File from the IR Learner software for IR learning
procedures. This receiver accepts infrared signals from 30 kHz
to 62 kHz.
N
You can download the IR Learner software from the Extron
Web site (www.extron.com).
MLC 104 IP Plus • Hardware Setup
2-8
1
2
MLC 104 IP Plus
Top Panel
IR
MLC 104 IP Plus
Top Panel
2"–12"
(4–30 cm)
1 2 3
4 5 6
7 8 9
0
The IR learning range for the MLC 104 IP Plus
N
Because the top panel of the MLC 104 IP Plus is obscured
after wall mounting, perform all IR learning prior to
installation.
