KitchenAid KSSO42FTX03 Parts List

KitchenAid KSSO42FTX03 Parts List

Etched aluminum 42" built in refrigerator
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
CABINET PARTS
42" BUILT IN
REFRIGERATOR
For Model: KSSO42FTX03
(Etched Aluminum)
02−09 Litho In U.S.A. (jdc)(bay)
1
Part No. W10258578 Rev. A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the KSSO42FTX03 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for KitchenAid KSSO42FTX03

Summary of Contents for KitchenAid KSSO42FTX03

  • Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSO42FTX03 (Etched Aluminum) 02−09 Litho In U.S.A. (jdc)(bay) Part No. W10258578 Rev. A...

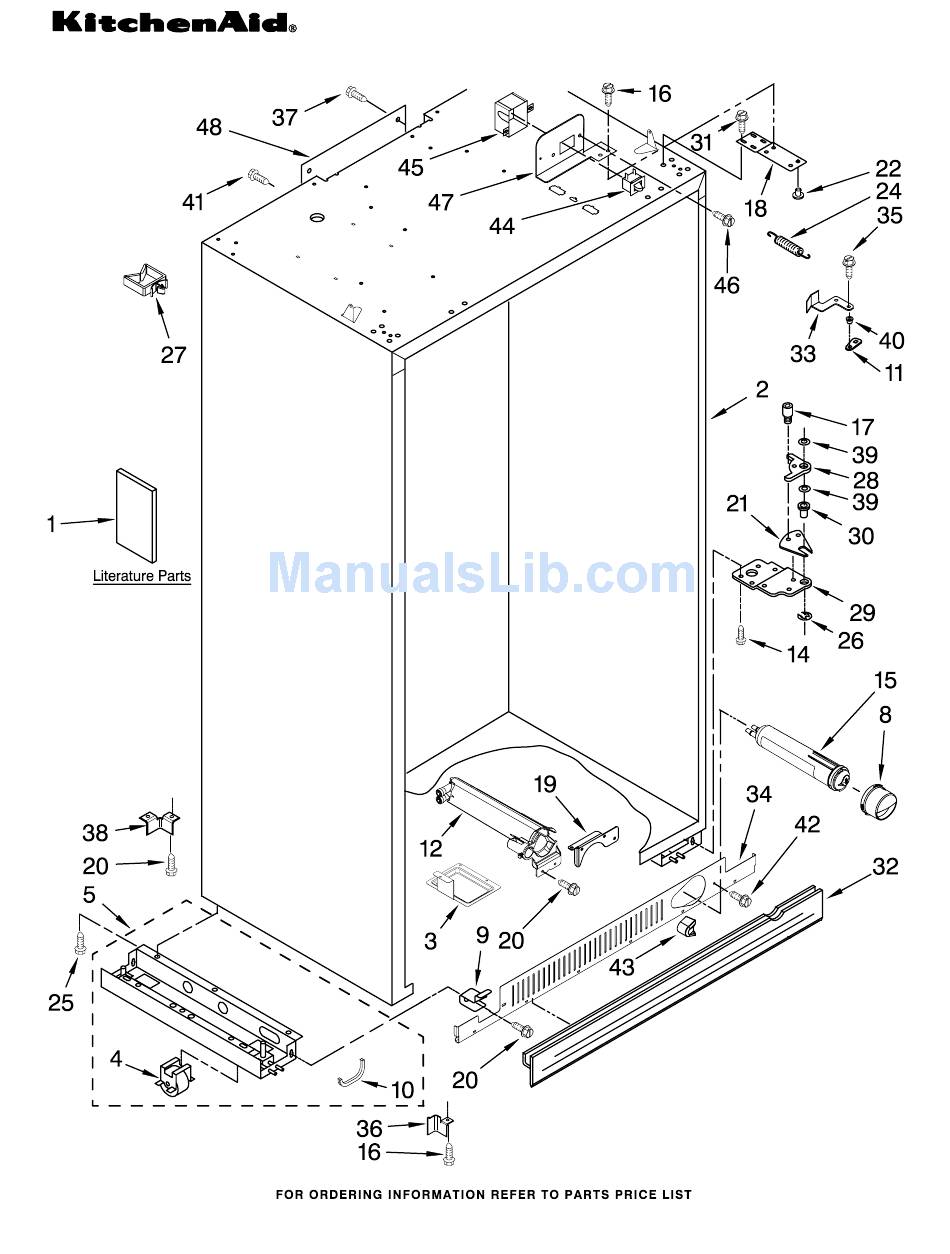

  • Page 2: Cabinet Parts

    2307640 Mounting Stud, Grille 2307584 Grommet, Crossover Tube 2005783 Cam, Door Closer 12 W10121140 Housing, Water Filter 3400525 Screw 4396841 Filter, Water CABINET PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION 489399 Screw 3400230 Screw, Door Stop Hinge (Top)
  • Page 3 W10258578 CABINET TRIM PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION 1 W10132411 Cabinet, Trim (Right Side) 1163283 Screw 2316687 Cabinet, Trim (Bottom) 486194 Screw 2313961S Cabinet, Trim Top 6 W10132416 Cabinet Trim (Left Side) 7 W10121451 Nutsert (4) 2005925 Seal−Trim, Side...

  • Page 4: Freezer Shelf Parts

    FREEZER SHELF PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION 2302868 Wire, Shelf (2) 2302871 Cover, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw 2266934 Door, Ice...

  • Page 5: Refrigerator Liner Parts

    REFRIGERATOR LINER PARTS For Model: KSSO42FTX03 (Etched Aluminum) W10258578...
  • Page 6 REFRIGERATOR LINER PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 4 W10159487 Diverter, Crisper Cover 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor...

  • Page 7: Control Panel Parts

    CONTROL PANEL PARTS W10258578 For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION 2307586 Control Box Assy 2310164 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Light 487539 Screw 2317000 Clip, Control Box 2306086 Display Board, Ingredient Care Center 2223857 Socket, Light...
  • Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part 2313978S Panel, Decorative 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10121229 Cover, Unit Front 487415 Screw 7 W10167456 Wire Assembly 489348 Clamp 2003347 Tee Bolt...

  • Page 9: Refrigerator Shelf Parts

    REFRIGERATOR SHELF PARTS For Model: KSSO42FTX03 (Etched Aluminum) W10258578...
  • Page 10 REFRIGERATOR SHELF PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION 2222592 Shelf Assy (4) 2256250 Trim, Glass Side Meat Pan 2179404 Rack, Wine 2302842 Meat Pan Cover Assembly 2302835 Crisper Cover Assembly 2257582 Trim, Glass Rear 2252412 Crisper Pan (2)
  • Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO42FTX03 (Etched Aluminum) W10258578...
  • Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSO42FTX03 Illus. Part 2259385 Fan Motor 2169142 Fan Blade 2223733 Retainer, 2302817 Gasket, Cover 2223986 Grommet 486194 Screw 2259464 Wedge, Air Duct 488500 Screw, Ground 2223857 Socket, Light (2) 488937 Clamp, Nylon...

  • Page 13: Refrigerator Door Parts

    REFRIGERATOR DOOR PARTS For Model: KSSO42FTX03 (Etched Aluminum) W10258578...
  • Page 14 REFRIGERATOR DOOR PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION 1 W10193490 Refrigerator Door (Includes #8) 2252295 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2252293 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gasket, Utility 2222811 Door Gasket,...

  • Page 15: Freezer Door Parts

    FREEZER DOOR PARTS For Model: KSSO42FTX03 (Etched Aluminum) W10258578...
  • Page 16 FREEZER DOOR PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION 1 W10193486 Freezer Door (Includes #6) 2252294 Hinge, Bottom 489282 Screw 2252295 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222814 Door Gasket, Magnetic 2309497S Trim−Door, (Handle Side) 2207457 Trim, Corner...
  • Page 17 UPPER UNIT PARTS For Model: KSSO42FTX03 (Etched Aluminum) W10258578...
  • Page 18 11 W10219462 Control Board 2203075 Spacer (5) 2256328 Bracket, Inverter 2317031 Bracket, Vibration Condenser 1157158 Screw 2307998 Condenser 2309431 Grommet (4) UPPER UNIT PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION 2317030 Arm, Vibration Condenser 489464 Screw 2155774 Wire Tie...
  • Page 19 LOWER UNIT AND TUBE PARTS For Model: KSSO42FTX03 (Etched Aluminum) W10258578...
  • Page 20 LOWER UNIT AND TUBE PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION 486194 Screw 2 W10157752 Bracket 2309076 Suction Tube 2309070 Tube, Connect (Drier/Restrictor) 5 W10196999 Drain Pan Assembly 6 W10151288 Cover, Wiring 7 W10153595 Cover, Box 8 W10121371 Tube, Discharge...

  • Page 21: Icemaker Parts

    ICEMAKER PARTS For Model: KSSO42FTX03 (Etched Aluminum) W10258578...
  • Page 22 489115 Fastener, Snap−In 2221070 Clamp, Tube 2310108 Jumper, Fill Tube Heater 2320559 Support, Valve 2305274 Clamp, Nylon Valve ICEMAKER PARTS For Model: KSSO42FTX03 (Etched Aluminum) Illus. Part DESCRIPTION 488937 Clamp Tube 2221240 Heater, Fill Tube 2257538 Cover 2313990 Shut Off Arm 20 W10122527 Mold &...
