- Page 1 CABINET PARTS 42" BUILT IN For Model: KSSC42QKS00 REFRIGERATOR (Stainless Steel) 5−03 Litho In U.S.A. (rcg) Part No. 8197658...
-

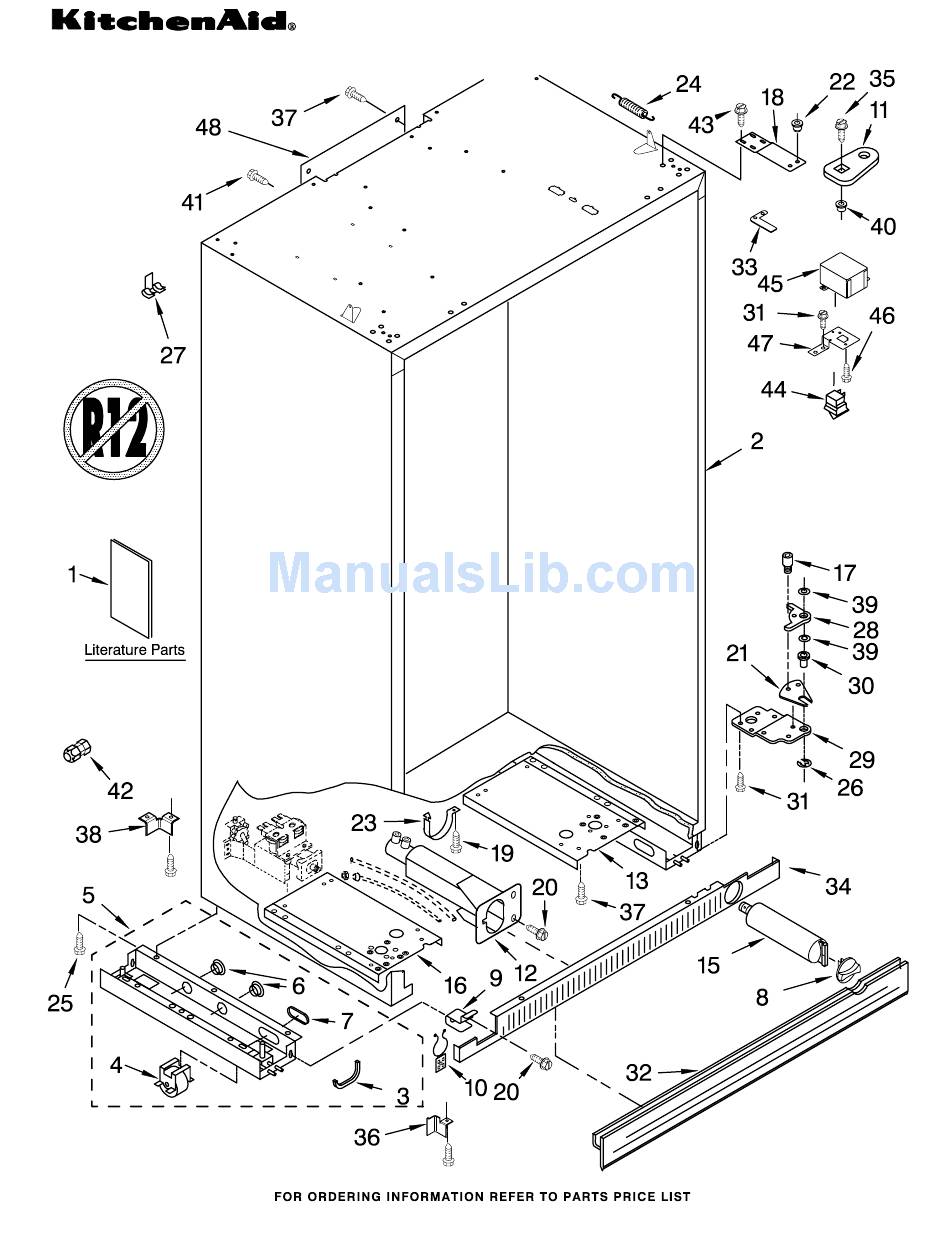

Page 2: Cabinet Parts
CABINET PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 2006806 Support, Bottom 8201584 Extension Arm, LIT2215850 Use & Care Guide (Right Side) Door Closer LIT2221056 Energy Label 2203220 Filter, Water 2209428B Grille Bottom, LIT2221021 Service &... - Page 3 CABINET TRIM PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 2215919S Cabinet, Trim (Right Side) 2003857 Screw 8281250 Screw 2209074 Cabinet, Trim (Bottom) 486194 Screw 2003646 Cabinet, Trim Top 2215936S Cabinet Trim (Left Side) 2005925 Seal−Trim, Side 489464 Screw 8197658...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 2220890 Solid Shelf 2220847 Front, Ice Compartment 1113637 Shelf, Fixed (2) 1113565 Shelf, Deep 2208194 Basket 2220844 Trim, Basket Slide, Basket 2208198 Right Side 2208197 Left Side 486194 Screw 8197658... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC42QKS00 (Stainless Steel) 8197658... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2208970 Air Duct 2209204 Clip, Thermistor 2208975 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 488357 Screw 486194 Screw 1112257 Hole Plug 2220888 Meat Pan, Air Duct Cover 2000337 Meat Pan, Air Duct 2220993 Release Valve...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 2215716 Control Box 2215670 Insert, Control 2209159 Circuit Board, Housing Control 2215941 Control Box Wire Harness 2003841 Retainer, Knob 2162085 Socket, Light 2160708 Light Bulb (2) 486194 Screw 2221066 Overlay 1115375 Clip, Wiring (3) 8197658... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 2215953S Panel, Decorator 2209490 Cover, Unit 486194 Screw 2215830 Back Panel 2209492 Guard, Wiring 2005292 Nameplate 8201530 Baffle−Air, Condenser 2004333 Nut 2005483 Bracket, Louver 2215934S Grille, Louver 488879 Screw 304392 Screw 2220808 Wire Assembly,...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC42QKS00 (Stainless Steel) 8197658... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 2174403 Frame, Shelf 2003376 Glass, Shelf 1113547 Reflector, Shelf 1113791 Gasket, Glass (2) 2179404 Rack, Wine 2216625 Egg Bin 2006524 Frame, Assembly Meat Pan 1113894 Cover, Crisper 2003379 Glass, Crisper (Includes #9) 2000742 Meat Pan, Connector...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC42QKS00 (Stainless Steel) 8197658...
- Page 12 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 2208939 Fan Motor 2002732 Cup, Clearance 2169142 Fan Blade 2155590 Retainer, Fan Motor 2155789 Gasket, Cover 2208968 Grommet 486194 Screw 2003925 Deflector, Air Duct 488500 Screw, Ground 2162085 Socket, Light (2) 488937 Clamp, Nylon 2160708 Light Bulb (2)
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSSC42QKS00 (Stainless Steel) 8197658... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 2003940 Bracket, Motor 2155263 Motor, Dispenser 2003979 Soleniod Assembly 2149100 Guide, Solenoid Slide, Container 2002720 Right Side 2002721 Left Side 1113169 Stop, Roller 2209120 Wiring Assembly, Ice Dispenser 489399 Screw 2205716 Coupling, Motor 489478 Screw...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC42QKS00 (Stainless Steel) 8197658... - Page 16 REFRIGERATOR DOOR PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 2215988 Refrigerator Door Panel (Includes Insulation) 2220922 Hinge Assembly, 2004520 Spacer−Door, 489282 Screw 2220809 Hinge Assembly, Bottom 1112533 Gasket Retainer, Side (2) 1112541 Gasket Retainer, Top & Bottom 2188498 Door Gasket, Magnetic 2006772 Door Skin 2005290 Handle, Door...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC42QKS00 (Stainless Steel) 8197658... - Page 18 FREEZER DOOR PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 2215658B Freezer Door Panel (Includes Insulation) 2004447 Door Brace, Corner 2215588 Door Skin 2215696 Filler, Door 2220810 Hinge, Bottom 489282 Screw 2220922 Hinge, Top 2004520 Spacer−Door, 1112533 Gasket Retainer, Side (2) 1112540 Gasket Retainer, Top &...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSSC42QKS00 (Stainless Steel) 8197658... - Page 20 DISPENSER AND FRONT PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 2195051 Strain Relief 2202585 Wire Harness Cover, Dispenser (Not Serviced) 2180209 Spring, Torsion 2196195 Pin 2206423 Ice Door Mechanism 2180352 Door, Ice 489000 Screw 2180261 Lever, Ice Dispenser 2180236 Switch Assembly...
- Page 21 UPPER UNIT PARTS For Model: KSSC42QKS00 (Stainless Steel) 8197658...
- Page 22 UPPER UNIT PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION 2209324 Inverter Box 943447 Grommet (4) 489373 Screw, Compressor 2221009 Wire, Jumper Following Parts Not Illustrated Mounting (4) 487522 Screw and Optional Parts Not Included 2208937 Compressor 851095 Wire Tie (2) (Includes Items...
- Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSC42QKS00 (Stainless Steel) 8197658...
- Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 2196155 Defrost Bi−Metal 2209119 Wire Harness 486194 Screw 2215508 Bracket 2209067 Side Support 2209035 Suction Tube 2209454 Tube, Connect (Drier) 2209451 Heater, Drain Pan 2209450 Hanger, Heater 2005908 Shield, Drain Pan 2002448 Sleeve 2209036 Tube, Discharge...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Model: KSSC42QKS00 (Stainless Steel) 8197658... - Page 26 ICEMAKER PARTS For Model: KSSC42QKS00 (Stainless Steel) Illus. Part DESCRIPTION 841707 Insert, Tube 628379 Clip, Fuse 2214613 Tube, Filter Inlet 2208933 Water Inlet Tube Assembly 1106508 Seal Gasket 2209430 Tube, Filter Outlet 2006766 Valve, Solenoid 627018 Nut, Compression 227991 Connector, Wire 2209072 Water Valve, Harness 1129177 Insert, Tube...
