- Page 1 CABINET PARTS 42" BUILT IN For Model: KSSC42QMS03 REFRIGERATOR (Stainless Steel) 10−06 Litho In U.S.A. (dmm) Part No. W10114883...
-
Page 2: Cabinet Parts

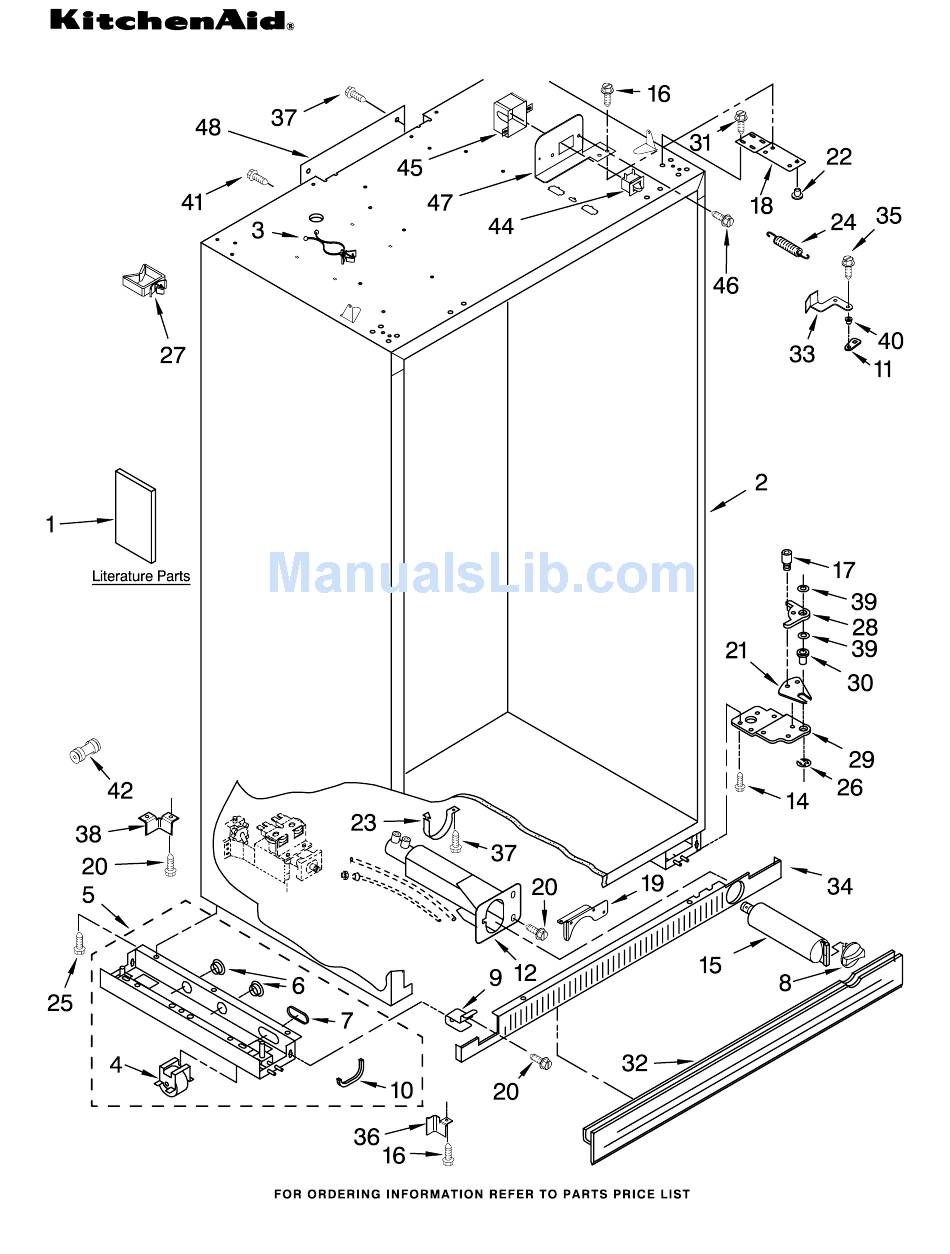

2005006 Grommet, Wiring 2005007 Grommet, Flexible Cap, Water Filter 2186494B Black 2006442 Mounting Stud, Grill 2005004 Grommet, Crossover Tube CABINET PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2005783 Cam, Door Closer 2209022 Housing, Water Filter 3400525 Screw 2255709 Filter, Water... - Page 3 W10114883 CABINET TRIM PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) 2222552S Stainless Steel Screw 1163283 Stainless Steel 2316687 Cabinet, Trim (Bottom) 486194 Screw 2313992 Cabinet, Trim Top Cabinet Trim (Left Side) 2222553S Stainless Steel 2005925 Seal−Trim, Side...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2302868 Wire, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10114883... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC42QMS03 (Stainless Steel) W10114883... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2209204 Clip, Thermistor 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS W10114883 For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2302772 Control Box 2303938 Insert, Control 2302913 Circuit Board, Housing Control 2310197 Control Box Wire Harness 2221121 Support, Control 489006 Screw (2) 2306086 Display, Ingredient Care Center 2162085 Socket, Light... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part 2257411S Stainless Steel 2259320 Cover, Unit 486194 Screw 2256466 Back Panel 2320678 Cover, Unit Front 487415 Screw 2310194 Wire Assembly 2005292 Badge, Kitchen Aid 489348 Clamp 2004333 Nut...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC42QMS03 (Stainless Steel) W10114883... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2179404 Rack, Wine 2221071 Egg Bin 2302842 Assembly, Meat Pan Cover 2302835 Assembly, Crisper Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC42QMS03 (Stainless Steel) W10114883...
- Page 12 2182120 Scroll, Fan 2259465 Wedge, Air Duct 2302925 Bracket, Vent Tube 2306046 Air Duct 2198643 Lens Block, Fan Scroll 2209480 Right 2209066 Left For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2215650 Cover, Emitter Liner (Not A Serviceable Part) 2302932 Tube, Vent...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSSC42QMS03 (Stainless Steel) W10114883... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part 2222965 Ice Bin 2222964 Crusher Bin 2258222 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2255460 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC42QMS03 (Stainless Steel) W10114883... - Page 16 REFRIGERATOR DOOR PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2252330 Refrigerator Door Panel (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2256381 Spacer−Door, 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gaasket, Utility 2222811 Door Gasket,...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC42QMS03 (Stainless Steel) W10114883... - Page 18 FREEZER DOOR PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION Freezer Door Panel (Includes Item #14) 2320571B Black 2304896 Saftey Barrier 2252354 Spacer 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2256381 Spacer−Door, 2222814 Door Gasket, Magnetic Handle, Door 2005290 Stainless Steel Spacer, Door−Skin...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSSC42QMS03 (Stainless Steel) W10114883... - Page 20 2304355 Ice Door Mechanism 2180353 Door, Ice 489000 Screw Lever, Ice Dispenser 2259396B Black Switch Assembly (Not Available Order Item 25) For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION Lever, Water Dispenser 2259395B Black 2194719 Spring, Lever 2205686 Delay Mechanism...
- Page 21 UPPER UNIT PARTS For Model: KSSC42QMS03 (Stainless Steel) W10114883...
- Page 22 2256328 Bracket, Inverter 8281149 Screw 1157158 Screw 2259307 Condenser 943447 Grommet (4) 2310243 Wire, Jumper 487522 Screw 2155774 Wire Tie UPPER UNIT PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION 2317982 Drier 2310207 Wire Assembly (Condenser Fan) 2206036 Motor, Fan...
- Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSC42QMS03 (Stainless Steel) W10114883...
- Page 24 LOWER UNIT AND TUBE PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION 486194 Screw 2215508 Bracket 2259303 Suction Tube 2259304 Tube, Connect (Drier/Restrictor) 2320615 Drain Pan Assy. 2316683 Cover, Wiring 2316684 Cover, Box 2259353 Tube, Discharge 2188820 Thermistor 9791833 Clip...
-
Page 25: Icemaker Parts
ICEMAKER PARTS For Model: KSSC42QMS03 (Stainless Steel) W10114883... - Page 26 2198641 Bracket, Icemaker Cover 2208136 Clamp, Nylon Valve 488946 Clamp Tube 2259417 Tube, Water Inlet 2257538 Cover 488500 Screw ICEMAKER PARTS For Model: KSSC42QMS03 (Stainless Steel) Illus. Part DESCRIPTION 628228 Mold & Heater (Also Order 542638 Silicone Grease) Motor, (Not...
