- Page 1 CABINET PARTS 42" BUILT IN REFRIGERATOR For Model: KSSC42QTS03 (Stainless Steel) 08−08 Litho In U.S.A. (mjb)(bay) Part No. W10221113 Rev. A...
-
Page 2: Cabinet Parts

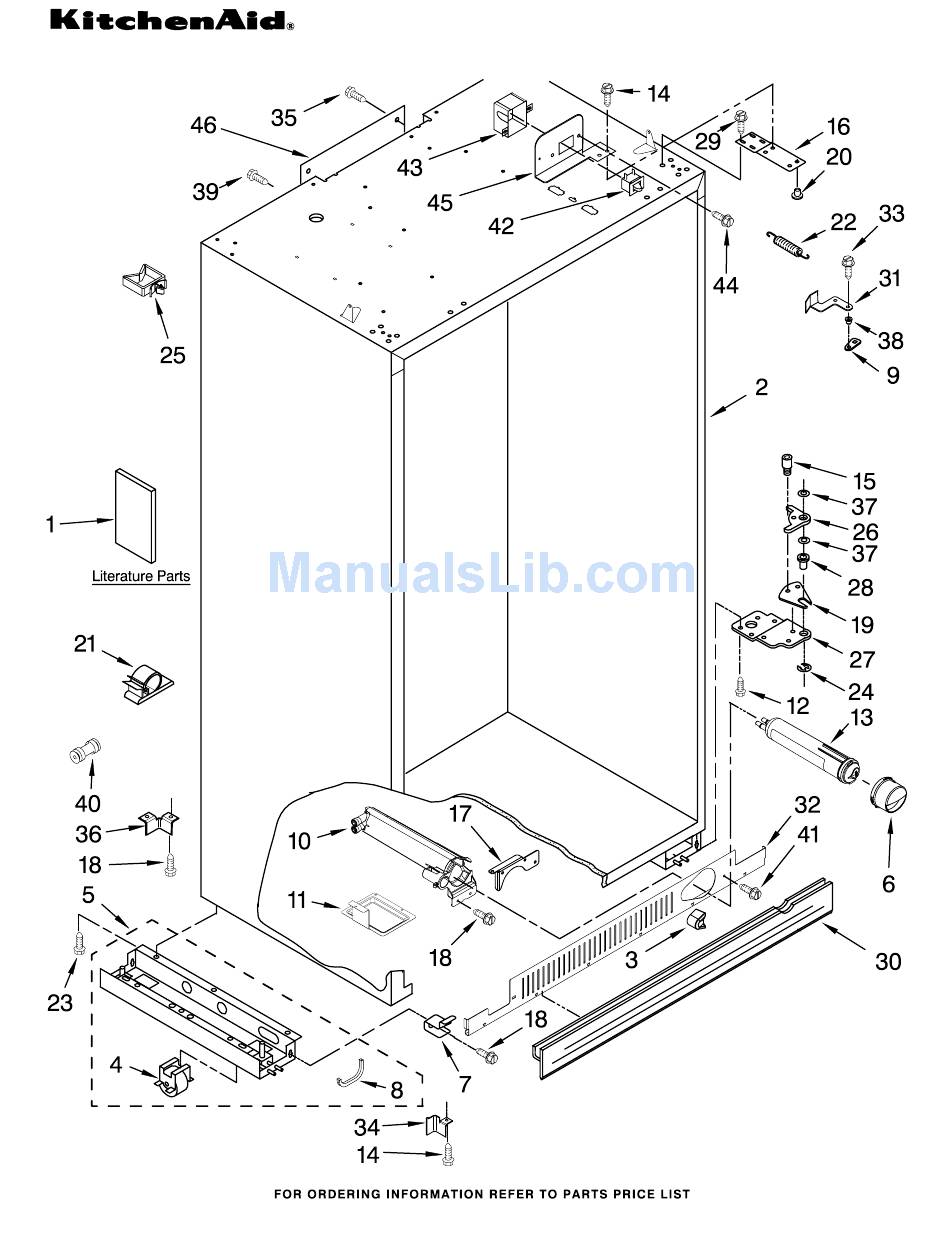

2307640 Mounting Stud, Grille 2307584 Grommet, Crossover Tube 2005783 Cam, Door Closer 10 W10121140 Housing, Water Filter 2318189 Tray, Drip Filter CABINET PARTS For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION 3400525 Screw 4396841 Filter, Water 489399 Screw 3400230 Screw, Door Stop... - Page 3 W10221113 CABINET TRIM PARTS For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION Cabinet, Trim (Right Side) W10132472 Stainless Steel Screw 1163283 Stainless Steel 2316687 Cabinet, Trim (Bottom) 486194 Screw 2314017 Cabinet, Trim Top Cabinet Trim (Left Side) W10132541 Stainless Steel 7 W10121451 Nutsert (4) 2005925 Seal−Trim, Side...
-
Page 4: Freezer Shelf Parts
FREEZER SHELF PARTS For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION 2302868 Wire, Shelf 2302883 Shelf, Fixed (2) 2259082 Basket 2256270 Front, Basket Slide, Basket 2259317 Right Side 2259318 Left Side 8533928 Screw W10221113... -
Page 5: Refrigerator Liner Parts
REFRIGERATOR LINER PARTS For Model: KSSC42QTS03 (Stainless Steel) W10221113... - Page 6 REFRIGERATOR LINER PARTS For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION Liner (Not A Serviceable Part) 2306010 Thermistor 2208970 Air Duct 2259077 Ladder, Shelf (2) 520965 Screw Support, Ladder (8) 2006475 Screw 487539 Screw 2302937 Thermistor 2302986 Lid, Meat Pan...
-
Page 7: Control Panel Parts
CONTROL PANEL PARTS W10221113 For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION 2316545 Control Box 2317000 Clip, Box 2310390 Wire, Jumper 2307592 Bracket, Control Box 2307595 Shield, Control Box 487539 Screw (2) 2306086 Display, Ingredient Care Center 2223857 Socket, Light... - Page 8 TOP GRILLE AND UNIT COVER PARTS For Model: KSSC42QTS03 Illus. Part 2316737S Stainless Steel 2 W10161693 Cover, Unit 486194 Screw 2256466 Back Panel 5 W10185625 Cover, Unit Front 487415 Screw 7 W10167456 Wire Assembly 2317923S Badge, Kitchen Aid 489348 Clamp 2004333 Nut 2215910 Grommet−Flexible...
-
Page 9: Refrigerator Shelf Parts
REFRIGERATOR SHELF PARTS For Model: KSSC42QTS03 (Stainless Steel) W10221113... - Page 10 REFRIGERATOR SHELF PARTS For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION 2222592 Shelf Assembly 2179404 Rack, Wine 2302842 Assembly, Meat Pan Cover 2302835 Assembly, Crisper Cover 2257582 Trim, Glass Rear 2252412 Crisper Pan (2) Slide, Meat Pan 2302954 Left Side...
- Page 11 FREEZER LINER AND AIR FLOW PARTS For Model: KSSC42QTS03 (Stainless Steel) W10221113...
- Page 12 489214 Screw 2182120 Scroll, Fan 2259465 Wedge, Air Duct 2307774 Air Duct 2198643 Lens Block, Fan Scroll 2209480 Right 2209066 Left For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION 2215650 Cover, Emitter Liner (Not A Serviceable Part) 2259025 Cover, Air Outlet...
-
Page 13: Motor And Ice Container Parts
MOTOR AND ICE CONTAINER PARTS For Model: KSSC42QTS03 (Stainless Steel) W10221113... - Page 14 MOTOR AND ICE CONTAINER PARTS For Model: KSSC42QTS03 (Stainless Steel) Illus. Part 2222965 Ice Bin 2 W10134774 Crusher Bin 3 W10140642 Auger 2258220 Washer, Auger 1119007 Spacer, Flat (6) 2317248 Cover, Crusher 2257024 Blade, Rotary 1119005 Spacer, Step (2) 2257020 Blade, Fixed...
-
Page 15: Refrigerator Door Parts
REFRIGERATOR DOOR PARTS For Model: KSSC42QTS03 (Stainless Steel) W10221113... - Page 16 REFRIGERATOR DOOR PARTS For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION 1 W10193490 Refrigerator Door (Includes Item #9) 2258951 Brace, Door Corner 2266854 Hinge Assembly, 2316804 Spacer−Door, Top & Bottom 489282 Screw 2302878 Hinge Assembly, Bottom 2222796 Rail, Lid 2222982 Gaasket, Utility...
-
Page 17: Freezer Door Parts
FREEZER DOOR PARTS For Model: KSSC42QTS02 (Stainless Steel) W10175519... - Page 18 FREEZER DOOR PARTS For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION 1 W10193494 Freezer Door (Includes Item 14) 2302879 Hinge, Bottom 489282 Screw 2266854 Hinge, Top 2316804 Spacer−Door, Top & Bottom 2222814 Door Gasket, Magnetic Handle, Door 2316868 Stainless Steel Spacer, Door−Skin...
-
Page 19: Dispenser Front Parts
DISPENSER FRONT PARTS For Model: KSSC42QTS03 (Stainless Steel) W10221113... - Page 20 DISPENSER FRONT PARTS For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION Housing, Dispenser (Not Serviced) 486194 Screw (3) 3 W10132946 Bracket, Motor 2305242 Connector, Door Bracket 2318021 Motor, Ice Door 2180353 Door, Ice 2318020 Support, Ice Door 4449745 Screw (2)
- Page 21 UPPER UNIT PARTS For Model: KSSC42QTS03 (Stainless Steel) W10221113...
- Page 22 2256328 Bracket, Inverter 1157158 Screw 2307998 Condenser 2309431 Grommet (2) 2310207 Wire, Jumper 489399 Screw 2155774 Wire Tie UPPER UNIT PARTS For Model: KSSC42QTS03 (Stainless Steel) Illus. Part DESCRIPTION 21 W10175593 Drier 22 W10136614 Bracket, Fan Motor (Condenser Fan) 2188875 Motor, Fan...
- Page 23 LOWER UNIT AND TUBE PARTS For Model: KSSC42QTS03 (Stainless Steel) W10221113...
