Pollen mode operation lamp
Remote control receiver
MODE/
button
See Page E-10
(Used to select operation modes or turn the unit off)

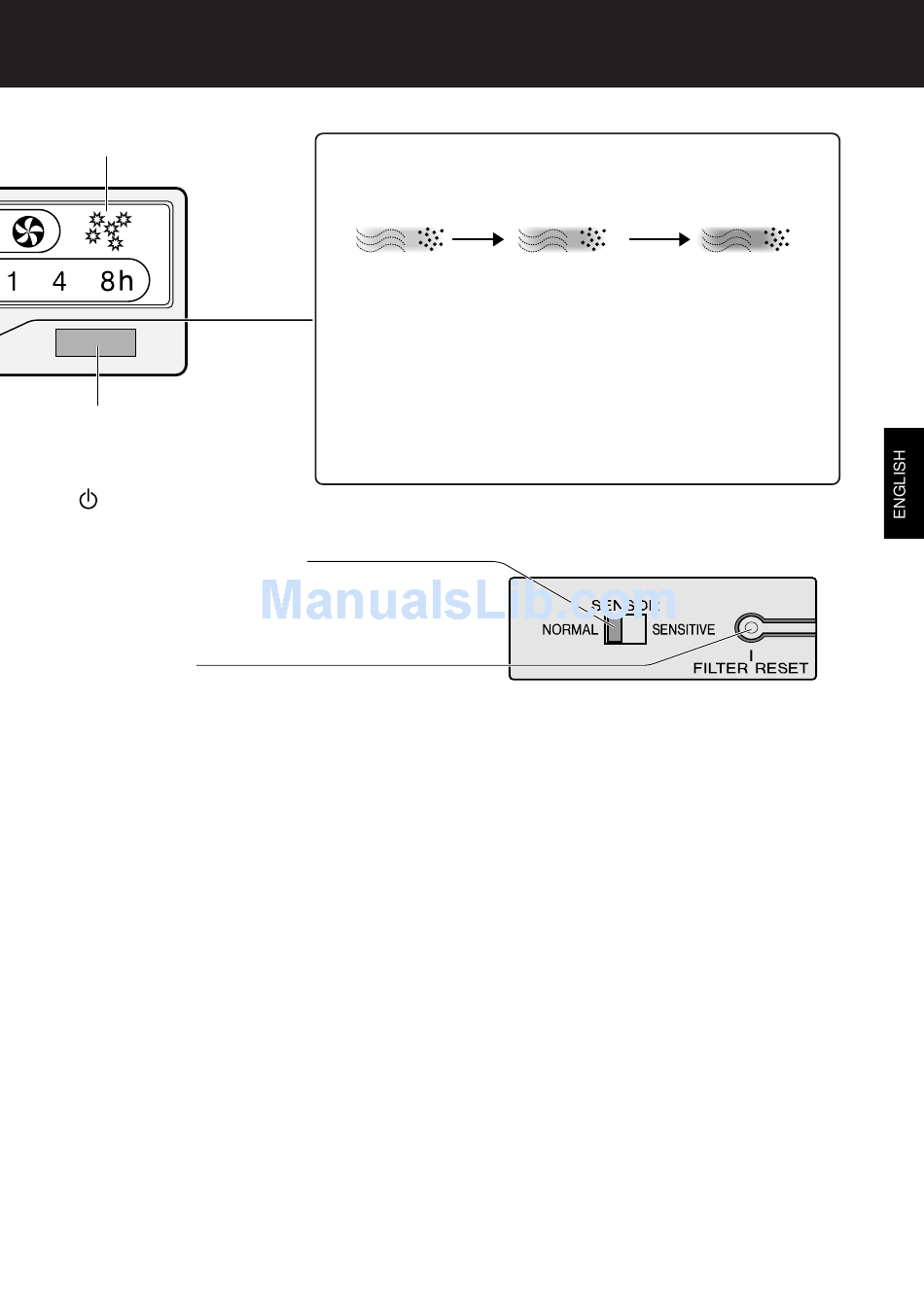

Sensor sensitivity select switch
The sensitivity of odor and dust detection can be adjusted.
This setting is factory set to "Normal". Normally, use the
unit in this setting. Set the sensitivity to "High" if the sensi-
tivity seems too low depending on the room condition.
Filter reset button
Odor sensor
Detects odors such as tobacco smoke, incense, pets, cos-
metics, etc.
Sensor cover / Dust sensor
Detects dusts, smoke, pollen, house dust, etc. See Page
E-12,E-13
Main unit
Filter frame
HEPA filter (white)
See Page E-14
(Dust collection filter)
Active carbon filter (black)
(Deodorizing filter)
Filter separator
Pre-filter
Front panel
Hook
Remote control
See Page E-11
CLEAN-SIGN
The color changes when the air is dirty.
Clean (green)
ABOUT THE CLEAN-SIGN
• The sensor displays a CLEAN-SIGN lamp depending on relative
changes to the environment from the time the power plug is inserted
into the wall outlet and thereafter.
• When the air is extremely dirty at the time the power plug is inserted,
the CLEAN-SIGN lamp may light green since the polluted state is
the environment against which the sensor bases the pollution rate
on.
In this case, switch manually to the desired operation mode as it is
ineffective in auto operation. See Page E-11
• The CLEAN-SIGN lamp can be turned off using the "DISPLAY ON/
OFF" button of the remote control. See Page E-11
See Page E-14
Slightly dirty (orange) Very dirty (red)
*Before pressing the Filter reset but-
ton, be sure to connect the power plug
to a wall outlet.
There is also a Filter reset button on
the remote control.
Point the remote control toward the
main unit before pressing the Filter
reset button on it.
