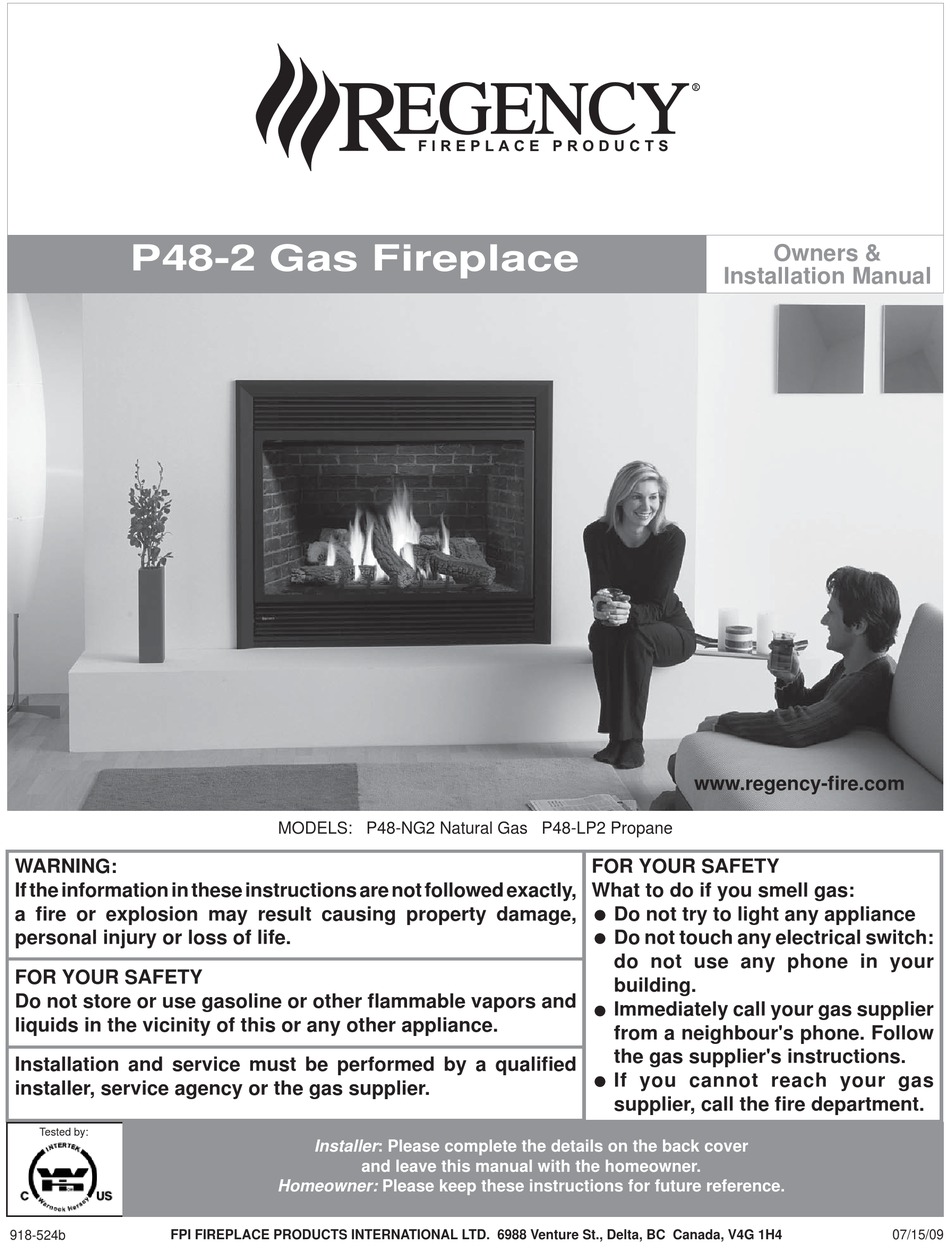

P48-2 Gas Fireplace
WARNING:
If the information in these instructions are not followed exactly,
a fi re or explosion may result causing property damage,
personal injury or loss of life.
FOR YOUR SAFETY
Do not store or use gasoline or other fl ammable vapors and
liquids in the vicinity of this or any other appliance.
Installation and service must be performed by a qualifi ed
installer, service agency or the gas supplier.
Tested by:
FPI FIREPLACE PRODUCTS INTERNATIONAL LTD. 6988 Venture St., Delta, BC Canada, V4G 1H4
918-524b
MODELS: P48-NG2 Natural Gas P48-LP2 Propane
Installer: Please complete the details on the back cover
and leave this manual with the homeowner.
Homeowner: Please keep these instructions for future reference.
Installation Manual
www.regency-fi re.com
FOR YOUR SAFETY
What to do if you smell gas:
D o not try to light any appliance
Do not touch any electrical switch:
do not use any phone in your
building.
Immediately call your gas supplier
from a neighbour's phone. Follow
the gas supplier's instructions.
If you cannot reach your gas
supplier, call the fi re department.
Owners &
07/15/09
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Regency P48-NG2
Summary of Contents for Regency P48-NG2
- Page 1 P48-2 Gas Fireplace Owners & Installation Manual www.regency-fi re.com MODELS: P48-NG2 Natural Gas P48-LP2 Propane WARNING: FOR YOUR SAFETY If the information in these instructions are not followed exactly, What to do if you smell gas: D o not try to light any appliance a fi...
- Page 2 WARNING HOT GLASS WILL CAUSE BURNS DO NOT TOUCH GLASS UNTIL COOLED NEVER ALLOW CHILDREN TO TOUCH GLASS CHILDREN AND ADULTS SHOULD BE ALERTED TO THE HAZARDS OF HIGH SURFACE TEMPERATURES, ESPECIALLY THE FIREPLACE GLASS, AND SHOULD STAY AWAY TO AVOID BURNS OR CLOTHING IGNITION.
-
Page 3: Manufactured Mobile Home Requirements
To the New Owner: Congratulations! ® You are the owner of a state-of-the-art Gas Fireplace by REGENCY . The P48-2 has been designed to provide you with all the warmth and charm of a wood fi replace at the fl ick of a switch. -
Page 4: Table Of Contents
S.I.T. Valve Description ..........26 Conversion Kit from NG to LPG Part #372-969 ..27 Warranty ..............51 Brick Panels Installation ..........30 Log Set Installation ............31 Standard Flush Door ...........34 Flush Louvers ..............34 Optional Flush Trim .............34 ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 5: Safety Label
® NOTE: Regency units are constantly being improved. Check the label on the unit and if there is a difference, the label on the unit is the correct one. -
Page 6: Requirements
(e) A copy of all installation instructions for all Product Approved side wall horizontally vented gas fueled equipment, all venting instructions, all parts lists for venting instructions, and/or all venting design instructions shall remain with the appliance or equipment at the completion of the installation. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 7: Installation
11) Under no circumstances should this appliance be modifi ed. Parts that have to be SHOULD STAY AWAY TO AVOID BURNS removed for servicing should be replaced OR CLOTHING IGNITION. prior to operating this appliance. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 8: Manufactured Mobile Home Additional Requirements
Diagram 1 HEARTH A hearth is not mandatory, but is recommended Flat on Wall for aesthetics and for added safety. Flat on Wall Corner Recessed into Wall/Alcove Corner ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 9: Clearances
The HeatWave Duct Kit and the Heat Release Kit have different clearance and framin requirements, check the HeatWave and Heat Release Kit Heat Release manual for details. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 10: Mantels
"heat resistant" or the paint may discolour. MANTEL LEG CLEARANCES Combustible mantel leg clearances as per diagram: Maximum 1-1/2" projection at 3" minimum clearance. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 11: Framing & Finishing
HeatWave manual for details. IMPORTANT When installing the unit with any vertical venting off the top of the unit as shown, the minimum framing depth changes accordingly. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 12: Unit Assembly Prior To Installation
Each direct vent gas appliance must use it's own separate vent system. Common vent systems are prohibited. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 13: Exterior Vent Termination Requirements
* Clearance in accordance with local installation codes and the requirements of the gas supplier 3 feet (91cm) within a height of 15 feet (4.5m) above the meter / regulator assembly 3 feet (91cm) above - if within 10 feet (3m) horizontally ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 14: Venting Arrangements
Flex installations. ® 3) If you are installing the P48-2 into a Regency Mantel Kit, use the minimum horizontal vent height (centre-line of 43"). Remember to include the mantel base in your calculations and to maintain the 2-1/2" clearance to the underside of the mantel top. -
Page 15: Simpson Dura-Vent Venting
Wall Thickness Vent Length (inches) Required (in.) 4" - 5-1/2" none 7" - 8-1/2" 6" 10" - 1-1/2" 9" 9" - 14-1/2" 12" 15" - 23-1/2" 11" - 14-5/8" Adj. Pipe ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 16: 5" X 8" Rigid Pipe Cross Reference Chart
5” X 8” RIGID PIPE CROSS REFERENCE CHART Components from different Manufacturers may not be mixed. Not All Rigid Pipe components are available directly from FPI. Components from different Manufacturers may not be mixed. Not all rigid pipe components are available directly from Regency. Description... - Page 17 • A Vent Guard is required when the AstroCap is installed above grade at 7 feet or lower. • The Simpson Dura-Vent and Selkirk Direct Temp horizontal termination caps cannot be used in any applications. • Only the AstroCap XL and Snorkels are certifi ed for horizontal terminations. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace...
- Page 18 5" inner diameter 8" outer diameter A vent guard should be used whenever the termination is lower than the specifi ed minimum or as per local codes. Note: Regency ® Direct Vent System (Flex) is only approved for horizontal terminations. •...
- Page 19 3' Max. 4' Min. 6' Max. feet total horizontal. Please note min. 1 foot 4' Max. 6' Min. 7' Max. between 90 elbows is 5' Max. 8' Min. 8' Max. required. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace...
- Page 20 Please note min. 1 foot between 90 elbows is between 90 elbows is 4' Min. 7' Max. 5' Min. required. 5' Max. 5' Min. required. 5' Min. 8' Max. 6' Min. 6' Max. 6' Min. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace...
- Page 21 5' Max. 7' Min. Please note min. 1 foot between 90 elbows is 5' Min. 6' Max. 8' Min. required. 6' Min. 7' Max. 9' Min. 7' Min. 8' Max. 10' Min. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace...
-
Page 22: Vertical Terminations
Firestops are required at each fl oor level and whenever passing through a wall. • Maintain clearances to combustibles. Note: Must use optional rigid pipe adapter when using Simpson Dura-Vent pipe (Part # 510-994). ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... - Page 23 Vent must be supported at offsets • Firestops are required at each fl oor level and whenever passing through a wall. • Maintain clearances to combustibles as listed in the "Clearances" section. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace...
-
Page 24: Unit Installation With Horizontal Termination
Note: If installing termination on a siding covered wall, a vinyl siding standoff Diagram 1 or furring strips must be used to ensure that the termination is not Diagram 7 recessed into the siding. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 25: Unit Installation With Vertical Termination
Diagram 5 or local codes. Note that for steep roof pitches, the vertical height must be increased. Diagram 3 ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... - Page 26 Be sure to check vent on top and bottom. Fasten the other thimble with Regency® Direct Vent termination area after snow falls, and clear half to the inside wall. The thimble halves...
-
Page 27: System Data
Log Set: Ceramic fi bre, 8 per set. 1/8" wide fl at screwdriver. Vent System: Simpson Dura-Vent Direct ® Vent System, Regency Flex Kit PILOT ADJUSTMENT 3) Attach manometer to "IN" and/or "OUT" pressure tap(s) using a 5/16" ID hose. -
Page 28: Conversion Kit From Ng To Lpg Part #372-969
LP pilot orifi ce move the front door. in the kit and replace pilot cap. Remove the logs, embers. Remove the grate by lifting straight up. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 29: Installation Of The Dc Sparker
22) Check operation of fl ame control. WARNING! Do not overtighten the screw. 23) Check for proper fl ame appearance and Recommended to glow on logs. grip the wrench by the short side. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... - Page 30 Battery Compartment 31) Run the other end of the ground wire and DC spark generator wires through the bushing on the heat shield. Heat Shield ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace...
-
Page 31: Brick Panels Installation
fi t snugly against the top of the fi rebox (refer to Valve" section. Diagrams 3 & 4). IMPORTANT Dangerous operating conditions may occur if the panels are broken. Diagrams 3 & 4 ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 32: Log Set Installation
02-86 3) Line up the two holes on the underside of Log 02-88 with the 2 pins at the rear of the grate and position into place. 02-85 Pins Pins ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... - Page 33 Rest log onto the pin in Log 02-88. the log against the grate. 02-83 02-86 02-85 4th Grate Post Position the notch on the bottom of the log into the 4th grate post. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace...
- Page 34 02-85 Cut-out on the underside of the log. 02-90 02-83 02-88 02-89 02-87 02-84 02-85 Position the cut-out onto the grate bar. Notches 02-87 02-90 02-89 02-88 02-85 02-84 02-86 02-83 ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace...
-
Page 35: Standard Flush Door
Diagram 3 NOTE: Springs must always be OVER not under the gas line. Burner ON/OFF Screws on control box louver bracket To remove the fl ush door, reverse the above steps. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 36: Optional Bay Door
fi replace. Using the 2 screws on the louver, secure the control box in place. 3) Secure to the fl ush door bottom bracket with 2 screws provided. Burner ON/OFF Screws control box on louver bracket Diagram 4 ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 37: Optional Finishing Trim
3) Open the screen door(s) and secure the screen door to the fl ush door front with 2 clips on the bottom left and right side. Clip locations Clip installed on right side. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 38: Optional Remote Control
Can be used with Option 1 or 2 but not both. but not both. but not both. Use the Regency ® Remote Control Kit approved 1) Run the supplied 15' of wire through the A wall thermostat may be installed if desired, for this unit. -
Page 39: Wiring Diagrams
Caution: Ensure that the wires do CAUTION: Label all wires not touch any hot surfaces and are prior to disconnection away from sharp edges. when servicing controls. Wiring errors can cause improper and dangerous operation. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... - Page 40 INSTALLATION PROPANE Units and Units Equipped with DC Spark Boxes* *For installation of the DC Spark Box refer to the LP Conversion instructions in this manual. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace...
-
Page 41: Installing The Optional Fan
Diagram 1 5) Connect fan ground cable to ground lug. Refer to wiring diagram. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 42: Operating Instructions
Note: Aeration Adjustment should only be caused by the curing of the paint, the burning unattached. performed by an authorized Regency ® off of any oils remaining from manufacturing. Installer at the time of installation or... -
Page 43: Normal Operating Sounds Of Gas Appliances
Blower: ® Regency gas appliances use high tech blowers to push heated air farther into the room. It is not unusual for the fan to make a "whirring" sound when ON. -
Page 44: Maintenance
NOTE: the pilot line is very fragile, ® resistant paint. Regency uses StoveBright out the joints, Continuous condensation can use caution when pulling it up. -
Page 45: Door Glass
DOOR GLASS INSTALLING VALVE BAY GLASS REPLACEMENT 1) Remove the door from the unit and place on Your Regency ® fi replace is supplied with high 1) Attach the valve to the valve bracket with a soft surface to prevent scratching. -
Page 46: Removing Valve
If you are using black pipe, ensure that there is a union by the valve, otherwise removal will be almost Slide the burner to the left and lift out. impossible. Valve Tray Assembly ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 47: Parts List
Conversion Kit - NG to LP 49) 910-142 Thermodisc - Fan (Auto ON/OFF) 910-845 Wire Harness - Plug In Fan 918-524 Manual 50) 770-994 Optional Rigid Pipe Adaptor *Not available as a replacement part. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... - Page 48 PARTS LIST HEAT WAVE DUCT KIT HEAT WAVE DUCT KIT DOORS & LOUVERS PLEASE REFER SEPARATE SECTION HEAT RELEASE DUCT KIT ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace...
-
Page 49: Burner & Log Assembly
Front Left Side Log Front Right Side Log Left Side End Log Rear Log 100) * Middle Right Side Log 101) * Right Side End Log *Not available as a replacement part. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 50: Flush Door & Louvers
Lift Hinge on Door 138) * Flush Door Frame 180) 512-546 Door Latch Assembly 139) 936-155 Glass Gasket (Tadpole) 188) 948-216 Regency ® Logo Plate 140) 948-042 Spring Hinge *Not available as a replacement part. 370-944 Finishing Trim - Black... -
Page 51: Bay Front & Louvers
Bay Louver Assembly - Bottom 117) 904-196 Magnet (1" round) 119) 370-093 Bay Door Baffl e 120) 400-189 Flush Glass Retainer Bracket ® 122) 948-216 Regency Logo Plate *Not available as a replacement part. ® Regency P48-2 Zero Clearance Direct Vent Gas Fireplace... -
Page 52: Warranty
It is the general practice of FPI to charge for larger, higher priced replacement parts and issue credit once the replaced component has been returned to FPI and evaluated for manufacturer defect. The authorized selling dealer is responsible for all in-fi eld service work carried out on your Regency product. FPI will not be liable for results or costs of workmanship from unauthorized service persons or dealers. - Page 53 FPI Fireplace Products International Ltd. is pleased to extend this Limited Lifetime Warranty to the original purchaser of a FPI Product. See the inside back cover for details. ® Register your Regency online at http://www.regency-fi re.com Installer: Please complete the following information Dealer Name & Address: ______________________________________________...
