IONITX Synergy Series Motherboard

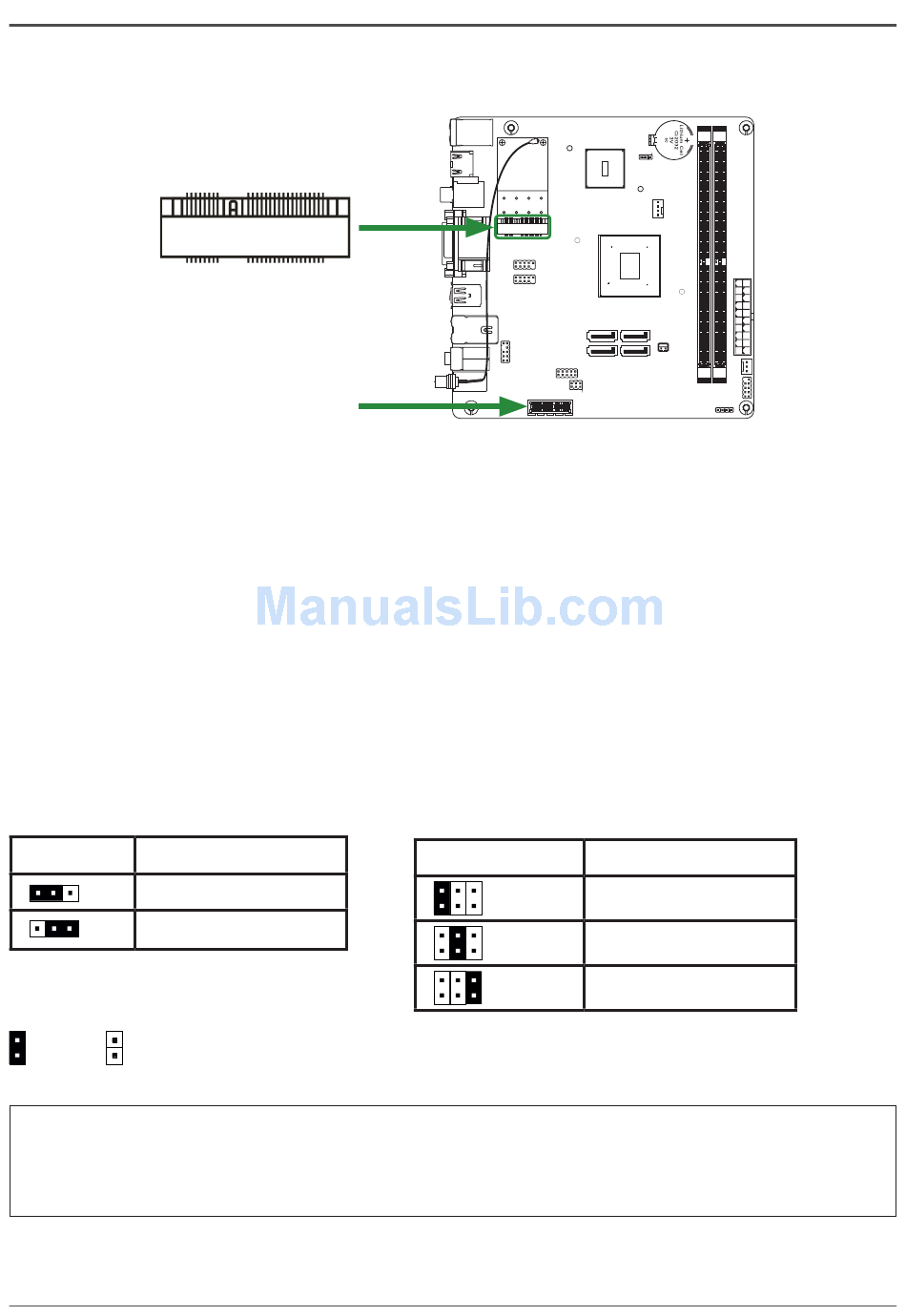

Expansion slots

The NVIDIA MCP7A-ION motherboard provide two expansion slot as below:
2
1

Mini PCIE slot

There is one Mini PCI Express slot,reserved for WiFi Module.
PCI Express x Slots-PCIE(optional)
There is one PCI Express x1 slot that is designed to accommodate less bandwidth-
intensive cards, such as a modem or LAN card. The x1 slot provides 500 MB/sec
bandwidth.

Jumper Settings

This chapter explains how to configure the motherboard's hardware. Before using your
computer, make sure all jumpers and DRAM modules are set correctly. Refer to this
chapter whenever in doubt.
CMOS Clear Jumper-JP
JP1
1-2* Normal*

2-3 CMOS Clear

Close Open
If you want to clear the system configuration, use the JP1 (Clear CMOS Jumper) to clear data.
Notice:
1. Be sure to save the CMOS setting when exit the CMOS.
2. If the CPU is frequency multiplier locked, no CPU speed change will be seen
even if the frequency multiplier setting in CMOS setup is changed.
6
Mini PCIE
52
51
PCI Express x1 slot
Selection
* = Default setting.
BIOS Selection Jumper(Optional)-JP3
JP3
 6
1-2*
 5
 6
3-4
 5
 6
5-6
 5
121 121
+
120 240 120 240
Selection
Master*
backup
factory
