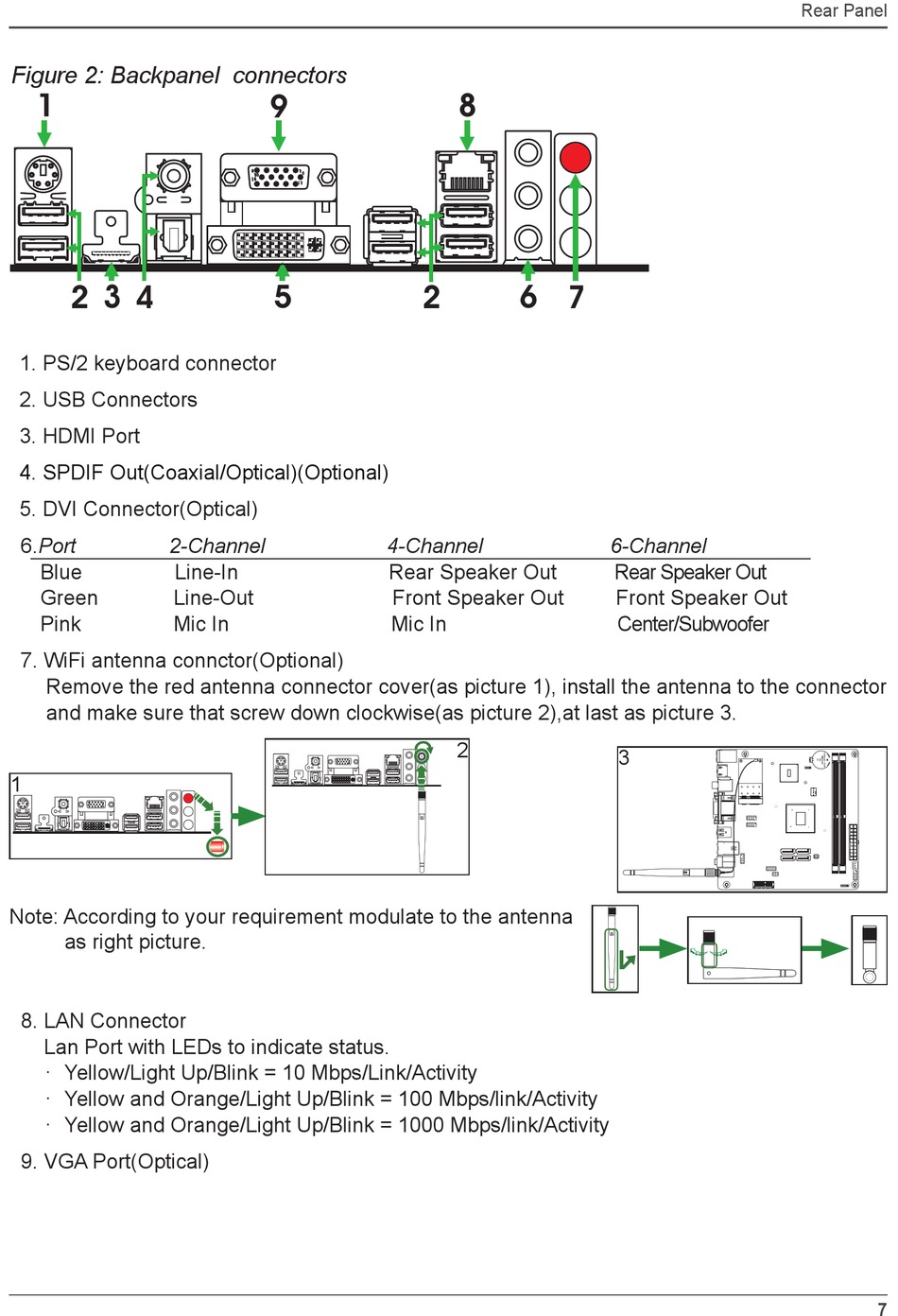

Figure 2: Backpanel connectors
3
2 4
1. PS/2 keyboard connector
2. USB Connectors
3. HDMI Port
4. SPDIF Out(Coaxial/Optical)(Optional)
5. DVI Connector(Optical)
6.Port 2-Channel
Blue Line-In
Green Line-Out
Pink Mic In
7. WiFi antenna connctor(Optional)
Remove the red antenna connector cover(as picture 1), install the antenna to the connector
and make sure that screw down clockwise(as picture 2),at last as picture 3.
1
5
6
10
15
11
Note: According to your requirement modulate to the antenna
as right picture.
8. LAN Connector
Lan Port with LEDs to indicate status.
· Yellow/Light Up/Blink = 10 Mbps/Link/Activity
· Yellow and Orange/Light Up/Blink = 100 Mbps/link/Activity
· Yellow and Orange/Light Up/Blink = 1000 Mbps/link/Activity
9. VGA Port(Optical)
9
5
6
10
15
11
5
5
10 6
15
11

8
6 7
2
4-Channel
Rear Speaker Out
Front Speaker Out
Mic In
2

6-Channel
Rear Speaker Out
Front Speaker Out
Center/Subwoofer
3

Rear Panel
121 121
+
120 240 120 240
