SATA RAID User Manual

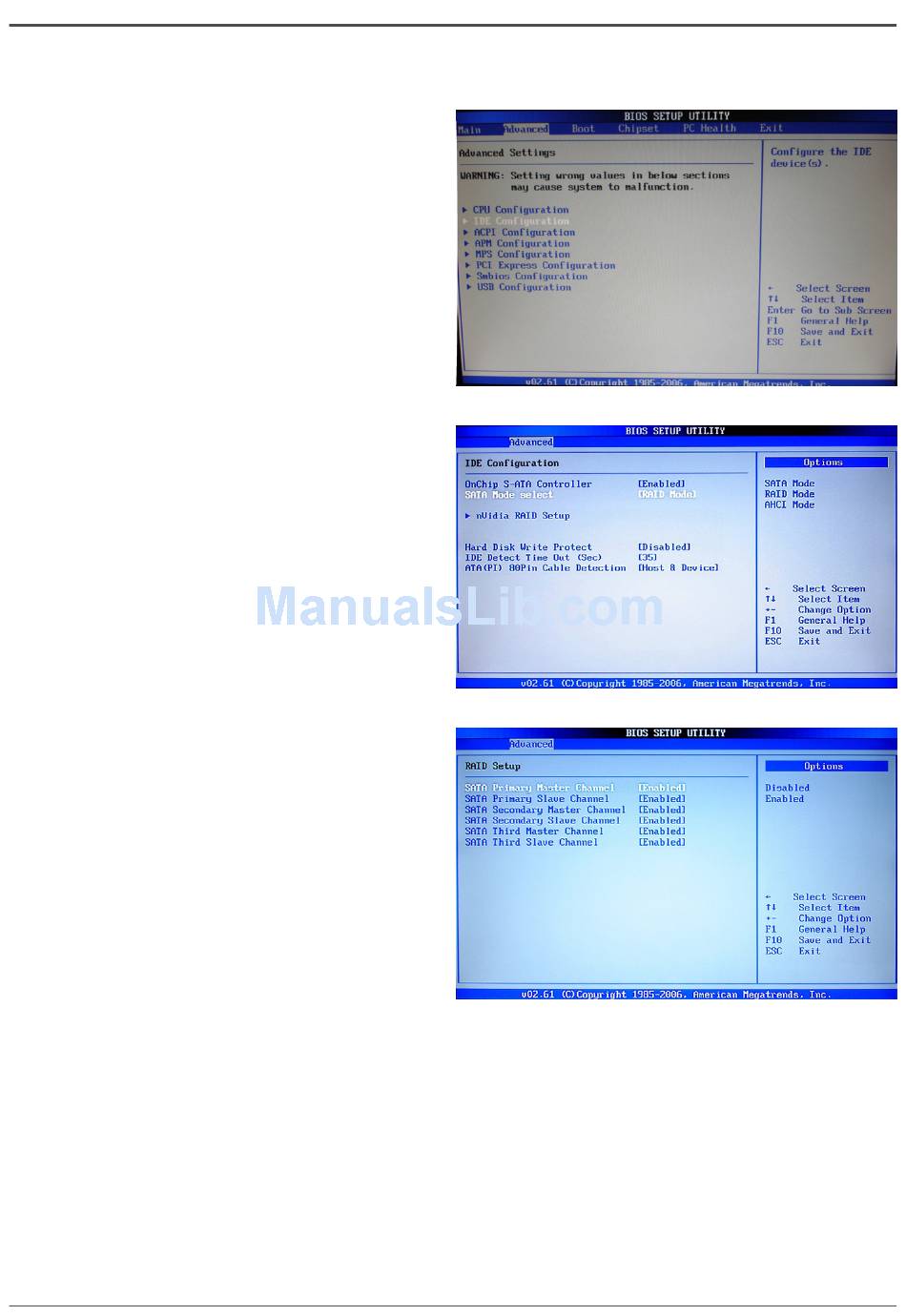

Setting up the BIOS

1. Setting your computer, then press
Delete to enter the Bios setup.
2. Use the arrow keys to select Ad
vanced menu.When enter the Ad
vanced, use the arrow keys to select
the Item "IDE Configuration".
3. Press Enter to display the IDE
Configuration,then use the arrow keys
to Select the item SATA mode select
and set it RAID Mode.
4. Use the arrow keys to Select the item
nVidia RAID Setup.
5. Press enter to display the RAID Setup.
6. From the Raid Setup window,enable RAID, then enable the disks that you want
to use as RAID disks.
7. Press F10 to save the configuration and exit. The PC reboo
8. Enter the RAID BIOS Setup by pressing F10 when prompted, and proceed to set
up the NVRAID BIOS as described in the next Section.
Installing Drivers and Software
ts.
