Jenn-Air JGW8130DDB12 Parts List

Jenn-Air JGW8130DDB12 Parts List

30" built-in gas single oven
Hide thumbs Also See for JGW8130DDB12:
1
2
3
4
5
6

Advertisement

Quick Links

Download this manual See also: Use and Care Manual

OVEN PARTS

30" BUILT−IN GAS
SINGLE OVEN
For Models:JGW8130DDW12, JGW8130DDB12
(Black)
(White)
6−07 Litho in U.S.A. (mo)
Part No. W10141122 Rev. A
1

Advertisement

loading
Need help?

Need help?

Do you have a question about the JGW8130DDB12 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Jenn-Air JGW8130DDB12

Summary of Contents for Jenn-Air JGW8130DDB12

  • Page 1: Oven Parts

    OVEN PARTS 30" BUILT−IN GAS SINGLE OVEN For Models:JGW8130DDW12, JGW8130DDB12 (Black) (White) 6−07 Litho in U.S.A. (mo) Part No. W10141122 Rev. A...

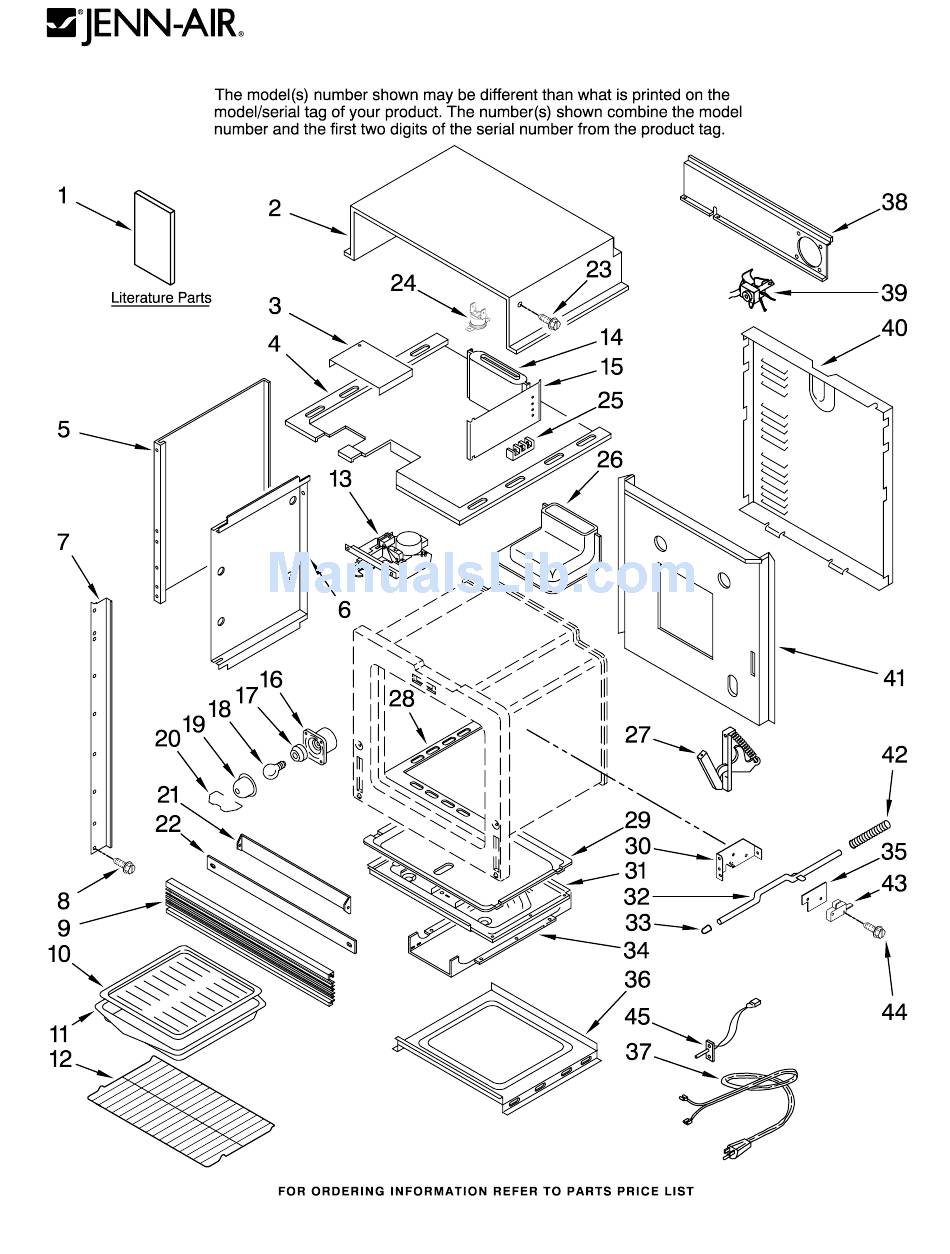

  • Page 2 OVEN PARTS For Models:JGW8130DDW12, JGW8130DDB12 (Black) (White) Illus. Part Illus. Part Illus. Part DESCRIPTION DESCRIPTION DESCRIPTION Literature Parts 3413F016−19 Insert,Broil Pan 74009480 Retainer, Bottom 3401F020−19 Pan, Broil 74003562 Rod, Light Switch 8112P214−60 Manual, U&C 74001757 Rack, Oven 74007686 Cover, Plunger 74009330 Booklet, Cooking 15003431 Wiring Diagram 74008267 Latch, Door Assy...
  • Page 3 CONTROL PANEL PARTS For Models:JGW8130DDW12, JGW8130DDB12 (Black) (White) Illus. Part DESCRIPTION 74009496 Shield, Vent 74009473 Bracket, Control 74009559 Control (GAS) Panel, Control 74009501 White 74009500 Black Trim,Control Panel 74009488 Black 74009499 Chrome Extrusion, Vent 74004131 Black 74004130 Chrome W10141122...

  • Page 4: Oven Door Parts

    OVEN DOOR PARTS For Models:JGW8130DDW12, JGW8130DDB12 (Black) (White) W10141122...
  • Page 5 OVEN DOOR PARTS For Models:JGW8130DDW12, JGW8130DDB12 (Black) (White) Illus. Part DESCRIPTION 74003647 Insulation,Door 74009502 Baffel, Door 74002059 Screw, Handle Handle Door 71003204 Black 74003656 White 74003649 Glass, Door 7728P094−60 Insert, White Trim, Door Top 71003503 Black 71003504 White 74003650 Retainer, Glass Kit, Door Glass 12002300 Black 12002301 White...
  • Page 6 INTERNAL OVEN PARTS For Models:JGW8130DDW12, JGW8130DDB12 (Black) (White) Illus. Part DESCRIPTION 7103P030−60 Nut, Wing 74009231 Baffel, Broil Bnr 74004076 Burner, Broil 74009468 Tubing,Oven Burner 4005F421−45 Cover,Igniter 3601F239−45 Baffel, Bottom 74009483 Burner, Bake 74006348 Tubing, Broil 74006345 Valve, Oven 74009506 Tubing, Bake 74009505 Tubing, 30"...

This manual is also suitable for:

Jgw8130ddw12
