Char-Broil 463230512 Product Manual

C-69g5cb
Hide thumbs Also See for 463230512:

Advertisement

Quick Links

Download this manual

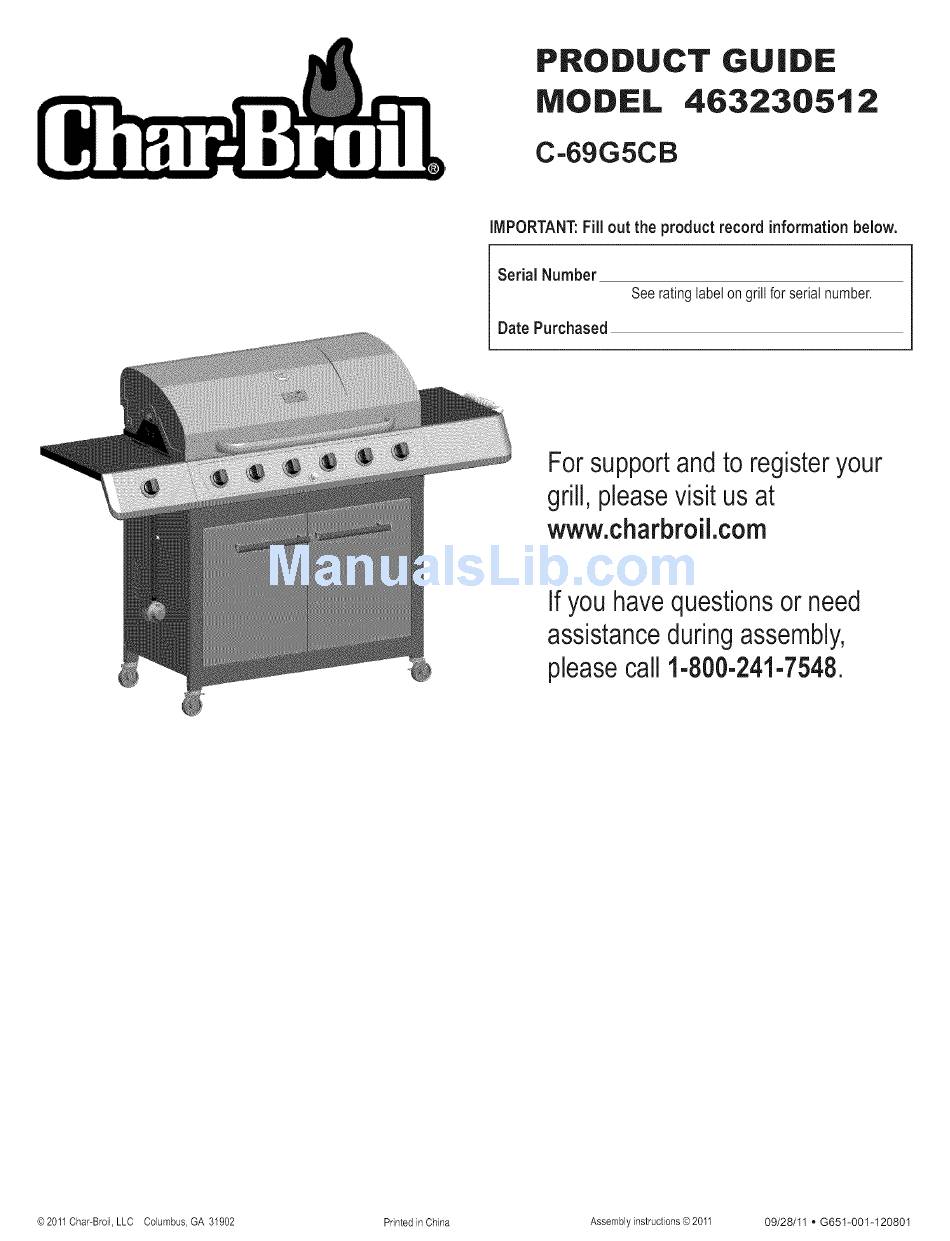

PRODUCT
GUIDE
MODEL
463230512
C-69G5CB
IMPORTANT: Fill out the product record information below.
Serial Number
See ratinglabel on grill for serialnumber.
Date Purchased
Forsupportandto registeryour
grill, pleasevisit us at
www.charbroil.com
If you havequestionsor need
assistanceduringassembly,
pleasecall 1-800-241-7548.
©2011 Char-Broil, LLC Columbus,GA 31902
Printed in China
Assembly instructions©2011
09/28/11 QG651-001-120801

Advertisement

loading
Need help?

Need help?

Do you have a question about the 463230512 and is the answer not in the manual?

Questions and answers

Related Manuals for Char-Broil 463230512

Summary of Contents for Char-Broil 463230512

  • Page 1 IMPORTANT: Fill out the product record information below. Serial Number See ratinglabel on grill for serialnumber. Date Purchased Forsupportandto registeryour grill, pleasevisit us at www.charbroil.com If you havequestionsor need assistanceduringassembly, pleasecall 1-800-241-7548. ©2011 Char-Broil, LLC Columbus,GA 31902 Printed in China Assembly instructions©2011 09/28/11 QG651-001-120801...
  • Page 2 For Your Safety ........If you smell gas: Grilling Guide ........1. Shut off gas to the appliance. Use and Care ........8-14 2. Extinguish any open flame. Limited Warranty ........3. Open lid. Parts List .......... 4. If odor continues, keep away from the appliance and immediately call your gas Parts Diagram ........
  • Page 3 CAUTION CALIFORNIA PROPOSITION 65 Using pots larger than 6 quarts in capacity could 1. Combustion by-products produced when using exceed weight limit of the side burner shelf this product contain chemicals known to the State of California to cause cancer, birth defects, and other or side shelf, reproductive harm.
  • Page 4 Temperature - Convective Grills ONLY. The temperature gauge in the hood of your new grill measures First Time Use air temperature. The air temperature inside your grill will never be as hot as the temperature at the cooking surface. Read your Assembly Manual and ensure the grill is put together properly.

  • Page 5: Rotisserie C Ooking

    Rotisserie C ooking Rotisserie cooking isbest f or'round' meat, such aslarge roasts, whole poultry, andpork.Itgenerally requires anaccessory motor Outdoor grilling i sreally q uite simple. You'll succeed with and spitrodthatallows t hemeat tobeturned a ta constant burgers, dogs, o rsteaks u sually o nyour v ery first t ry.With speed.
  • Page 6 Wood Chips For extra smoke flavor when grilling, try adding wood chips. Cooking onyour n ew grill i sahands-on experience, anditis Soak the chips in water for approximately 30 minutes before recommended toremain o utside w ithyour g rill w hile cooking. adding to a smoke box or pan.

  • Page 7: Routine Care

    Cooking surfaces: If a bristle brush is used to clean any of the grill cooking surfaces, ensure no loose bristles remain on cooking WhyClean? surfaces prior to grilling. It is not recommended to clean cooking We've a llheard t hesaying ' Anounce o fprevention isworth a surfaces while grill is hot.
  • Page 8 LP Cylinder *The LP cylinder used with your grill must meet the following requirements: *Use LP cylinders only with these required measurements: 12" (30.5cm) (diameter) x 18" (45.7 cm) (tall) with 20 lb. (9 kg.) capacity maximum. • NEVER store a spare LP cylinder under or near ,LP cylinders must be constructed and marked in accordance the appliance or in an enclosed area.
  • Page 9 LP Cylinder Exchange Connecting Regulator to the LP Cylinder •Many retailers that sell grills offer you the option of replacing 1.LP cylinder must be properly secured onto grill. (Refer to your empty LP cylinder through an exchange service. Use only assembly section.) those reputable exchange companies that inspect, precision fill, 2.Turn all control knobs to the OFF position.
  • Page 10 Leak Testing Valves, Hose and Regulator 1.Turn all grill control knobs to OFF. 2.Be sure regulator is tightly connected to LP cylinder. 3.Completely open LP cylinder valve by turning hand wheel counterclockwise. If you hear a rushing sound, turn gas off immediately.
  • Page 11 Safety Tips A Before opening LP cylinder valve, check the coupling nut for tightness. A When grill is not in use, turn off all control knobs and LP For Safe Use of Your Grill and to Avoid Serious cylinder valve. injury: A Never move grill while in operation or still hot.
  • Page 12 SEAR Burner Ignitor Lighting Ignitor Lighting A Do not lean over grill while lighting. A Do not lean over grill while lighting. 1. Turn OFF gas burner control valves. 1. Turn OFF gas burner control valves. 2. Turn ON gas at LP cylinder. 2.

  • Page 13: Burner Flame Check

    Burner Flame Check General Grill Cleaning • Do not mistake brown or black accumulation of grease and • Remove cooking grates and flame tamers. Light burners, rotate knobs from Hi to LOW. You should see a smaller flame in smoke for paint. Interiors of gas grills are not painted at the factory (and should never be painted).
  • Page 14 cAuTioN Remove carryover tubes and burners. Detach electrode from burner. NOTE: Removal/Detachment method will depend on the SPIDER ALERT! burner configuration. See different configurations in illustrations below. Carefully lift each burner up and away from valve openings. We suggest three ways to clean the burner tubes. Use the one easiest for you.
  • Page 15 This warranty only applies to units purchased l¥om an authorized retailer. ManuPacturer warrants to the original consumer-purchaser only that this product shall be fiee from defects in workmanship and materials after correct assembly and under normal and reasonable home use for the periods indicated below beginning on the date of purchase*.
  • Page 16 FIREBOX LEFTSIDE CART PANEL MAIN BURNER-TUBEBURNER BOTTOM SHELF MAIN BURNER-BARBURNER FRONTDOOR BRACE LEFT DOOR ELECTRODE, F/TUBE BURNER RIGHT DOOR ELECTRODE, F/BAR BURNER CARRY OVER TUBE HANDLE, F/DOOR LOWER BACK PANEL CONTROL PANEL, MAIN ELECTRONIC IGNITIONMODULE TANK EXCLUSIONWIRE GREASE TRAY BUTTON, F/IGNITION MODULE GREASE PAN SHIELD, F/ELECTRONIC IGNITIONMODULE HOSEVALVE REGULATOR ASSEMBLY...
  • Page 17 / OD /KK ,/KK /KK./KK © O © @ @ '© \FFF / RR A4_A...
  • Page 18 1/4-20x2-3/8"machine screws and 1/4-20flange nuts at front,and (2) 1/4-20x2-3/8"machine screws and 1/4-20 " Placebottomshelf betweenside panelswith cut out holefor LPcylinderon left.Attachto left and rightside panelswith (4) flange nuts at rear. ForFront Door BraceAssembly LeftSide Panel RightSide Panel 1/4-20x2-3/8" Machine Screw Qty.
  • Page 19 screws, " Hook t ank exclusion wire onto the metal taps o nlower back p anel, attach other ends t obottom s helf with (2) # 8x3/8" sheet metal LowerBack Panel #8x3/8" SheetMetalScrews Qty.2 flange nuts. " Placefront door braceas shown.Attachto left and rightsidepanelswith (4) 1/4-20x2-3/8"machine screws and (4) 1/4-20 1/4-20 Flange Nut Qty.
  • Page 20 , Turn a ssembly upside down. , Insert Caster Pin into the caster mounting plate t olock itinplace, shown A. Spin t he caster clockwise into the threads onthe legs until secure. Remove the Caster Pin and repeat forremaining casters. Make sure the two locking casters are secured atthe rear and the non-locking casters are secured atthe front.
  • Page 21 " Carefullylowerthegrill headontothe cart. Makesure the regulatorhoseis hangingoutsidethecart.Attachwith (2) 1/4-20x1/2" " This step requirestwo peopleto lift and positiongrill headonto cart. screws. Right side panel removed for clarity Grill Head 1/4-20x1/2"Screw Qty. 4...
  • Page 22 " Attachtowelbar to rightsideshelfwith 1/4-20×1/2"Screws, 7ramlock washersand 7ramfiat washers(A). " Hooksidewallof shelf oversupportbracketson sideof firebox(B). " Insidefireboxattachrightside shelfwith (3) 7ram fire washers and 1/4-20×1/2"screws, as shown(C). At backof firebox,attach the rightsideshelf with (1) 7ramfire washer and 1/4-20×1/2"screw, as shown (B). "...
  • Page 23 " Hooksidewallof sideburnershelfoversupportbracketson sideof firebox(A). " Insidefireboxattachsideburnershelfwith (3) 7ramfire washers and 1/4-20x1/2"screws, as shown(B). At back of firebox,attach the sidebumershelfwith (1) 7ramfire washer and 1/4-20x1/2"screw, as shown(A). " Attachsideburnershelfwith (4) 1/4-20flange nuts, asshown (C). SideburnerShelf FiberWasher SupportBracket 1/4-20x1/2" 1/4-20 MachineScrew FlangeNut Qty.
  • Page 24 " Attachsideburnerbezeland valvewith (2) #8x3/8" SS screws. (A). " Placesideburnerinto shelf.Makesurevalve is insidesideburnertube.Attachsideburnerwith (1) wing nut (B). Hookventuri clip to sideburnertube and aroundmanifold. A ttachsideburnerignitorwire (C). " Presssideburnercontrol knobontovalvestem (D). " Placegrateontosideburnershelf (E). Sideburner Sideburner Bezel Sideburner Valve Sideburner Control Knob Sideburner Valve VenturiClip #8X3/8"...
  • Page 25 • Attachhandleto doorwith (4) #10-24x1/2"machine screws, 5ramflat washers and 5ram lock washers (A). • Inserthinge pinon bottomshelf into holein door.Pressupperhinge pin in front door brace,alignhinge holeon topof door,and releasehingepin into door. Hinge Pin hole Hinge Pin hole 5mmLockWasher "- #10-24x1/2" Machine Screw Qty: 4 #10-24xl/2"...
  • Page 26 " Placeheattentsovertube burnersby insertingtabs intoslots in front of firebox.Oppositeendsof heattentsrest on pinsin back of firebox. NOTE:Thereis no heattent over searburner. " Placecookinggratesonto graterests. " Insertendsof WarmingRackpivotwire intoholesin sides of gril lid. Insertendsof WarmingRackleg wire intoholesin sides of firebox. NOTE:Pivotand leg wires,runningside-to-side, s houldbe underwires runningfront-to-back. I f pivot and leg wiresare on top, WarmingRackis installedupside-down.
  • Page 27 • Attachthe heatshieldto greasetraywith (4) #8x3/8"sheet metal screws (A). " Placegreasepaninto greasetray,thenplacethetray intothe cart (B). HeatShield #8x3/8" GreaseTray SheetMetal Screws Qty.4 CAUTION Failure to install grease tray and grease pan will cause hot grease to drip from bottom of grill with risk of fire or property damage.

  • Page 28: Troubleshooting

    DANGER; If a gas leak cannot be stopped, or a fire occurs due to gas leakage, call the fire department. Gasleakingfrom • Damagedhose. . Turnoff gas at LP cylinderor at sourceon naturalgassystems.If cracked/cut/burned anythingbut burned,replacevalve/hose/regulator. If burned, hose. discontinueuseof productuntila plumberhas investigated cause and corrections are made.
  • Page 29 Troubleshooting (continued) ELECTRONIC IGNITION: Burner(s)will not light usingignitor. • Nospark,no ignitionnoise. • SeeSectionI of ElectronicIgnitionSystem. (See ElectronicIgnition Troubleshooting a lso) • Nospark,someignitionnoise. • SeeSectionII of ElectronicIgnitionSystem. , Sparks,but notat electrodeor at full • SeeSectionIII of ElectronicIgnitionSystem. strength. Burner(s)will not • See "GAS ISSUES:"on previouspage. matchlight.

  • Page 30: Troubleshooting - Electronic Ignition

    Troubleshooting - Electronic Ignition SECTION I Nosparksappearat • Batterynot installed , Checkbatteryorientation. • Installbattery(makesurethat "+"and "-" anyelectrodeswhen properly. connectorsare orientedcorrectly, w ith "+"end up ElectronicIgnitionButton and "-" enddown.) is pressed;no noise can be heardfromspark , Deadbattery. , Has batterybeen used , Replacebatterywith newalkalinebattery.
  • Page 31 We respect your privacy. [ Respetamos su privacidad. [ Nous respectons votre vie priv_e. ® If you prefer not to receive special offers and promotions from Char-Broil, please check here: Marque aqu[ si no desea recibir ofertas y promociones especiales de Char-Broil: ®...
  • Page 32 Register your product to receive a special offer www.c h a rbroi i.co m/reg iste r...
