Worth Data LZ400-RF Manual

Start Setup
*/+/*
Code 3 of 9
* 0) Enable Code 39
*/A/*
1) Disable Code 39
* 2) Enable Full ASCII
3) Disable Full ASCII
* 4) Enable Accumulate Mode
5) Disable Accumulate Mode
6) Transmit Start/Stop
* 7) Don't Transmit Start/Stop
8) Enable Mod 43 Check Character
* 9) Disable Mod 43 Check Character
A) Transmit Mod 43 Check Character
* B) Don't Transmit Mod 43 Check Character
C) Caps Lock ON
* D) Caps Lock OFF
2 of 5 Code
0) Enable I 2of5
* 1) Disable I 2of5
*/C/*
2) Enable Check Digit
* 3) Disable Chk Digit
4)Transmit Check Digit
* 5) Don't Transmit Ck 6) Enable 2 of 5
* 7) Disable 2 of 5
2 of 5 Length
Scan 2 digit length
*/5/*
(default is 06)
Code 93
0) Enable
* 1) Disable
*/W/*
2) Enable Full ASCII
* 3) Disable Full ASCII
RSS-14
* 0) Disable
1) Standard 14 digits
*/%/*
2) 14 + Identifiers
3) 14 + UCC-128 Emul.
Beep Options
* 0) Decode + Ack.
1) Ack Only
*/L/*
Aiming Dot Duration
Scan 1 digit from the
*/K/*
Barpad Menu, from 0
to 9 seconds
Start Base Setup (Base Only)
*.+.*
Data Bits (Serial Base Only)
0) 7 bits
*/I/*
* 1) 8 bits
Parity (Serial Base Only)
* 0) None
*/G/*
1) Even
2) Odd
Protocol (Serial Base Only)
* 0) None
*/E/*
1) Host Controlled
* default setting 08/06

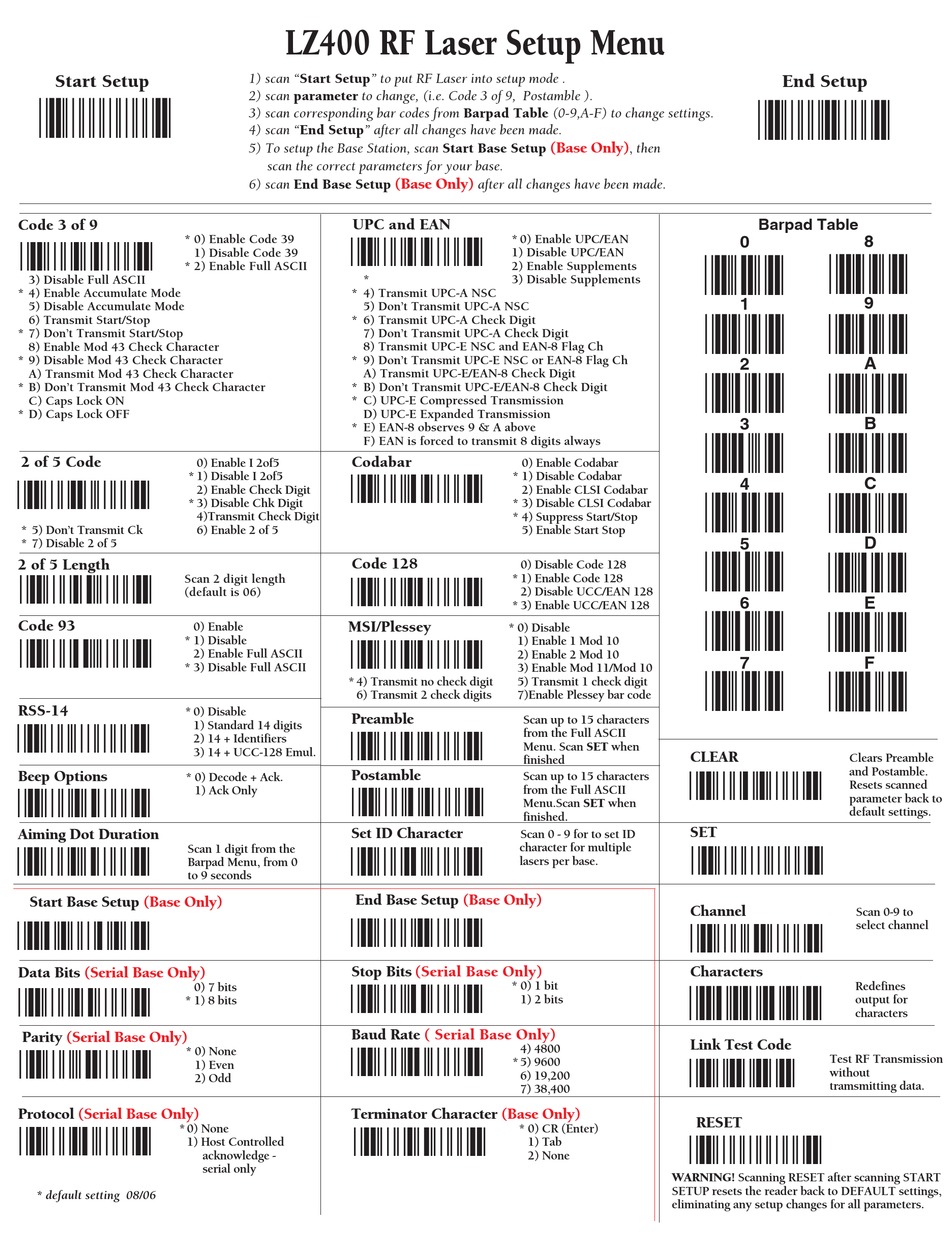

LZ400 RF Laser Setup Menu
1) scan "Start Setup" to put RF Laser into setup mode .
2) scan parameter to change, (i.e. Code 3 of 9, Postamble ).
3) scan corresponding bar codes from Barpad Table (0-9,A-F) to change settings.
4) scan "End Setup" after all changes have been made.
5) To setup the Base Station, scan Start Base Setup
scan the correct parameters for your base.
6) scan End Base Setup
UPC and EAN
*/B/*
*
* 4) Transmit UPC-A NSC
5) Don't Transmit UPC-A NSC
* 6) Transmit UPC-A Check Digit
7) Don't Transmit UPC-A Check Digit
8) Transmit UPC-E NSC and EAN-8 Flag Ch
* 9) Don't Transmit UPC-E NSC or EAN-8 Flag Ch
A) Transmit UPC-E/EAN-8 Check Digit
* B) Don't Transmit UPC-E/EAN-8 Check Digit
* C) UPC-E Compressed Transmission
D) UPC-E Expanded Transmission
* E) EAN-8 observes 9 & A above
F) EAN is forced to transmit 8 digits always
Codabar
*/D/*
Code 128
*/S/*
MSI/Plessey
*/R/*
* 4) Transmit no check digit
6) Transmit 2 check digits
Preamble
*/1/*
Postamble
*/2/*
Set ID Character
*/3/*
End Base Setup
*/-/*
Stop Bits
*/J/*
Baud Rate
*/F/*
Terminator Character
*/H/*
acknowledge -
serial only
(Base Only)
(Base Only)
after all changes have been made.
* 0) Enable UPC/EAN
1) Disable UPC/EAN
2) Enable Supplements
3) Disable Supplements
0) Enable Codabar
* 1) Disable Codabar
2) Enable CLSI Codabar
* 3) Disable CLSI Codabar
* 4) Suppress Start/Stop
5) Enable Start Stop
0) Disable Code 128
* 1) Enable Code 128
2) Disable UCC/EAN 128
* 3) Enable UCC/EAN 128
* 0) Disable
1) Enable 1 Mod 10
2) Enable 2 Mod 10
3) Enable Mod 11/Mod 10
5) Transmit 1 check digit
7)Enable Plessey bar code
Scan up to 15 characters
from the Full ASCII
Menu. Scan SET when
finished
Scan up to 15 characters
from the Full ASCII
Menu.Scan SET when
finished.
Scan 0 - 9 for to set ID
character for multiple
lasers per base.
(Base Only)
(Serial Base Only)
* 0) 1 bit
1) 2 bits
( Serial Base Only)
4) 4800
* 5) 9600
6) 19,200
7) 38,400
(Base Only)
* 0) CR (Enter)
1) Tab
2) None
End Setup
*/-/*
, then
Barpad Table
0
*0*
1
*1*
2
*2*
3
*3*
4
*4*
5
*5*
6
*6*
7
*7*
CLEAR
*/./*
SET
*/$/*
Channel
*/0/*
Characters
*.1.*
Link Test Code
*--*
RESET
*///*
WARNING! Scanning RESET after scanning START
SETUP resets the reader back to DEFAULT settings,
eliminating any setup changes for all parameters.
8
*8*
9
*9*
A
*A*
B
*B*
C
*C*
D
*D*
E
*E*
F
*F*
Clears Preamble
and Postamble.
Resets scanned
parameter back to
default settings.
Scan 0-9 to
select channel
Redefines
output for
characters
Test RF Transmission
without
tramsmitting data.
