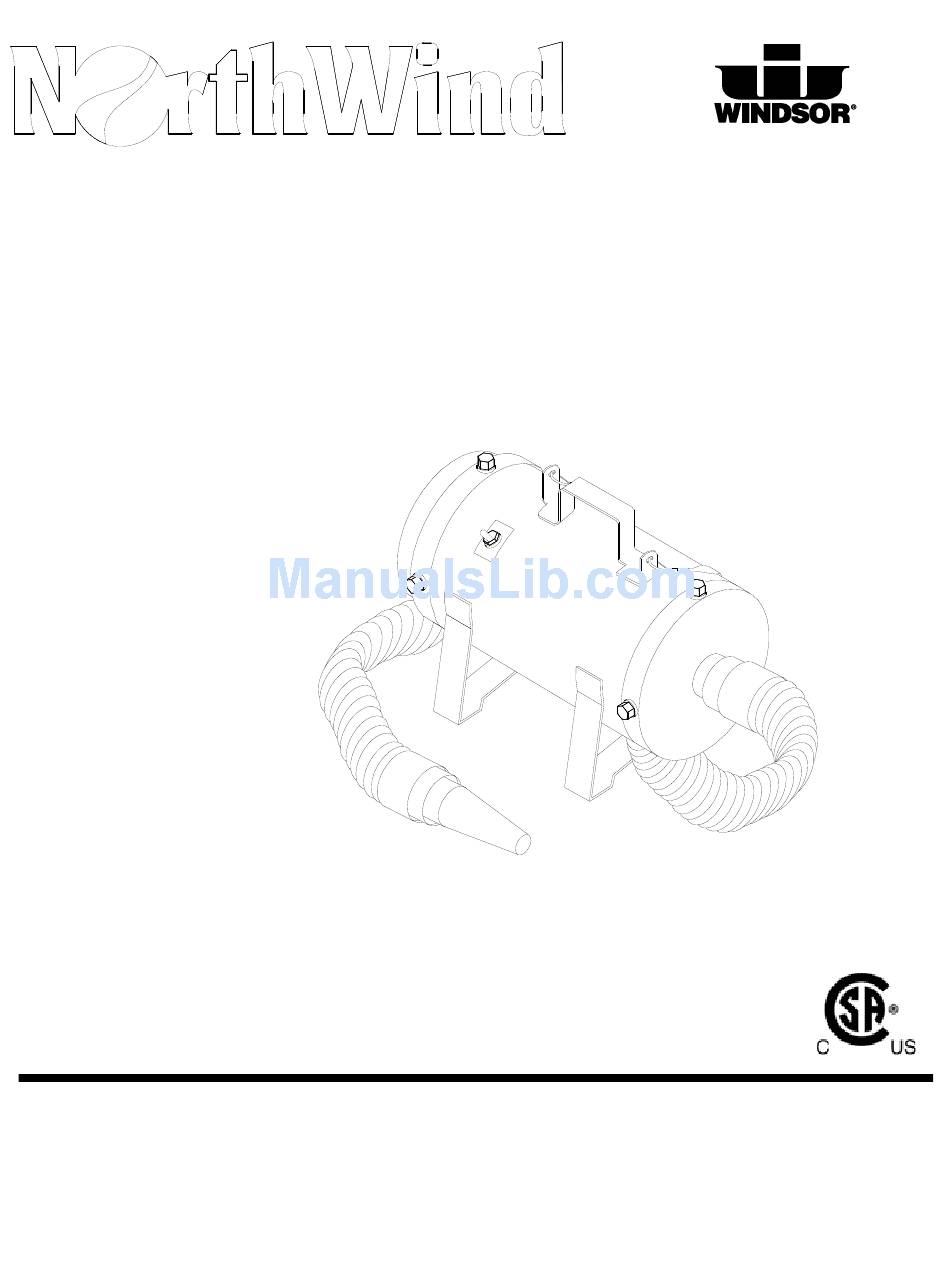

- Page 1 MODELS: Operating Instructions (ENG) 86284220 Read instructions before operating the machine. 86037530 –B 04/07/08 PRV NO. 980183...
- Page 2 MACHINE DATA LOG MODEL _______________________________________ DATE OF PURCHASE __________________________ SERIAL NUMBER ______________________________ SALES REPRESENTATIVE # _____________________ Copyright 2004 Windsor Industries, Printed in USA YOUR DEALER Name: __________________________________________________________________________________________________ Address: _______________________________________________________________________________________________ Phone Number: _________________________________________________________________________________________ 86037530 NWB 04/07/08...
-
Page 3: Table Of Contents
TABLE OF CONTENTS Machine Data Log..........2 PARTS LIST Table of Contents..........3 Spare Parts List............4-1 HOW TO USE THIS MANUAL Warranty...............4-2 How to use this Manual........1-1 SAFETY Important Safety Instructions .......2-1 Hazard Intensity Level..........2-2 OPERATIONS Technical Specifications........3-1 Notes..............3-1 Controls/Components..........3-2 Maintenance............3-2 86037530 NWB 04/07/08... -
Page 4: How To Use This Manual
The PARTS LIST section contains assembled parts Parts may be ordered from authorized Windsor illustrations and corresponding parts list. The parts dealers. When placing an order for parts, the lists include a number of columns of information: machine model and machine serial number are important. -
Page 5: Important Safety Instructions
IMPORTANT SAFETY INSTRUCTIONS When using an electrical appliance, basic precaution must always be followed, including the following: READ ALL INSTRUCTIONS BEFORE USING THIS MACHINE. WARNING: To reduce the risk of fire, electric shock, or injury: Use only indoors. Do not use outdoors or expose to rain. Use only as described in this manual. -
Page 6: Hazard Intensity Level
Unless Operation Guide is Read and understood. In Flammable or Explosive areas. In areas with possible falling objects. WHEN SERVICING MACHINE: Avoid moving parts. Do not wear loose clothing; jackets, shirts, or sleeves when working on the machine. Use Windsor approved replacement parts. 86037530 NWB 04/07/08... -
Page 7: Grounding Instructions
GROUNDING INSTRUCTIONS THIS PRODUCT IS FOR COMMERCIAL USE ONLY. ELECTRICAL: In the USA this machine operates on a standard 15 amp 115V, 60 hz, A.C. power circuit. The amp, hertz, and voltage are listed on the data label found on each machine. Using voltages above or below those indicated on the data label will cause serious damage to the motors. -
Page 8: Technical Specifications
TECHNICAL SPECIFICATIONS ITEM DIMENSION/CAPACITY Electrical 115Volt, 9.5 Amps, 60Hz Electric Vacuum Motor Single Two Stage Dimensions – Weight (with filter and hose assembly) 13 lbs (5.9 kg) Dimensions – Length (W/O filter and hose assembly) 12 in. (30.5 cm) Dimensions - Height 11.5 in. -
Page 9: Controls/Components
CONTROLS/COMPONENTS/MAINTENANCE DAILY/REGULAR MAINTENANCE Before making any adjustments or repairs to the machine, disconnect the power cord from electrical source. Inspect all hoses, electrical cables and connections on your machine. Frayed or cracked hoses should be repaired or replaced to eliminate pressure loss. If the cable insulation is broken or frayed, repair or replace it immediately. -
Page 10: Spare Parts List
SPARE PARTS LIST SERIAL NO. PART NO. PRV NO. DESCRIPTION NOTES: FROM 86161330 34423 FILTER, NWB 86161350 730287 STRAP ASM, NWB COMPLETE 86161340 39701 HOSE ASM, NWB COMPLETE 86244120 500848 LABEL, NORTHWIND NOT SHOWN 86037530 NWB 04/07/08... -
Page 11: Warranty
Any statutory implied warranties, including any warranty of merchantability or fitness for a particular purpose, are expressly limited to the duration of this written warranty. Windsor will not be liable for any other damages, including but not limited to indirect or special consequential damages arising out of or in connection with the furnishing, performance, use or inability to use the machine. - Page 12 The Machine Registration Card must be completed and returned immediately at the time of purchase. If proof of purchase cannot be identified, the warranty start date is 90 days after the date of sale to an authorized Windsor distributor. Parts replaced or repaired under warranty are guaranteed for the remainder of the original warranty period.
