Page 1

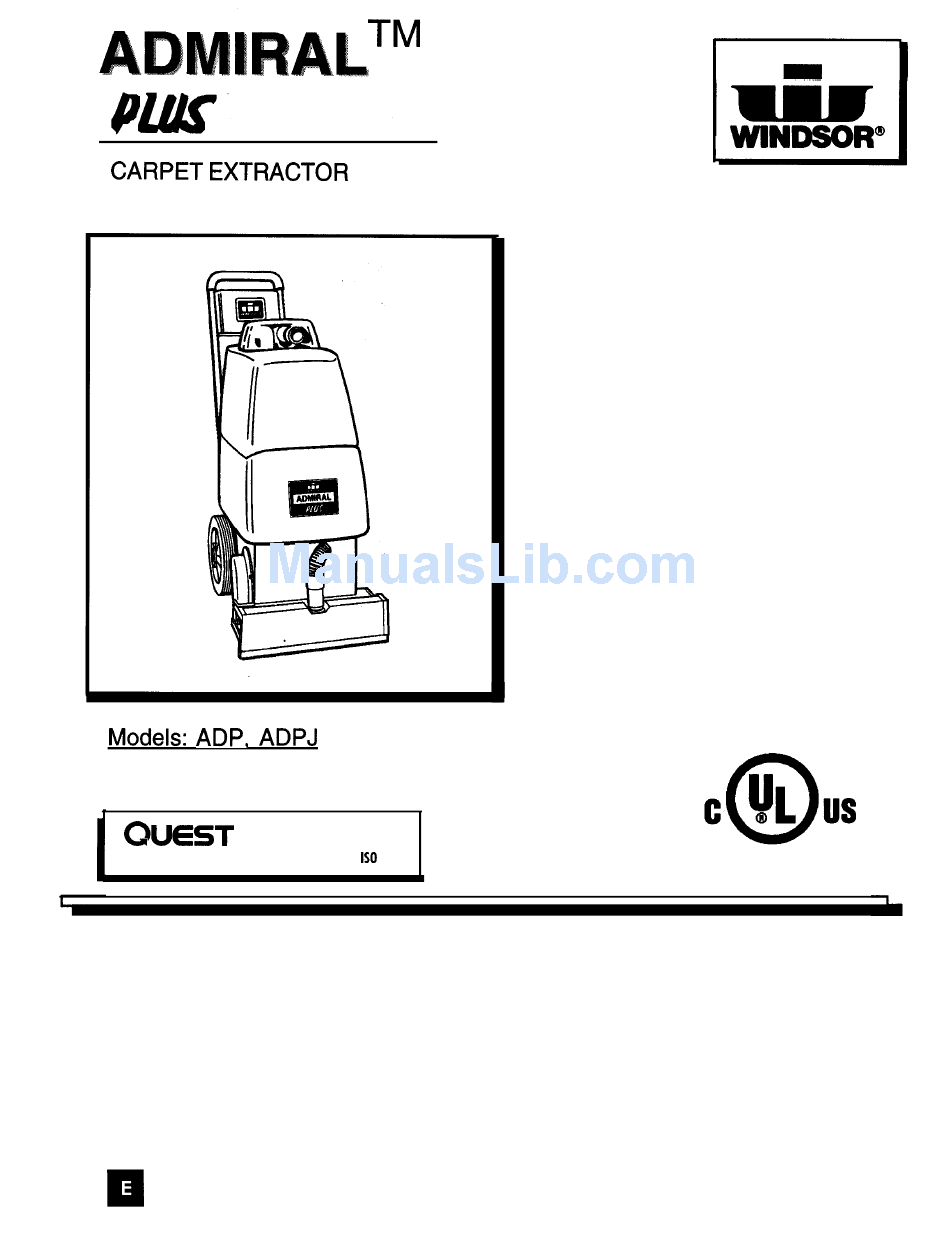

CARPET EXTRACTOR Operating Instructions (ENG) Models: ADP, ADPJ QUEST . . . for Continuous Improvement. Windsor's Quality Management System is Certified IS0 9001. UL LISTING COVERS ADP ONLY Read these instructions before operating the machine. 98198 02/01/99...
Trouble Shooting Warranty Record the model and serial number on the blue data label located at the rear of the machine . These numbers are used when calling upon the Windsor dealer for parts and service. PURCHASE DATE SERIAL NO.
Page 3
CONTROLS Equipment Set- Up: Before operating the ADP become familiar with Connect hoses to dome. the controls located at the back of the machine and on the control panel. Loop power cord through strain relief as shown. Become familiar with the machine. G Handle Lock Lever A Bush Switch H Accessory Tool...
Page 4
IMPORTANT SHIPPING NOTE WARNING: Carefully unpack your scrubber and inspect it for Improper connection of the equipment- shipping damage. Any damages which occurred grounding conductor can result in a risk of during shipping are the responsibility of the car- electric shock. Check with a qualified elec- rier, who must be notified immediately.
Page 5
OPERATING THE ADP Remove clear dome from upper tank. Vacuum the carpet and make sure it is Do not remove the two vacuum hoses. cleared of surface debris before cleaning with the ADP. NOTE: Dome can be set securely between handle uprights when the Release handle lock lever located on the handle is in operating position.
Page 6
To Use an Accessory Tool: Lower machine to floor. Dispense 1. Turn the machine completely off and solution by using either the continuous unplug it from electrical outlet. pump switch or the intermittent pump switch. Use the continues pump switch 2.
Page 7
SWITCH CONTROL PANEL ADP MAINTENANCE The switches and circuit breakers are ac- INSTRUCTIONS cessed through the panel located on the bot- tom of the control panel. WARNING: Removethe machine power cord from the electrical source before CAUTION: making any adjustments or repairs. After making repairs use the wiring diagram ONLY QUALIFIED MAINTENANCE PER- located on the access panel or in this manual...
Page 8
2 gallons (4 - 8 liters) of clean ot water. With machine over floor drain turn on vac/pump switch until solution tank is empty. CAUTION: Using non-Windsor parts to repair this Inspect spray pattern of jets. Remove jets and machine will void the 6-3-l warranty. rinse if clogged.
Page 9
PERIODIC MAINTENANCE: CAUTION: These procedures are performed by a Do not allow this machine to remain in a ve- trained service technician. The regularity of hicle or area where the temperature will be below 40°F (4°C). Allowing this machine to these procedures may depend on the ma- chine’...
TROUBLESHOOTING CHART Condition Corrective Action No Power To Machine: Dead electrical circuit breaker in fuse box Check building circuit breaker. Faulty power cord Replace Power switch failure Test switch for continuity/Replace if necessary. Faulty circuit breaker Test circuit breaker for continuity/Replace if necessary. Internal wiring problem With the machine unplugged, check for, and correct, any loose wire connections inside the machine at the switches and terminal block.
Page 11
TROUBLESHOOTING CHART Condition Corrective Action Accessory Tool Fitting Difficult to Connect: Corrosion on fitting Clean with steel wool. Remove and soak in acetic acid (white vinegar). Lubricate lightly with silicone base lubricant. Carpet Not Getting Clean: Severe soil conditions Make several passes at right angles to each other. Use a prespray.
SERVICING THE VAC MOTOR Vote: When replacing carbon vac motor BEFORE brushes loosen wire terminal removing screws on bracket f armature commutator is not concen- tric, extremely pitted, or grooved the motor will need to be replaced or sent to a qualified service center to restore vac performance.
Page 13
VAC MOTOR ASM Parts List 73215 Spacer, 3/8 OD x l/4 87013 Washer, l/4 Flat 57047 Nut, l/4-20 Nylock 53134 Vac Motor, 11 n/ 3 Stage TD TB 53183 Vac Motor, lOOV3AStageTDTB 20046 Clamp, 2.25 Worm Gear 39231 Hose, UL Vac Exhaust x 12 54070 Muffler Asm.
Page 15
73040 Spring, #55 Music Wire 51247 Lever Asm, Roller Adjustment 62115 Plate, Height Adj. 70363 Scr, 10-32 x 3/8 PHTR 70166 Scr, l/4-20 x l/2 FHMS 70018 Scr, l/4-20 x 1.0 HHCS 73178 Spacer, Roller Bracket 14244 Brkt, Roller Mounting 87025 Washer, l/4 Star 66073...
Page 16
TANKS & VAC HOSE ASSEMBLIES NOTE: Each tank has a filter screen which protects the machine’ s internal parts from damage. Ensure that these screens are in place and clean before operating the machine. ADP 98198 l/14/98...
Page 17
TANKS AND WC HOSE ASSEMBLY Parts List RECOVERY TANK PARTS LIST: SOLUTION TANK PARTS LIST: 39241 Hose, l/2” Wirebound X 10” Hose, Drain w/sol’n Level -ADP 39234 Hosebarb, 3/8 NPT x l/2 Tee 40068 Open Nut, l/4-20 w/Star Washer 57105 70251 Set Scr, l/4-20 x 1.0 Open...
Page 18
PUMP REPAIR, MANIFOLD & VALVE Spray Jets The ADP is equipped with quick change jet nozzles which are easy to clean or replace. 1.) With tanks empty, tilt machine back. Rinse in hot water or use compressed air to clean. Nozzles can also be soaked in an acetic acid solution (white vinegar).
Page 19
PUMP REPAIR, MANIFOLD, & VALVE Parts List 44051 Jet Seal, Mini-Quick 44052 Jet Body w/ Seal, Mini-Quick Jet Assembly, 11003 Mini-Quick 44055 14523 Brkt, Manifold 70114 Scr, #lO x 3/4 Polyfast 87025 washer, l/4 star scr, l/4-20 x 1n PHMS 70085 54094 Manifold ADM...
Page 20
CONTROL PANEL / MAIN HANDLE ASSEMBLY 98198 7/1/97...
Page 22
BRUSH DRIVE ASSEMBLY Belt Replacement Periodically check the drive belt for wear. Replace worn or frayed belts before they break, when possible. To access the belt remove the belt cover. To replace the belt it is necessary to loosen the motor and remove the brush.
Page 23
BRUSH DRIVE ASSEMBLY Parts List 09019 Bearing, Brush 64022 Pulley, Motor 14219 Brush. ADP assemblv 03033 Axle, Brush 36054 Guard, Thread 70190 Scr, l/4-20 x l/2 BHCS 73181 Spacer, .259 ID x .38x .25 70562 Scr, l/4-20 x 5/8 FHCS DL 41109 Housing, Brush Scr, l/4-20 x 5/8 HHCS...
