Connecting To Video Equipment (Component And Rgb Scart) - Sanyo XL51 - PLC XGA LCD Projector Owner's Manual

Installation

Connecting to Video Equipment (Component and RGB Scart)

Cables used for connection
• Audio Cables (Mini Plug: stereo, RCA x 2)
• Scart-VGA Cable
• Component Cable
(Cables are not supplied with the projector.)
External Audio Equipment
Audio cable
(stereo)
✔Note:
•When the AUDIO OUT is plugged-in, the projector's
built-in speaker is not available.
•See page 73 for ordering optional cables.
Unplug the power cords of both the projector
and external equipment from the AC outlet
before connecting the cables.
18

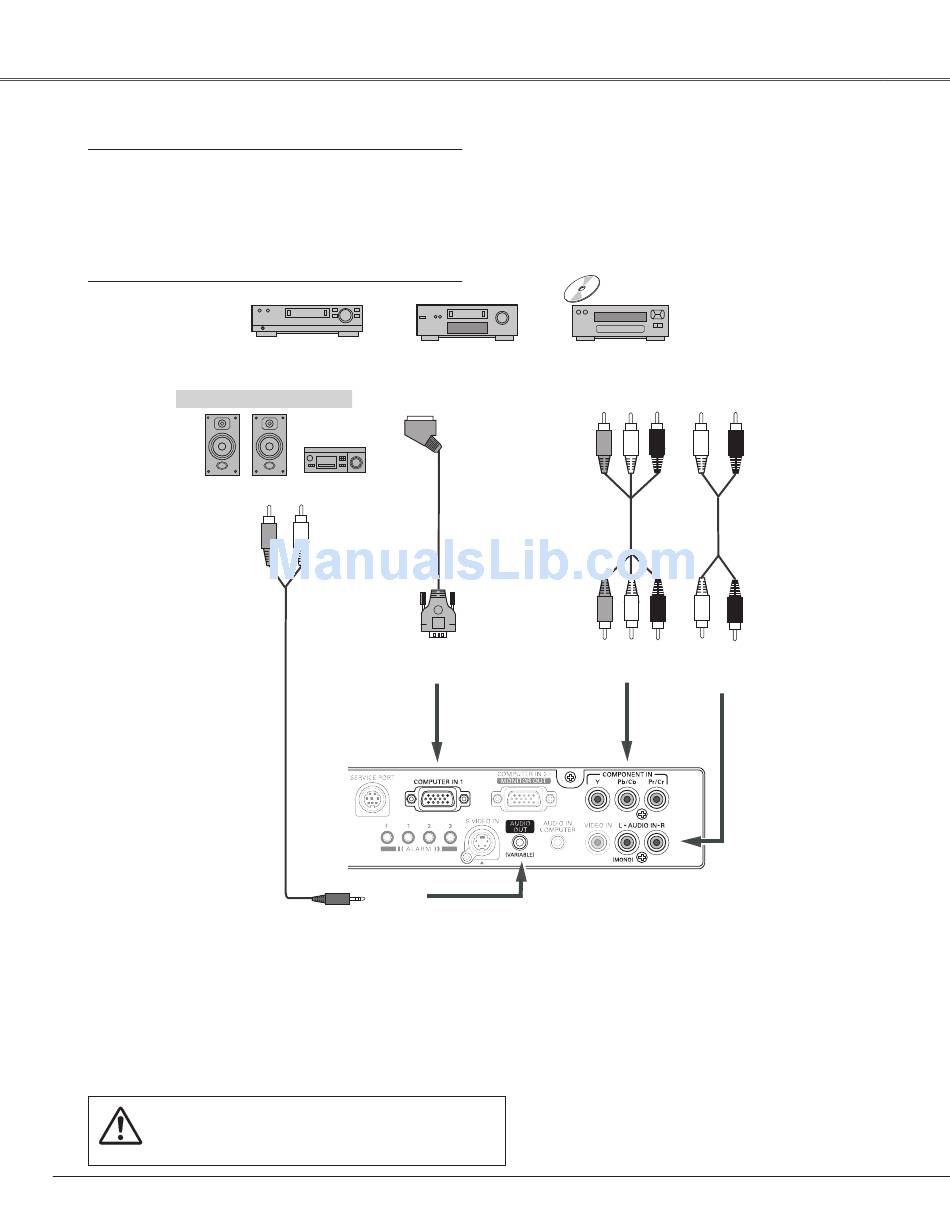

RGB Scart 21-
pin Output
Audio Input
Scart-VGA
cable
COMPUTER IN 1
AUDIO OUT
(stereo)
Component Video Output
(Y, Pb/Cb, Pr/Cr)
Component
cable
AUDIO IN
COMPONENT IN
Audio Output
Audio cable
(stereo)
