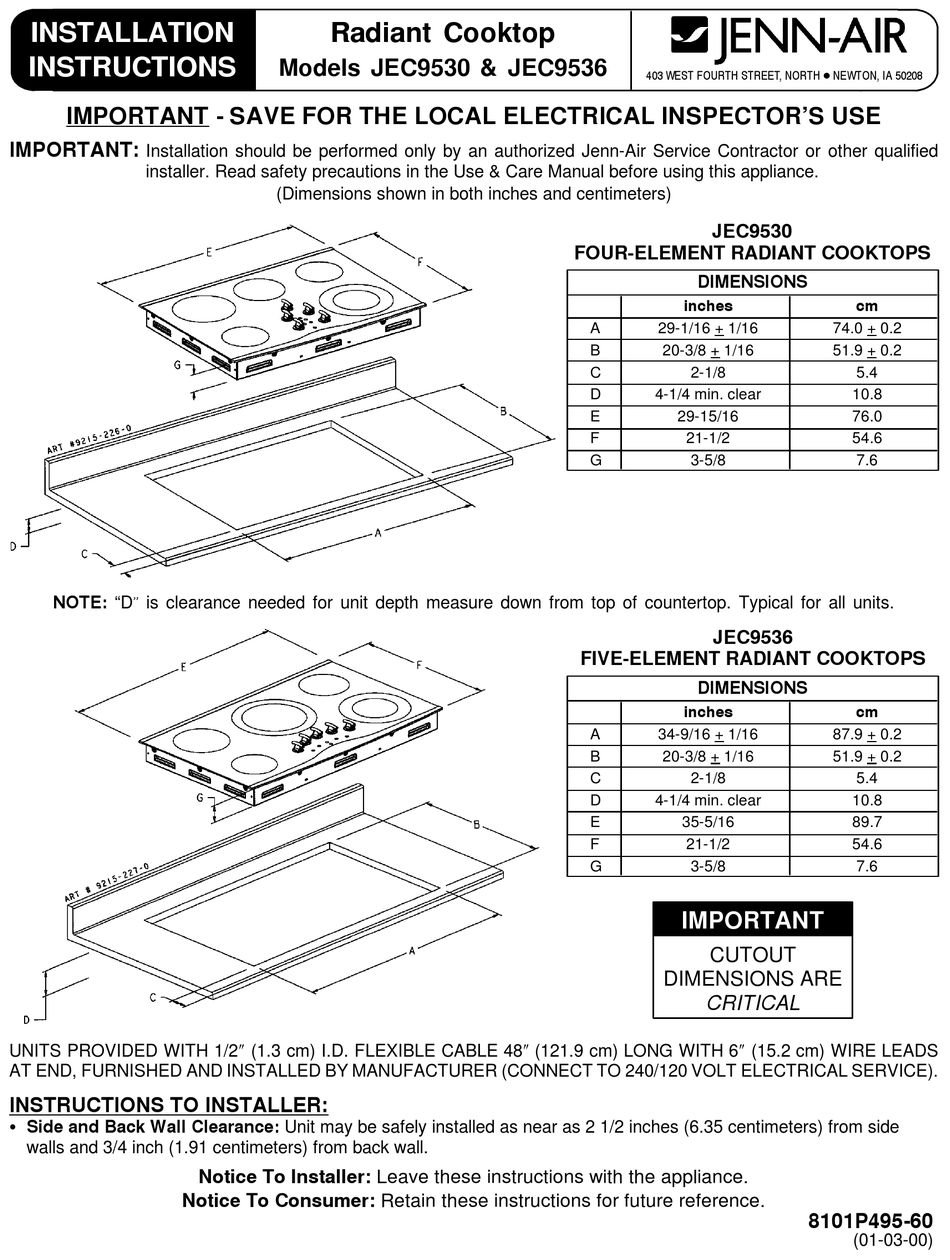

INSTALLATION
INSTRUCTIONS
IMPORTANT - SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
IMPORTANT:
Installation should be performed only by an authorized Jenn-Air Service Contractor or other qualified
installer. Read safety precautions in the Use & Care Manual before using this appliance.
D
NOTE: "D" is clearance needed for unit depth measure down from top of countertop. Typical for all units.
UNITS PROVIDED WITH 1/2² (1.3 cm) I.D. FLEXIBLE CABLE 48² (121.9 cm) LONG WITH 6² (15.2 cm) WIRE LEADS
AT END, FURNISHED AND INSTALLED BY MANUFACTURER (CONNECT TO 240/120 VOLT ELECTRICAL SERVICE).
INSTRUCTIONS TO INSTALLER:
S Side and Back Wall Clearance: Unit may be safely installed as near as 2 1/2 inches (6.35 centimeters) from side
walls and 3/4 inch (1.91 centimeters) from back wall.
Notice To Consumer: Retain these instructions for future reference.

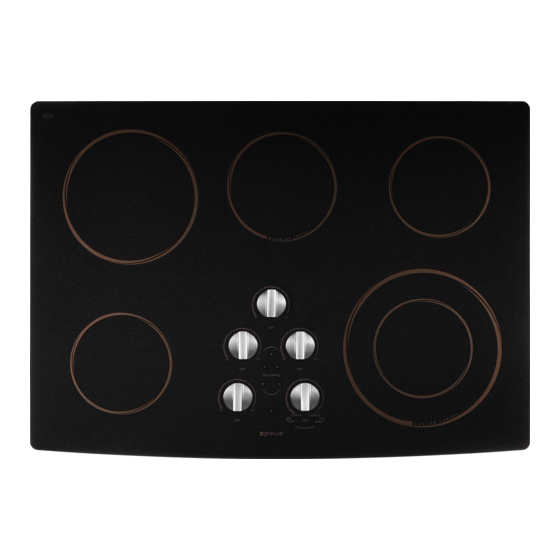

Radiant Cooktop
Models JEC9530 & JEC9536
(Dimensions shown in both inches and centimeters)
Notice To Installer: Leave these instructions with the appliance.
403 WEST FOURTH STREET, NORTH D NEWTON, IA 50208
JEC9530
FOUR-ELEMENT RADIANT COOKTOPS
DIMENSIONS
inches
A
29-1/16 + 1/16
B
20-3/8 + 1/16
C
2-1/8
D
4-1/4 min. clear
E
29-15/16
F
21-1/2
G
3-5/8
JEC9536
FIVE-ELEMENT RADIANT COOKTOPS
DIMENSIONS
inches
A
34-9/16 + 1/16
B
20-3/8 + 1/16
C
2-1/8
D
4-1/4 min. clear
E
35-5/16
F
21-1/2
G
3-5/8
IMPORTANT
CUTOUT
DIMENSIONS ARE
CRITICAL
cm
74.0 + 0.2
51.9 + 0.2
5.4
10.8
76.0
54.6
7.6
cm
87.9 + 0.2
51.9 + 0.2
5.4
10.8
89.7
54.6
7.6
8101P495-60
(01-03-00)
