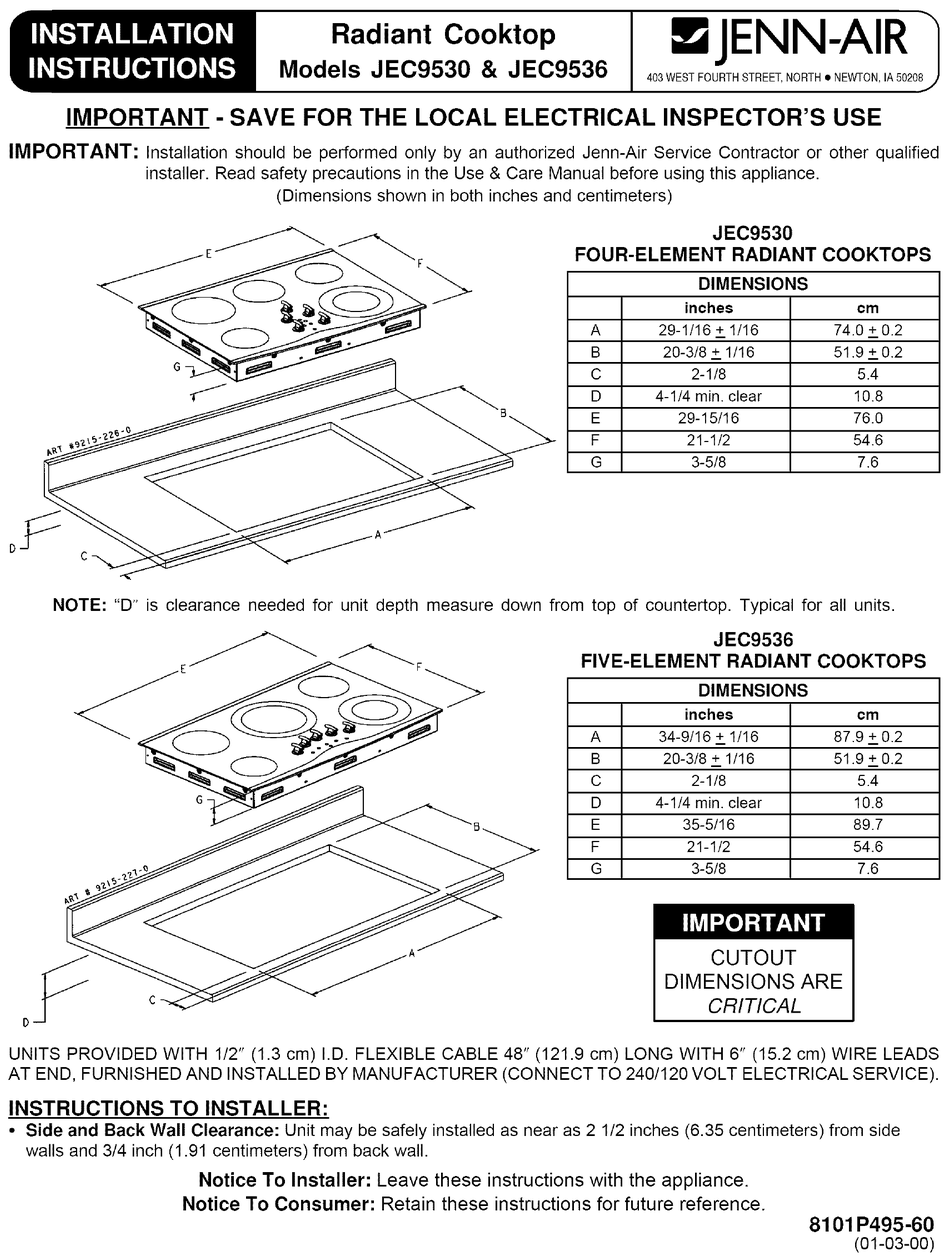

INSTALLATION

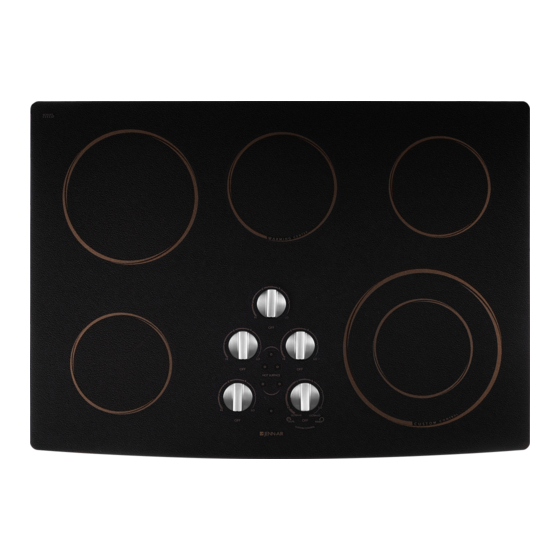

Radiant Cooktop
m4 JENN-AIR
INSTRUCTIONS
Models
J EC9530
&
J EC9536
403 WEST FOURTH STREET, NORTH @ NEWTON, [A 50208
IMPORTANT - SAVE FOR THE LOCAL ELECTRICAL INSPECTOR'S USE
IMPORTANT:
Installation should be performed only by an authorized Jenn-Air Service Contractor or other qualified
installer. Read safety precautions in the Use & Care Manual before using this appliance.
(Dimensions shown in both inches and centimeters)
JEC9530
FOUR-ELEMENT
RADIANT COOKTOPS
DIMENSIONS
inches
cm
A
29-1/16 + 1/16
74.0+0.2
B
20-3/8 + 1/16
51.9+0.2
Cc
2-1/8
5.4
D
4-1/4 min. clear
10.8
E
29-15/16
76.0
F
21-1/2
54.6
G
3-5/8
7.6
JEC9536
FIVE-ELEMENT RADIANT COOKTOPS
DIMENSIONS
inches
cm
A
34-9/16 + 1/16
87.9+0.2
B
20-3/8 + 1/16
51.9+0.2
Cc
2-1/8
5.4
D
4-1/4 min. clear
10.8
E
35-5/16
89.7
F
21-1/2
54.6
G
3-5/8
7.6
IMPORTANT
CUTOUT
DIMENSIONS ARE
CRITICAL
UNITS PROVIDED WITH 1/2" (1.3 cm) |.D. FLEXIBLE CABLE 48" (121.9 cm) LONG WITH 6" (15.2 cm) WIRE LEADS
AT END, FURNISHED AND INSTALLED BY MANUFACTURER (CONNECT TO 240/120 VOLT ELECTRICAL SERVICE).
INSTRUCTIONS TO INSTALLER:
¢ Side and Back Wall Clearance: Unit may be safely installed as near as 2 1/2 inches (6.35 centimeters) from side
walls and 3/4 inch (1.91 centimeters) from back wall.
Notice To Installer: Leave these instructions with the appliance.
Notice To Consumer:
Retain these instructions for future reference.
8101P495-60
(01-03-00)
