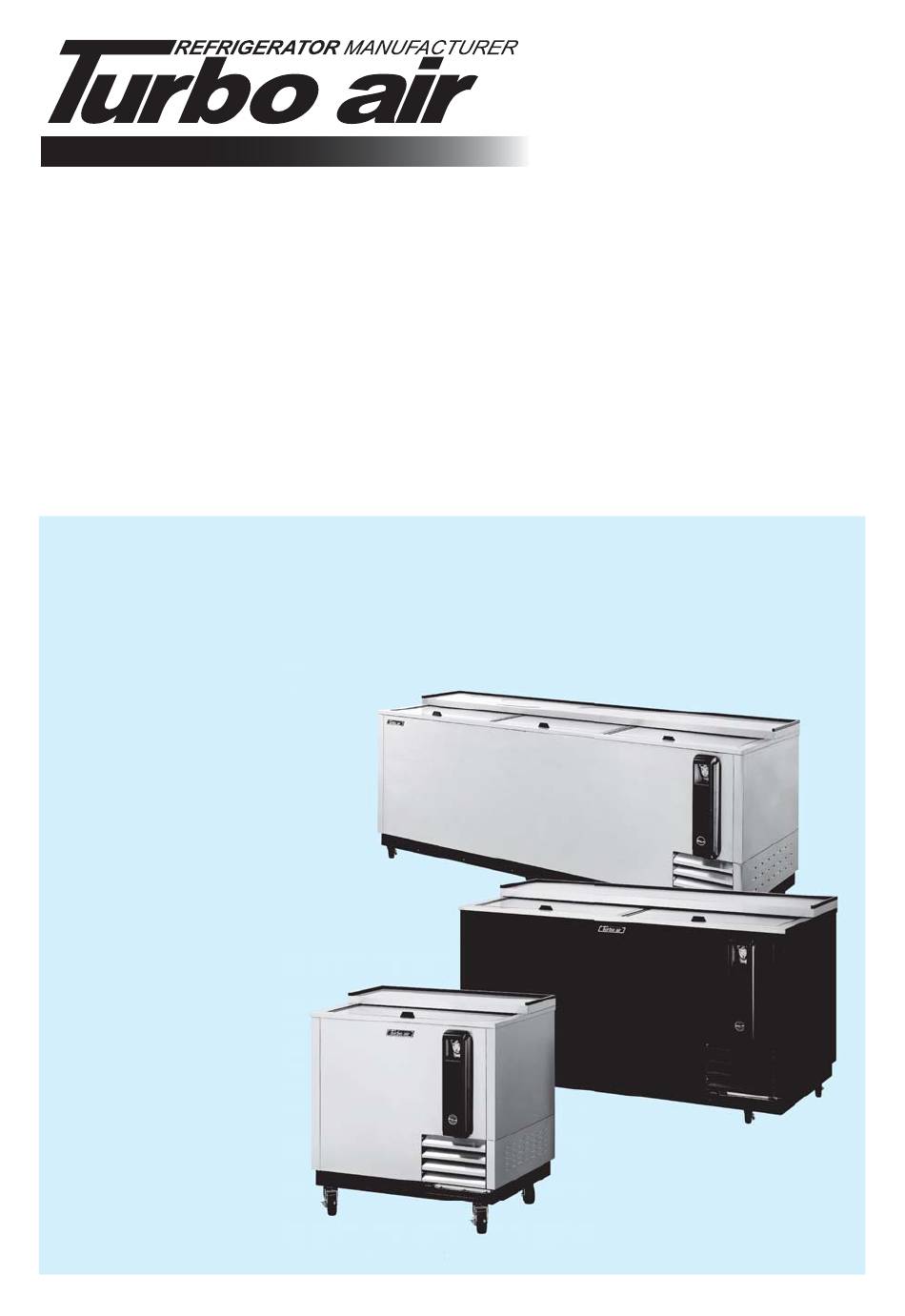

Installation and Operation Manual

Please read this manual completely before attempting to install or operate this equipment!

TBC-24SD

TBC-24SB

TBC-36SD

TBC-36SB

TBC-50SD

TBC-50SB

TBC-65SD

TBC-65SB

TBC-80SD

TBC-80SB

TBC-95SD

TBC-95SB

SD series: Stainless Steel Exterior

SB series: Black Laminated Vinyl Exterior or Black Powder Coating Exterior

or Black Powder Coating Exteri r r or

www.turboairinc.com

Need help?

Do you have a question about the TBC-24SB and is the answer not in the manual?

Questions and answers

Summary of Contents for Turbo Air TBC-24SB

Page 1 Turbo Air Speeds up the Pace of Innovation Underbar Equipment Bottle Coolers Installation and Operation Manual Please read this manual completely before attempting to install or operate this equipment! TBC-24SD TBC-24SB TBC-36SD TBC-36SB TBC-50SD TBC-50SB TBC-65SD TBC-65SB TBC-80SD TBC-80SB TBC-95SD...
Page 2 CONTENTS PAGE SPECIFICATIONS SERIAL NUMBER INSTALLATION OF THE BOTTOM SHELVES INSTALLATION OF THE DIVIDERS INSTALLATION OF THE OPENER KIT HOW TO USE THE BOTTLE OPENER INSTALLATION CLEANING & CAUTION BASIC OPERATION TROUBLESHOOTING WARRANTY 11-13 SPECIFICATIONS Horizontal Bottle Coolers MODEL COMP H.P. V/Hz REFRIGERANT AMPS...
Page 3 INSTALLATION OF THE BOTTOM SHELVES 1) Before adding cans or bottles to cooler, please install bottom shelves. 2) Then install dividers (see page 4). * Note: The size and quantities of the bottom shelves can be different according to model number.
Page 4 INSTALLATION OF THE DIVIDERS 1) To re-position divider, push back wards. 2) Spring in back of divider point ʻCʼ will be shorten to about 1/2 inch. 3) Front of divider will be able to remove from point ʻAʼ and ʻBʼ. 4) Position divider in the hole, point ʻCʼ...
Page 5 INSTALLATION OF THE OPENER KIT 1) Bottle opener kit is inside cabinet. 2) On the front outside wall of bottle cooler, there are screws. 3) Hook the opener kit onto the screws, like drawing 1. 4) Push down so head of screw will insert into smaller opening, like drawing 2. 5) To detach it, follow above list in the reverse order.
Page 6 HOW TO USE THE BOTTLE OPENER 1. In direction of arrow. 2. Grip the bottle tightly so it will not fall on removing cap. 3. The cap will drop to bottom of opener case. 4. When opener case is full, separate from cabinet. 5.
Page 7 1. GOOD AIR CIRCULATION - Do not place any object that will restrict air flow in front or back grills - Turbo air highly recommends that there is ample space in rear of unit. 3 inches or more is best 2.
Page 8 CLEANING Before cleaning, turn unit off at power switch. 1. CLEANING THE INTERIOR AND EXTERIOR - The interior and exterior of the unit can be cleaned using warm water with soap - Do not use an abrasive cleaner because it will scratch the surface 2.
Page 9 BASIC OPERATION TBC-24SD, TBC-24SB TBC-36SD, TBC-36SB TBC-50SD, TBC-50SB TBC-65SD, TBC-65SB TBC-80SD, TBC-80SB TBC-95SD, TBC-95SB 1. The controller(thermostat) is located at the right inside of the unit. 2. The factory setting for the control is ʻ5ʼ, and maintains about 38˚F (3˚C) inside.
Page 10 TROUBLESHOOTING SYMPTOMS CAUSES SOLUTIONS Cooler is freezing • Thermostat set too cold. • Turn the temperature dial to a products warmer setting. The unit does not • There is a power connection • Check the power cord to make refrigerate at all failure problem.
Page 11 THREE YEAR WARRANTY Turbo Air warrants to the original purchaser of every new Turbo Air refrigerated unit, the cabinet and all parts thereof, to be free from defects in material or workmanship, under normal use and service, for a period of three (3) year from the date of original installation or 39 months after shipment date from Turbo Air , whichever occurs first.
Page 12 3. ALTERATION, NEGLECT, ABUSE, MISUSE, ACCIDENT, DAMAGE DURING TRANSIT OR INSTALLATION, FIRE, FLOOD, ACTS OF GOD. TURBO AIR is not responsible for the repair or replacement of any parts that Turbo Air determines have been subjected after the date of manufacture to alteration, neglect, abuse, misuse, accident, damage during transit or installation, fire, flood, or an Act of God.
Page 13 (3) year from the date of original installation or 39 months after shipment date from Turbo Air, whichever occurs first. Any part, covered under this warranty, that are by Turbo Air to have been defective within three (3) year of original installation or thirty-nine (39) months after shipment date from manufacturer, whichever occurs first, is limited to the repair or replacement, including labor charges, of defective parts or assemblies.
