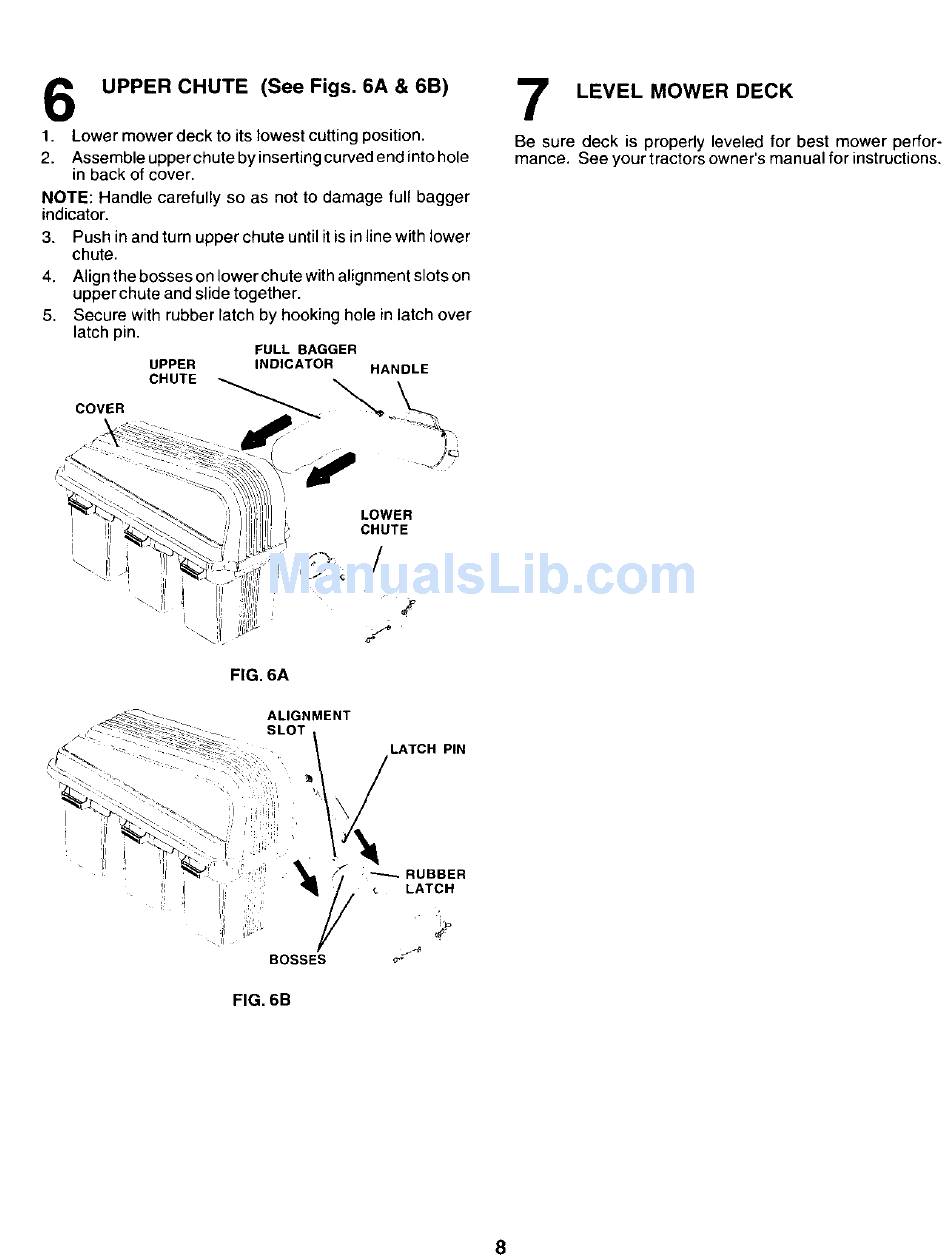

UPPER CHUTE (See Figs. 6A & 6B)
1. Lower mower deck to its lowest cutting position.
2. Assemble upperchute by inserting curved end intohole
in back of cover.
NOTE: Handle carefully so as not to damage full bagger
indicator.
3.
4.
5.
Push in and turn upper chute until it is in line with lower
chute.
Align the bosses on lower chute with alignment slots on
upper chute and slide together.
Secure with rubber latch by hooking hole in latch over
latch pin.
FULL BAGGER
UPPER INDICATOR HANDLE
CHUTE _ _ _2_.
COVER ,_,
LEVEL MOWER DECK
Be sure deck is properly leveled for best mower perfor-
mance. See your tractors owner's manual for instructions.
FIG. 6A
LOWER
CHUTE
/
ALIGNMENT
LATCH PIN
FIG. 6B
