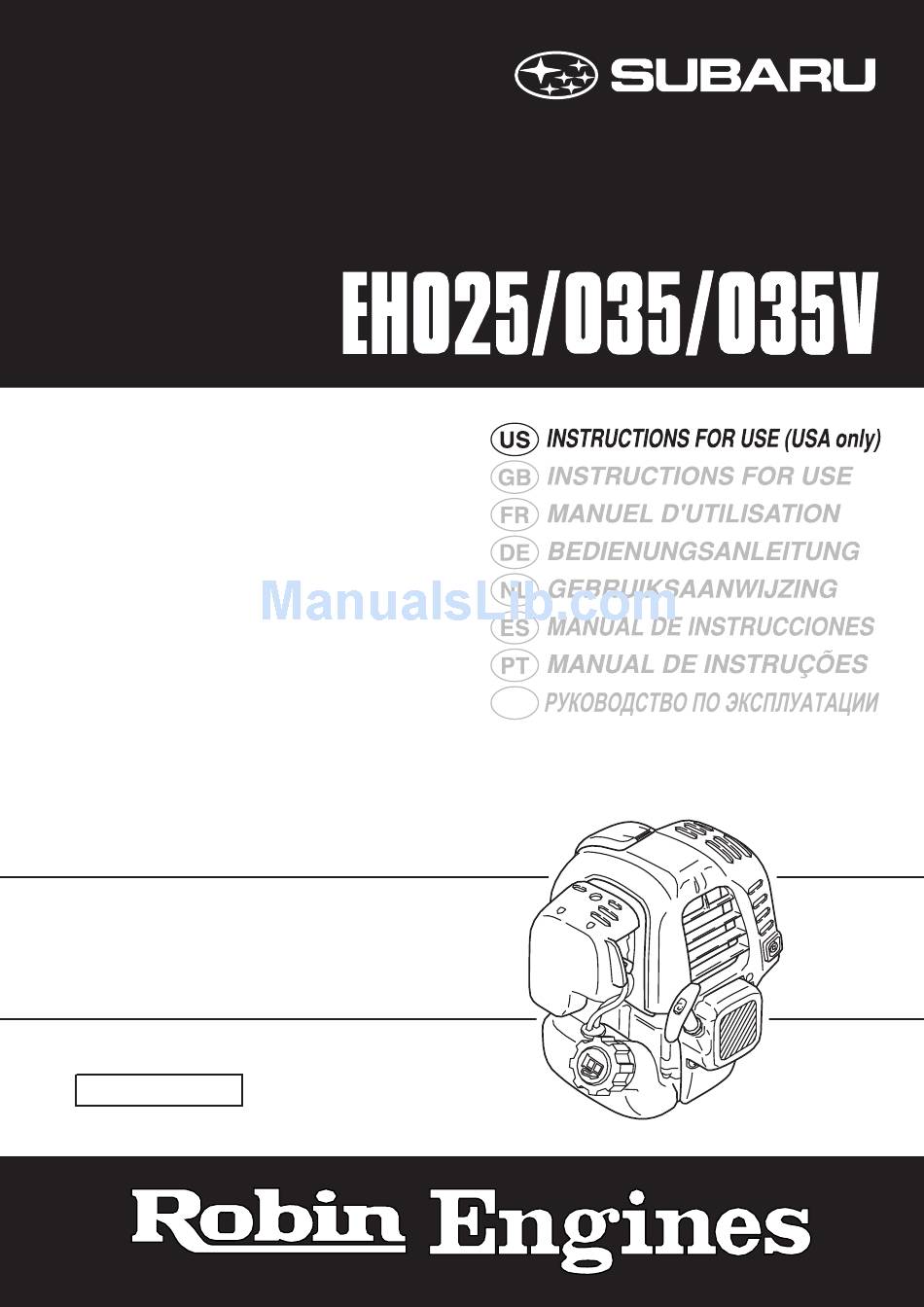

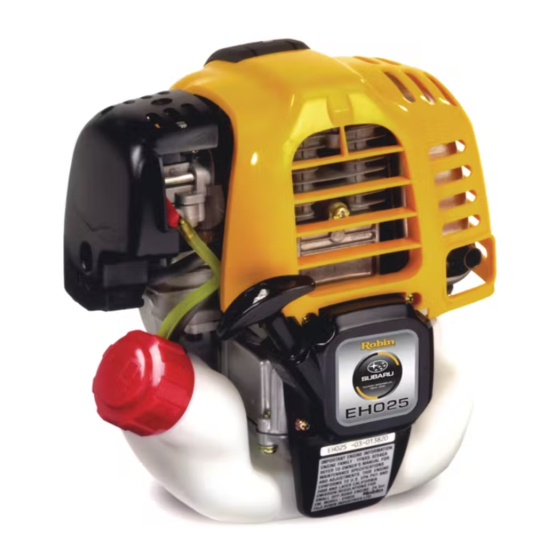

  • Page 1 MODEL 2ZZ9990082...

  • Page 2: Air Index

    WARNING : The engine exhaust from this product contains chemicals known to the State of California to cause cancer, birth defects or other reproductive harm. NOTICE FEDERAL EMISSION COMPONENT DEFECT WARRANTY and CALIFORNIA EMISSION CONTROL WARRANTY are applicable to only those engines complied with EPA (Environmental Protection Agency) and CARB (California Air Resources Board) emission regulations in the U.S.A.
  • Page 3 FEDERAL EMISSIONS COMPONENT DEFECT WARRANTY EMISSIONS COMPONENT DEFECT WARRANTY COVERAGE - This emission warranty is applic- able in all States, except the State of California Fuji Heavy Industries Ltd. and Robin America Inc., Wood Dale Illinois, (herein "ROBIN AMERICA") warrant(s) to the initial retail purchaser and each subsequent owner, that this Nonroad engine (herein "engine") has been designed, built, and equipped to conform at the time of initial sale to all applicable regulations of the U.S.
  • Page 4 *The replacement parts used for required maintenance services. *Consequential damages such as loss of time, inconvenience, loss of use of the engine or equip- ment, etc. *Diagnosis and inspection charges that do not result in warranty-eligible service being performed. *Any non-authorized replacement part, or malfunction of authorized parts due to use of non-autho- rized parts.
  • Page 5 CALIFORNIA EMISSION CONTROL WARRANTY STATEMENT YOUR WARRANTY RIGHTS AND OBLIGATIONS The California Air Resources Board and Fuji Heavy Industries Ltd. (herein "FUJI") are pleased to explain the emission control system warranty on your 2005 and later Small Off-Road engine (herein "engine"). In California, new engine must be designed, built and equipped to meet the State's stringent anti-smog standards.

  • Page 6: Limited Warranty

    LIMITED WARRANTY on Emission Control Systems - California Only - FUJI warrants to the owner of the 2005 and later engine that the engine (1)has been designed, built and equipped so as to conform at the time of manufacture with the applicable regulations of the California Air Resources Board, and (2) is free from defects in materials and workmanship that could cause it to fail to conform with those regulations as may be applicable in the terms and conditions stated below.
  • Page 7 (4) repairs performed outside of the authorized warranty service dealers (5) use of parts which are not authorized by FUJI. 2. Add-on or modified parts This warranty does not cover any part that malfunctions, fails or is damaged due to alter- ations by changing, adding to or removing parts from the engine.
  • Page 8 (5) Miscellaneous Items Used in Above Systems (i)Electronic controls, if applicable (ii)Hoses, belts, connectors, and assemblies. (iii) Filter lock assy (gaseous fuel, if applicable) I. MAINTENANCE STATEMENTS It is your responsibility to have all scheduled inspection and maintenance services performed at the times recommended in the 2005 and later Owner's Manual and to retain proof that inspection and maintenance services are performed at the times when recommended.
  • Page 9 FOREWORD Thank you very much for purchasing a ROBIN ENGINE. Your ROBIN ENGINE can supply the power to operate various sorts of machines and equipment. Please take a moment to familiarize yourself with the proper operation and maintenance procedures in order to maximize the safe and efficient use of this product.

  • Page 10: Table Of Contents

    CONTENTS 1. SAFETY PRECAUTIONS 2. COMPONENTS 3. PRE-OPERATION CHECKS 4. OPERATING YOUR ENGINE 5. EASY TROUBLESHOOTING 6. MAINTENANCE SCHEDULE 7. "HOW-TO" MAINTENANCE 8. PREPARATIONS FOR STORAGE 9. SPECIFICATIONS...
  • Page 11 SYMBOLS Read the owner's manual. Stay clear of the hot surface. Exhaust gas is poisonous. Do not operate in an unventilated area. Stop the engine before refueling. Fire, open flame and smoking prohibited. Plus ; On (Run) positive polarity Off (Stop) Battery Engine start Engine oil...

  • Page 12: Safety Precautions

    1. SAFETY PRECAUTIONS Please make sure you review each precaution carefully. Pay special attention to statement preceded by the following words. “WARNING” indicates a strong possibility of severe personal injury or loss WARNING of life if instructions are not followed. CAUTION “CAUTION”...
  • Page 13 WARNING : OTHER SAFETY PRECAUTIONS Place the protective covers over the rotating parts. If rotating parts such as the drive shaft, pulley, belt, etc. are left exposed, they are potentially hazardous. To prevent injury, equip them with protective covers or shrouds. Be careful of hot parts.
  • Page 14 CAUTION : PRE-OPERATION CHECKS Carefully check fuel hoses and joints for looseness and fuel leakage. Leaked fuel creates a potentially dangerous situation. Check bolts and nuts for looseness. A loose bolt or nut may cause serious engine trouble. Check the engine oil and refill if necessary. Check the fuel level and refill if necessary.

  • Page 15: Components

    2. COMPONENTS EH025 Plug cover Air cleaner Stop switch Clutch Fuel tank cap P.T.O. Shaft Fuel tank A Type P Type (Pump) Choke lever Carburetor Muffler Primer pump Oil gauge ( Oil filler ) Starter handle Recoil starter Engine serial No. - 4 -...
  • Page 16 EH035 Plug cover Air cleaner Clutch Fuel tank cap Fuel tank P.T.O. Shaft A Type Carburetor P Type (Pump) Choke lever Primer pump Muffler Starter handle Oil gauge (Oil filler) Recoil starter - 5 -...
  • Page 17 EH035V Fuel tank cap Fuel upper level upper level Fuel tank Oil drain screw Spark plug (Plug cap) Muffler Carburetor Choke lever Primer pump Starter handle Air cleaner Oil gauge (Oil filler) Clutch Fuel tank Fuel tank cap Recoil starter - 6 -...

  • Page 18: Pre-Operation Checks

    3. PRE-OPERATION CHECKS CHECK ENGINE OIL Oil gauge Before checking or refilling engine oil, be sure the engine is located on a stable, level surface and stopped. Do not thread the gauge into oil filler to check oil level. Upper level If the oil level is below the lower level Lower level line on the dipstick, refill with the proper...

  • Page 19: Operating Your Engine

    4. OPERATING YOUR ENGINE STARTING STOP SWITCH PRIMER PUMP Set the throttle lever to the idling position. If the stop switch is installed on the engine.Set the stop switch to the Push the primer pump 7 to 10 times position "ON or I ". to feed the fuel to the carburetor.

  • Page 20: Choke Lever

    STOPPING STOP SWITCH CHOKE LEVER Set the throttle lever at the low speed position and allow the engine to run at low speed for 2 or 3 minutes before stopping. If the stop switch is installed on the engine.Set the stop switch to the After starting the engine, gradually position "OFF or O ".

  • Page 21: Easy Troubleshooting

    5. EASY TROUBLESHOOTING WHEN ENGINE DOES NOT START: Perform the following checks before you take the engine to your Robin dealer. If you still have trouble after completing the checks, take the engine to your nearest Robin dealer. Is the engine switch set ON? Is there enough compression? 1.

  • Page 22: Maintenance Schedule

    6. MAINTENANCE SCHEDULE MAINTENANCE, REPLACEMENT OR REPAIR OF EMISSION CONTROL DEVICES AND SYSTEMS MAY BE PERFORMED BY ANY NON-ROAD ENGINE REPAIR ESTABLISHMENT OR INDIVIDUAL. DAILY INSPECTION Before running the engine, check the following service items. Excessive vibration,noise Clean air cleaner element Safe surroundings Enough gasoline Enough clean engine oil...
  • Page 23 Periodic Maintenance Schedule table Every 8 hours Every Every Maintenance Items 200 hours (daily) 50 hours Clean engine and check bolts and nuts (Daily) (Refill daily Check and refill engine oil up to upper level) Clean air cleaner Change engine oil (*Note 1) (Initial 20 hours) Clean spark plug...

  • Page 24: How-To" Maintenance

    7. "HOW-TO" MAINTENANCE INSPECTING THE SPARK PLUG Clean off carbon deposits on the spark plug electrode using a plug cleaner or wire brush. Check electrode gap. Adjust gap 0.7 mm to 0.8 mm 0.7 to 0.8 mm (0.03 inches) (0.03 in.) Use a proper spark plug : NGK CMR6A ENGINE OIL CHANGE...
  • Page 25 3) Remove the oil gauge, then tilt the engine and drain the oil into a pan or other receptacle. (EH035V) Remove the oil drain screw and drain the oil. 4) Put the engine on a level surface, then fill with the oil up to the point of overflowing the filler neck.
  • Page 26 CLEANING FUEL FILTER Remove the hose clamp and pull out the fuel filter from fuel pipe. Wash the fuel filter with kerosene. After washing, reassemble it. If the fuel filter is heavy dirty, replace it with new one. CLEANING AIR CLEANER EH025 Choke lever Dirty air cleaner element will cause...
  • Page 27 CHECKING BOLTS, NUTS AND SCREWS Retighten loose bolts and nuts. Check for fuel and oil leaks. Replace damaged parts with new ones. Keep safety in your mind. FUEL PIPE REPLACEMENT Replace the fuel pipe every 1 year. If the fuel leakage is found on the fuel pipe, replace it immediately.

  • Page 28: Preparations For Storage

    8. PREPARATIONS FOR STORAGE DISCHARGE FUEL (NO SMOKING !) In case the engine is not going to be used for more than one month, discharge fuel thoroughly from fuel tank and carburetor in order to prevent from hard starting and/or poor engine opera- tion due to deteriorated fuel when you use the engine next time.

  • Page 29: Specifications

    9. SPECIFICATIONS MODEL EH025A EH025P EH035A EH035P EH035V Air-Cooled, 4-Stroke, Single Cylinder, Overhead valve, Type Gasoline Engine Bore x Stroke in.(mm) 1.34 x 1.06 (34 x 27) 1.54 x 1.10 (39 x 28) Displacement cu. in. (cm 1.49 (24.5) 2.04 (33.5) Maximum Output 0.81 (1.1) / 7000 1.18 (1.6) / 7000...
  • Page 30 ISSUE EMD-EU2089 PRINTED IN JAPAN March 2005 CE-...
