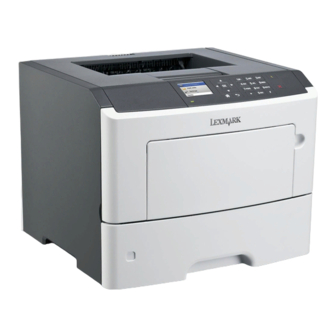

Lexmark MS510 Series Service Manual
Machine type 4514-630,
4514-635, 4514-636
Hide thumbs
Also See for MS510 Series:
- Service manual (344 pages) ,
- User manual (255 pages) ,
- Manual (20 pages)
Related Manuals for Lexmark MS510 Series
Summary of Contents for Lexmark MS510 Series
-
Page 1: Service Manual
Lexmark MS510 & MS610 Series Machine Type 4514-630, -635, -636 Service Manual • Start diagnostics • Maintenance • Safety and notices • Trademarks • Index October 17, 2012 www.lexmark.com P/N 12G2826... -
Page 2: Parts Catalog
4514-630, -635, -636 Parts catalog Legend The following column headings are used in the parts catalog: • Asm‑index—Identifies the item in the illustration. • Part number—Identifies the unique number that correlates with the part. • Units/mach—Refers to the number of units actually used in the base machine or product. •... -
Page 3: Assembly 1: Covers
4514-630, -635, -636 Assembly 1: Covers Parts catalog... - Page 4 4514-630, -635, -636 Assembly 1: Covers Asm-index Units/mach Units/FRU Description Removal procedure 40X8520 Dust cover (250‑sheet tray) “Dust cover removal” on page 240 40X8521 Dust cover (550‑sheet tray) “Dust cover removal” on page 240 40X8054 Rear door and cover “Rear door and cover removal”...
- Page 5 4514-630, -635, -636 Asm-index Units/mach Units/FRU Description Removal procedure 40X8061 Control panel cover and buttons “Control panel assembly removals” on page 201 (MS610dn) “UICC removals” on Note: Does not include the UICC. page 205 40X8066 Bezel (MS510dn) “Bezel removals” on page 197 40X8067 Bezel (MS610dn)
- Page 6 4514-630, -635, -636 Parts catalog...
-
Page 7: Assembly 2: Electronics
4514-630, -635, -636 Assembly 2: Electronics 1 Parts catalog... - Page 8 4514-630, -635, -636 Assembly 2: Electronics 1 Asm-index Units/mach Units/FRU Description Removal procedure 40X8081 Laser scanning unit “Laser scanning unit (LSU) removal” on page 246 40X8343 Fuser, 100 V “Fuser removal” on page 244 40X8023 Fuser, 110 V “Fuser removal” on page 244 40X8024 Fuser, 220 V “Fuser removal”...
-
Page 9: Assembly 3: Electronics
4514-630, -635, -636 Assembly 3: Electronics 2 Parts catalog... - Page 10 4514-630, -635, -636 Assembly 3: Electronics 2 Asm-index Units/mach Units/FRU Description Removal procedure 40X8048 Front door sensor “Front door sensor removal” on page 218 40X8266 Cartridge smart chip contact “Toner cartridge smart chip contact removal” on page 188 40X8046 Toner density sensor “Toner density sensor removal”...
-
Page 11: Assembly 4: Frame
4514-630, -635, -636 Assembly 4: Frame Parts catalog... - Page 12 4514-630, -635, -636 Assembly 4: Frame Asm-index Units/mach Units/FRU Description Removal procedure 40X5364 Transfer roll “Transfer roll removal” on page 193 40X8298 Redrive assembly (MS510dn) “Redrive assembly removal” on page 243 40X8437 Redrive assembly (MS611dn) “Redrive assembly removal” on page 243 40X8438 Redrive assembly (MS611de) “Redrive assembly removal”...
-
Page 13: Assembly 5: Option Trays
4514-630, -635, -636 Assembly 5: Option trays Parts catalog... - Page 14 4514-630, -635, -636 Assembly 5: Option trays Asm-index Units/opt Units/FRU Description Removal procedure 40X8287 250-sheet tray 40X8286 550-sheet tray 40X8520 Dust cover, 250‑sheet tray “Dust cover removal” on page 240 40X8521 Dust cover, 550‑sheet tray “Dust cover removal” on page 240 40X8262 ACM assembly “ACM assembly removal”...
- Page 15 4514-630, -635, -636 Assembly 6: Maintenance kits Asm-index Units/mach Units/FRU Description Removal procedure 40X8439 Maintenance kit, 100 V (MS510dn) • 100 V fuser (40X8343) • Paper exit guide (40X8298) • ACM pick roll (40X8297) • Transfer roll (40X5364) • Tray separator roll assembly (40X8444) •...
- Page 16 4514-630, -635, -636 Asm-index Units/mach Units/FRU Description Removal procedure 40X8435 Maintenance kit, 220 V (MS610dn) • 220 V fuser (40X8024) • Paper exit guide (40X8437) • ACM pick roll (40X8297) • Transfer roll (40X5364) • Tray separator roll assembly (40X8444) •...
-
Page 17: Assembly 7: Power Cords
4514-630, -635, -636 Assembly 7: Power cords Asm-index Units/mach Units/FRU Description Removal procedure 40X0269 Power cord, 2.5 m (straight)—USA, Canada 40X3141 Power cord, 2.5 m (straight)—Europe and others 40X0288 Power cord, 2.5 m (straight)—Argentina 40X0271 Power cord, 2.5 m (straight)—United Kingdom 40X0275 Power cord, 2.5 m (straight)—Israel 40X1772...
