S-Video-Out; Universal Serial Bus - HP 6710b - Compaq Business Notebook Maintenance And Service Manual

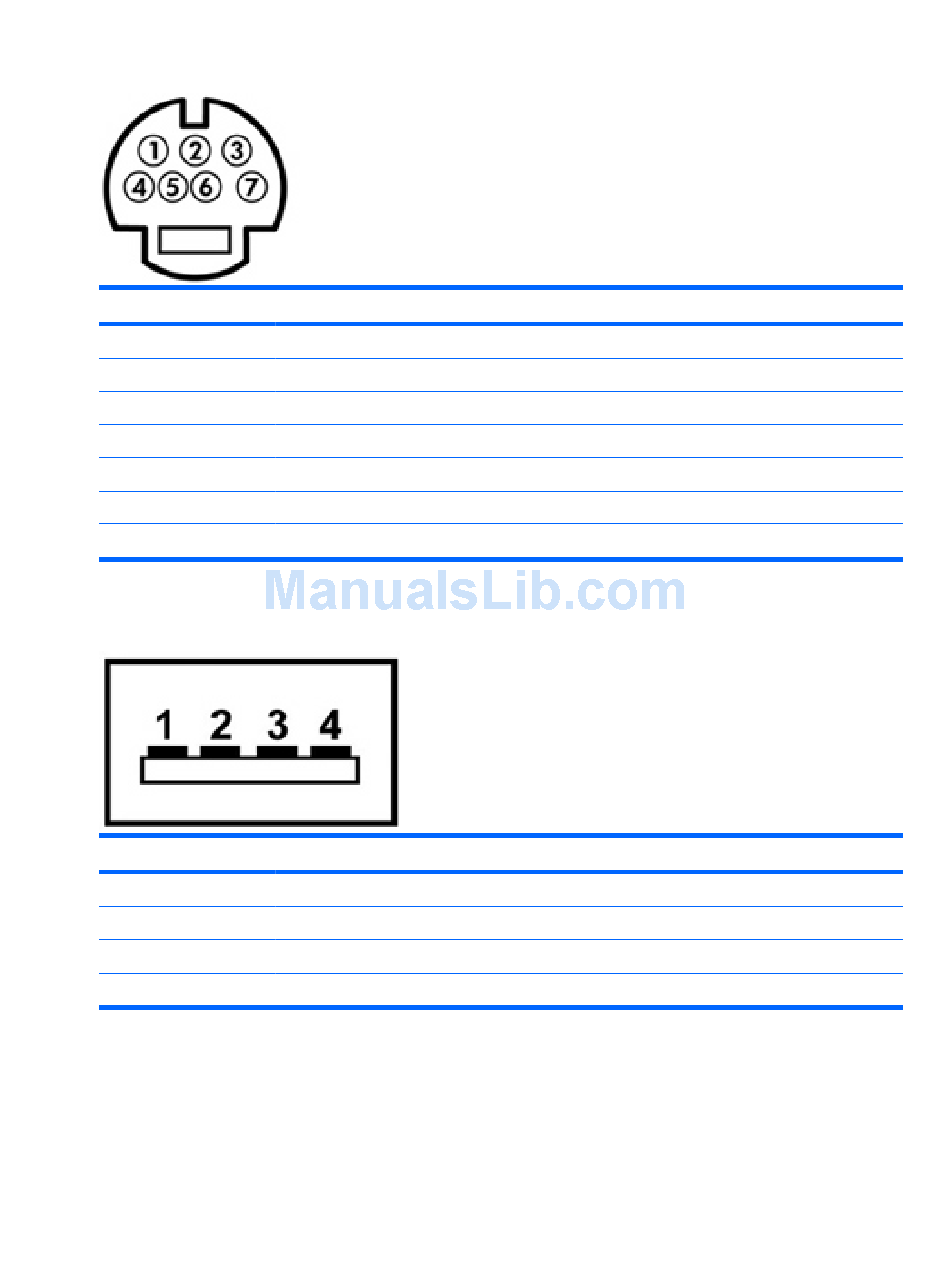

S-Video-out

Pin
1
2
3
4
5
6
7

Universal Serial Bus

Pin
1
2
3
4
148 Chapter 9 Connector pin assignments
Signal
S-VHS color (C) signal
Composite video signal
S-VHS intensity (Y) signal
S-VHS color ground
TV-CD
S-VHS intensity ground
Composite video ground
Signal
+5 VDC
Data -
Data +
Ground
