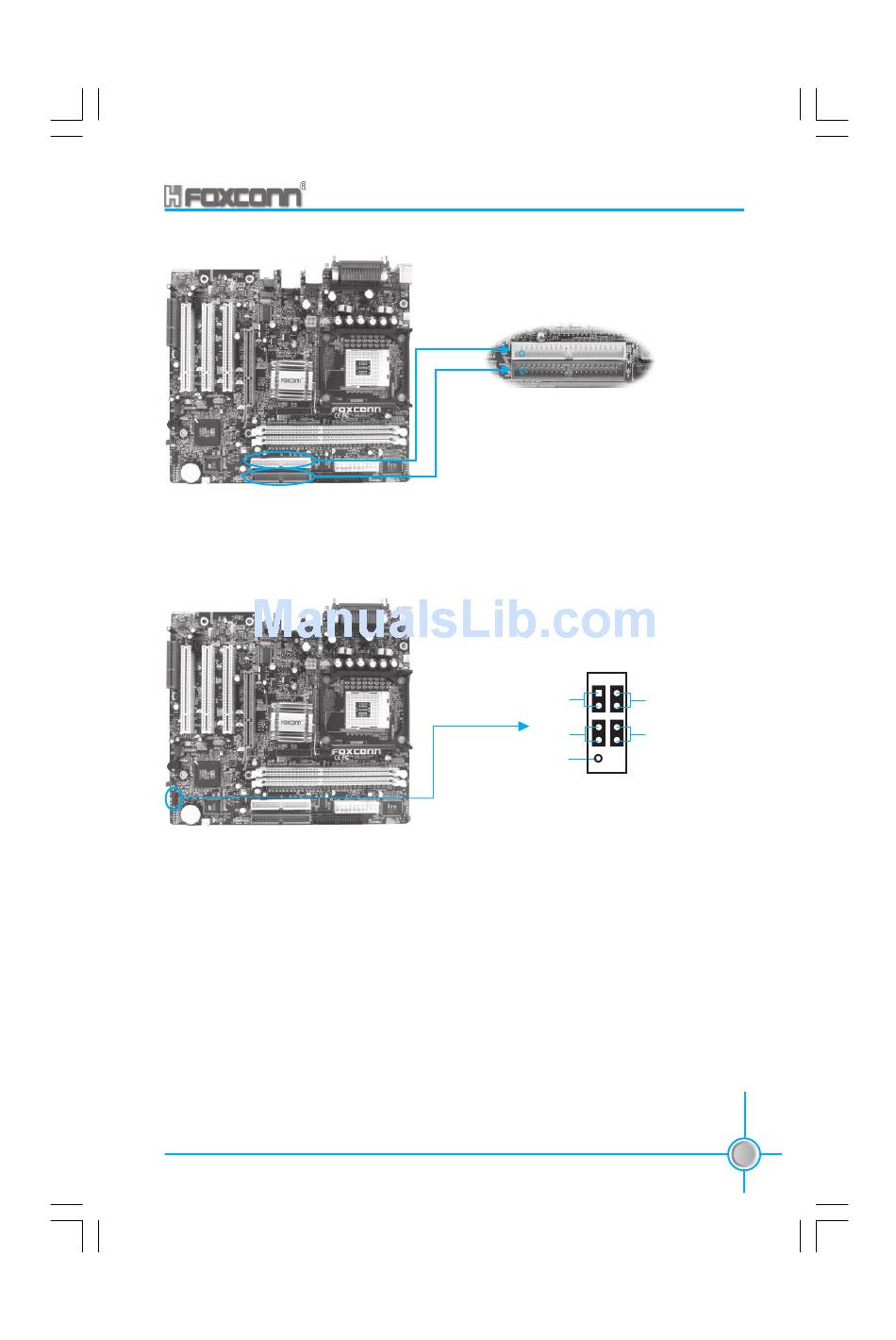

Front Panel Connector: F_P1
This motherboard includes one connector for connecting the front panel switch
and LED indicators.
Hard Disk LED Connector (HD-LED)
The connector connects to the case's IDE indicator LED indicating the activity
status of IDE hard disk.
Reset Switch (RESET)
Attach the connector to the Reset switch on the front panel of the case; the
system will restart when the switch is pressed.
Power LED Connector (PWR LED)
Attach the connector to the power LED on the front panel of the case. The Power
LED indicates the power supply's status. When the system is in S0 status, the
LED is on. When the system is in S1 status, the LED is blink; When the system
is in S3 or S5 status, the LED is off.
Chapter 2
1
661M03 Series User Manual
Installation Instructions
IDE 2
IDE 1
1
+
+
HD-LED
PWR-LED
-
-
RESET
PWR-SW
NC
F_P1
21
