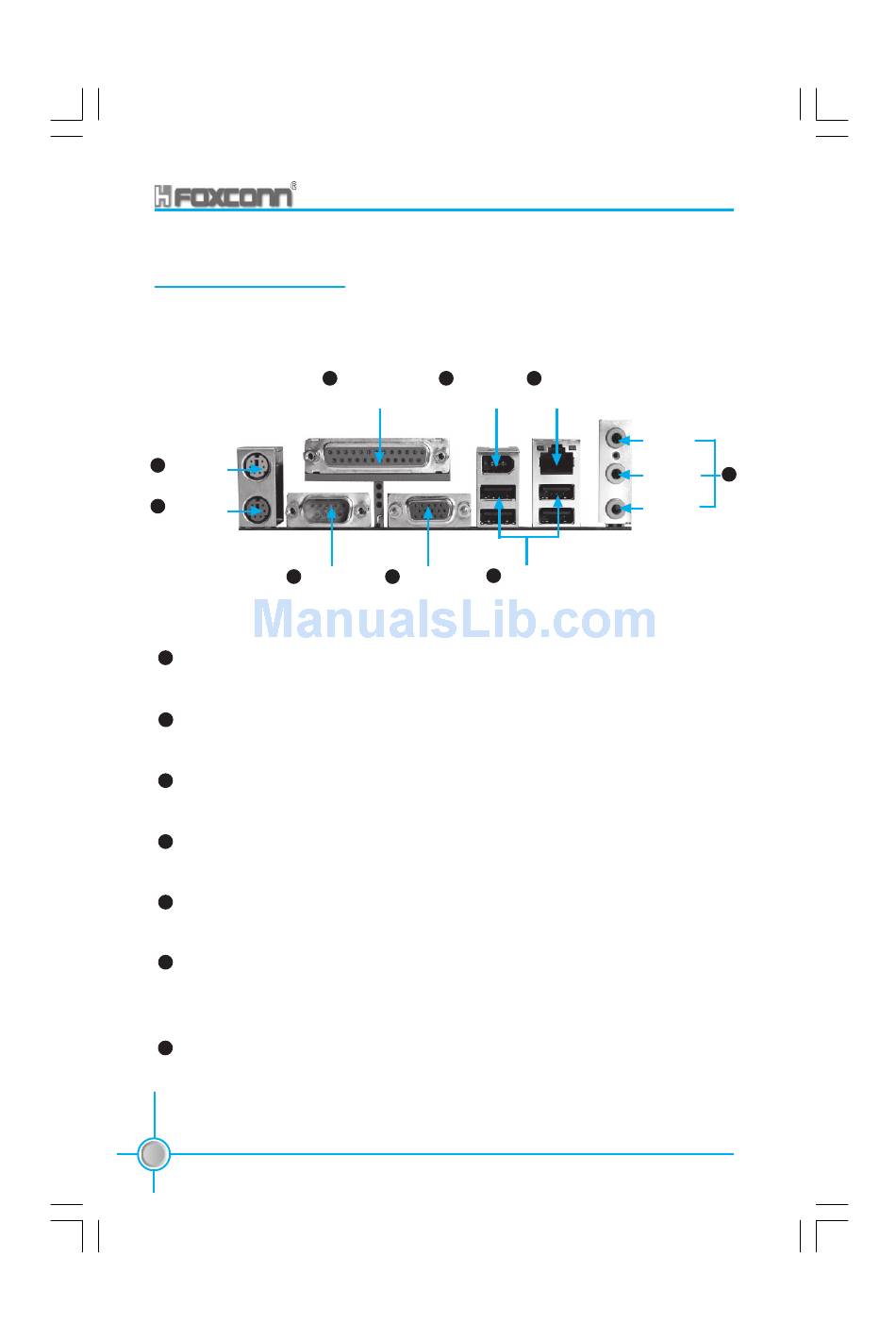

Rear Panel Connectors

This motherboard provides the ports as below:
PS/2 Mouse
1
Connector
PS/2 Keyboard
2
Connector
Serial Port
3
(COM1)
PS/2 Mouse Connector
1
This green 6-pin connector is for a PS/2 Mouse.
PS/2 Keyboard Connector
2
This purple 6-pin connector is for a PS/2 keyboard.
Serial Port (COM1)
3
This 9-pin COM1 port is for pointing devices or other serial devices.
Parallel Port (Printer Port)
4
This 25-pin port connects a parallel printer, a scanner, or other devices.
VGA Connector
5
The VGA connector is for output to a VGA-compatible device.
USB 2.0 ports
6
These four Universal Serial Bus (USB) ports are available for connecting USB 2.0/
1.1 devices.
1394 port (optional)
7
This digital interface supports electronic devices such as digital cameras,
scanners and printers.
18
Chapter 2
1394 Port
Parallel Port
4
7
(optional)
(Printer Port)
6
5 VGA Connector
661M03 Series User Manual
Installation Instructions
LAN connector
8
Line-in jack
Line-out jack
Microphone
jack
USB 2.0 Port x 4
9
