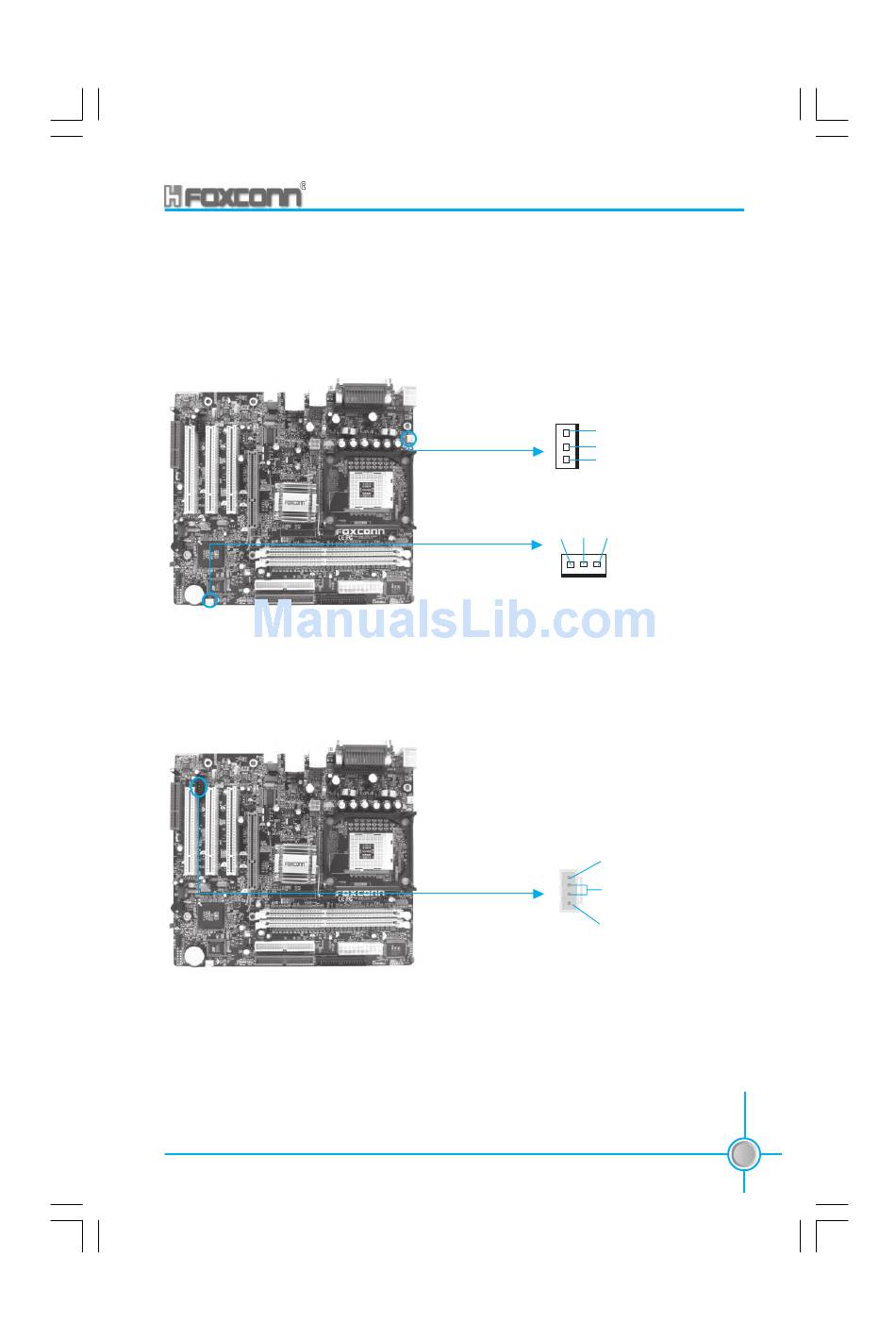

Fan Connectors: CPU_FAN, FAN1
The speed of CPU_FAN and FAN1 can be detected and viewed in "PC Health
Status" section of the CMOS SETUP. These fans will be automatically turned off
after the system enters suspend mode.
Audio Connectors: CD_IN
CD_IN is Sony standard CD audio connector, it can be connected to a CD-ROM
drive through a CD audio cable.
Chapter 2
661M03 Series User Manual
Installation Instructions
1
SENSE
CPU_FAN
+12V
GND
GND
+12V
SENSE
1
FAN1
CD_R
1
GND
CD_IN
CD_L
23
