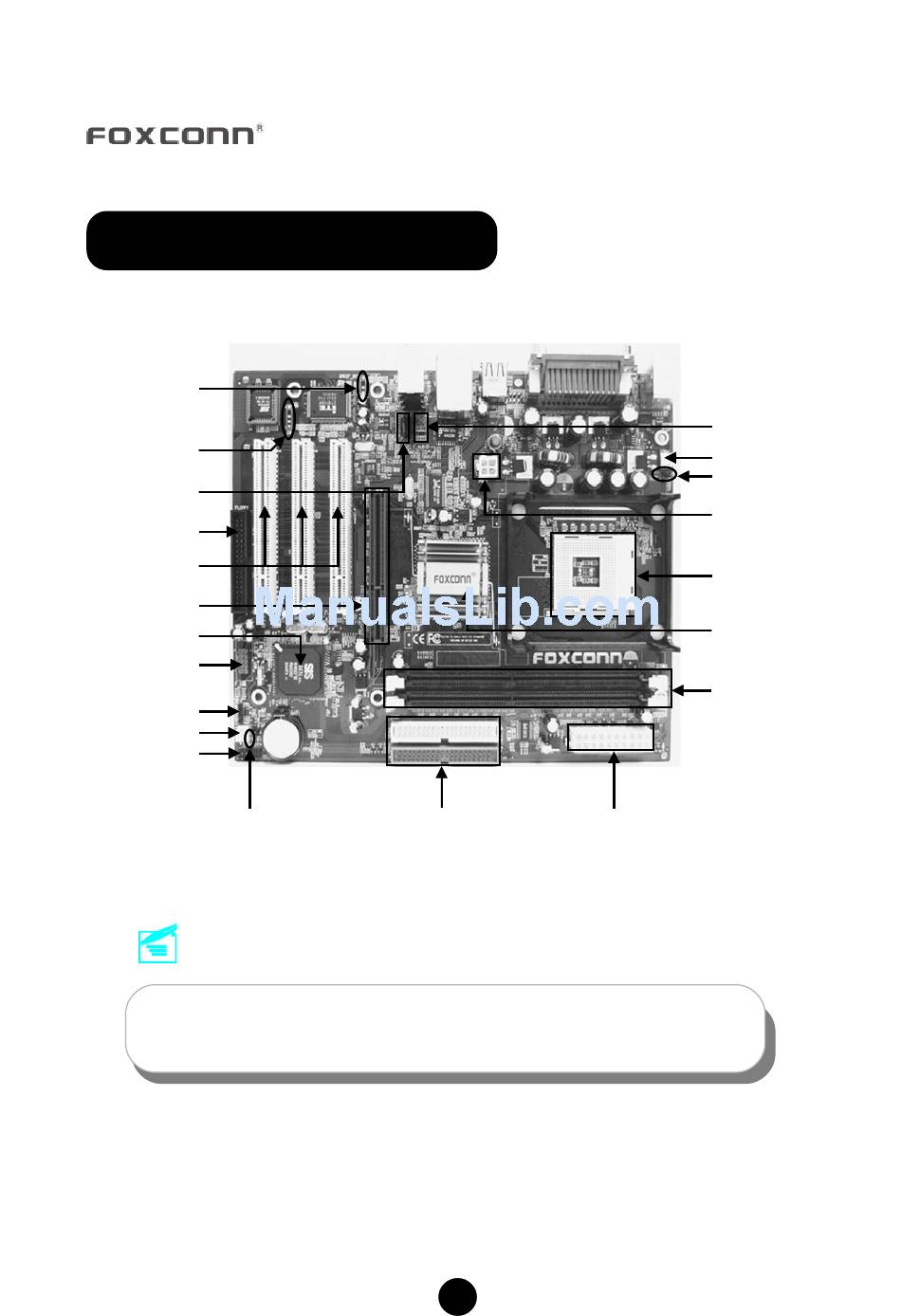

661MXPro Motherboard Layout
SPDIF_OUT
Connector (optional)
IrDA Connector
(optional)
CD-IN Connector
FDD Connector
PCI Expansion Slots
8X AGP Slot
SiS 963L Chipset
USB 2.0 Connector
Speaker Connector
SYSFAN Connector
Front Panel Connector
Clear
CMOS Jumper
Remark:
The above motherboard layout is provided for reference only;
please refer to the physical motherboard.
Easy Installation Guide
ATA 66/100/133
IDE Connectors
1
Front Audio Connector
CPU FAN Connector
CPU Model Selection
Jumper
12V ATX Power
Connector
478-pin CPU Socket
SiS 661 Chipset
184-pin DIMM Slots
ATX Power
Connector
P/N: 91-185-661-GX-0E
Advertisement
Table of Contents
Related Manuals for Foxconn 661MXPro
Summary of Contents for Foxconn 661MXPro
- Page 1 Easy Installation Guide 661MXPro Motherboard Layout SPDIF_OUT Connector (optional) Front Audio Connector IrDA Connector (optional) CPU FAN Connector CPU Model Selection CD-IN Connector Jumper 12V ATX Power FDD Connector Connector PCI Expansion Slots 478-pin CPU Socket 8X AGP Slot SiS 661 Chipset SiS 963L Chipset USB 2.0 Connector 184-pin DIMM Slots...
-
Page 2: Rear Panel
Rear Panel 661MXPro Parallel Port LAN Port (Printer Port) (optional) Line-in jack PS/2 Mouse Connector Line-out jack PS/2 Keyboard Microphone Connector jack Serial Port VGA Port USB 2.0 Ports (COM1) (optional) PS/2 Mouse Connector This green 6-pin connector is for a PS/2 mouse. PS/2 Keyboard Connector This purple 6-pin connector is for a PS/2 keyboard. -
Page 3: Accessory Checklist
Accessory Checklist Thanks for your purchasing Foxconn’s 661MXPro series motherboard. Please carefully check the package; if there are any missing or damaged items, contact your distributor as soon as possible. 661MXPro motherboard (x1) Foxconn Utility CD (x1) Easy Installation Guide (x1) - Page 4 1. Clear CMOS Jumper: CLS_CMOS You can clear CMOS to restore default system setting. To clear the CMOS, follow the procedures described below. 1. Turn off the system and unplug the AC power. 2. Remove ATX power cable from PWR1 connector. 3.
-
Page 5: Front Audio Connector
3. CPU FAN & FAN1 Plug the CPU cooling fan cable into the 3-pin CPU FAN power supply on the motherboard. Connect the case cooling fan connector to FAN1. SENSE +12V CPU FAN +12V SENSE FAN1 4. Front Audio Connector The audio interface provides two kinds of audio output choices: the Front Audio, the Rear Audio. -
Page 6: Front Panel Connector
5. CD_IN Connector CD_IN is Sony standard CD audio connector, it can be connected to a CD-ROM drive through a CD audio cable. CD_L CD_R CD_IN 6. Front Panel Connector Attach the power LED, IDE LED, reset switch and power switch connectors to the corresponding pins. -
Page 7: Speaker Connector
7. Speaker Connector The speaker connector is used to connect the speaker of the chassis. SPK(pull high) Empty SPKJ SPEAKER 8. SPDIF Out Connector (optional) The SPDIF output connector is capable of providing digital audio to external speakers, or compressed AC3 data to an external Dolby digital decoder. Empty SPDIF_OUT SPDIF_OUT... -
Page 8: Usb Connector
9. USB Connector The USB connector is available for additional USB port if the USB ports on the rear panel are inadequate. Compared to traditional USB 1.1 with the speed of 12Mbps, USB 2.0 has a fancy speed up to 480Mbps, which allows faster Internet connection, interactive gaming, and simultaneous running of high-speed peripherals. - Page 9 11. 6-channel Audio Effects The motherboard is equipped with the CODEC ALC655 chip, which provides supp- ort for 6-channel audio output, including 2 front, 2 rear, 1 center and 1 subwoofer channel. ALC655 allows the board to attach 4 or 6 speakers for a better surround sound effect.
- Page 10 13. Foxconn Utility CD This motherboard comes with one Utility CD. To begin using the CD, simply insert the CD disc into the CD-ROM drive. The CD will automatically bring up the main menu screen. Click “Install Driver”, then click the relevant buttons to install the IDE Driver, AGP Driver, VGA Driver, DirectX 9.0b, USB2.0 Driver, Audio Driver and LAN...
