Enviro HORIZONTAL VENT KIT 50-1235 Installation Instructions

Please read and understand these instructions before installing. Failure to follow these
instructions carefully could cause property damage or personal injury.

KIT COMPONENTS:

Quantity Description
1 Horizontal direct vent termination cap
1 Flue collar adapter
1 Wall thimble
1 5' (190 cm) length of Ø4" (10 cm) double walled fl ex pipe
1 5' (190 cm) length of Ø6⅝" (10 cm) double walled fl ex pipe
Please ensure that all components are supplied with this kit. If components are missing or have been damaged,
contact your dealer, distributor, or courier company. Do not attempt the installation if components are missing
or damaged.
INSTALLATION INSTRUCTIONS:
1. Plan your installation and clearances to combustibles. Decide on a location
for the unit that will meet any or all local code requirements. Refer to the
sections in your owner's manual on where to locate your stove.
2. Set the appliance in the desired location. Determine if any wall studs,
electrical wiring, or plumbing pipes are in the way of the venting system
as it passes through the exterior wall. The fi replace location should be
adjusted if obstructions are found in the wall.

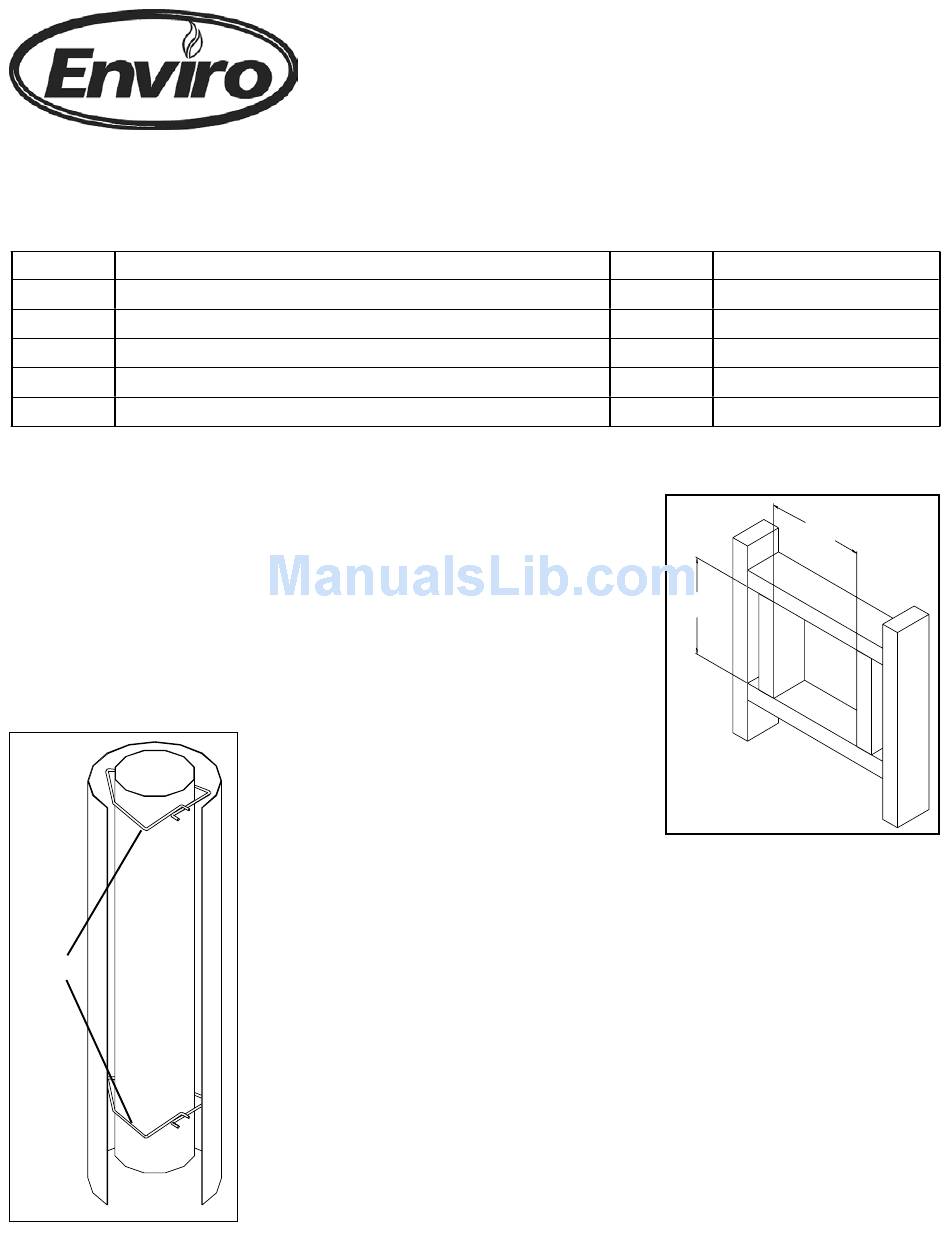

Wire
spacers
Figure 2
For use with Haven & Retreat Direct Vent fi replaces.
3. Project a line from the center point of the fl ue
outlet upward and outward to the desired fl ue
outlet location on the exterior wall. Using this
center point, scribe a 10" (25.4 cm) hole or
square on the wall. Cut the hole out on both
the interior and exterior wall surfaces.
4. Frame the hole as shown in Figure 1.
5. Trim the Wall Thimble to match the wall thickness as necessary. Install the wall
thimble and secure it to the inner wall frame using four (4) 1½" wood screws.
6. Apply a bead of Mill-Pac Black sealant to the new Ø4" (10 cm) by 5" (12.5 cm)
provided fl ue collar adaptor. Press the fl ue collar into the fl ue outlet of the
fi replace so that the Mill-Pac seals the fl ue collar to the fl ue outlet.
7. Stretch both the Ø4" (10 cm) fl ex vent and the Ø6⅝" (16.25 cm) fl ex intake
liner to the length needed to ensure the fl ex can be easily connected to the vent
terminal.
8. Slide the Ø6⅝" (16.25 cm) fl ex intake liner over the fl ex vent. Install four (4)
wire spacers around the fl ex pipe. Ensure the wire spacers are positioned at
either end of the pipes, and at each end of any elbows in the liners (refer to
Figure 2 and 3).
Horizontal Vent Kit
50-1235
Quantity Description
4 Wire spacers
1 4 oz tube Mill-Pac Sealant
1 4 oz tube RTV silicone
9
12 / " tech screws
16
8 1½" wood screws
(254mm)
10"
(254mm)
Figure 1
10"
