Setup

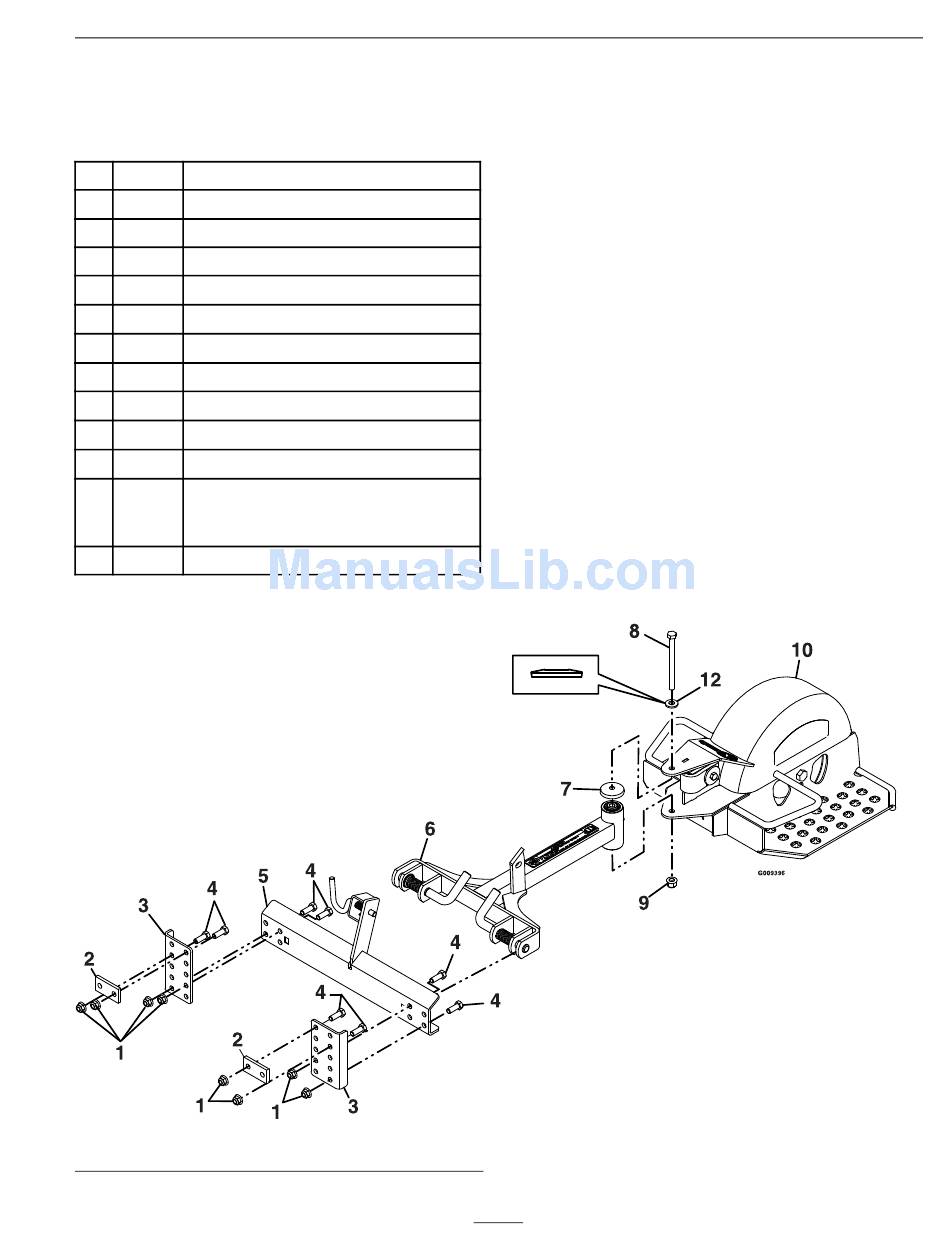

Assembly Diagram

Item Quantity Description
1 8
Nut, Nyloc 3/8-16 Flg
2 2
Plate, Back-Up
2
3 Plate, Adapter
4 8
Screw, HH 3/8-16 x 1 1/4
5 1
Asm, Frame Pull W/Decals
6 1
Asm, Pull Arm W/Brgs
7 1
Guard, Top
8 1
Screw, HH 3/8–16 x 4 3/4
9 1
Nut, Hex Flg-Side Lock 3/8-16
10 1
Asm, Sulky Frame W/Decals
11* 2
Decals, Replacement (Turf Tracer and
Viking Hydro Only)
12 1 Washer, Spring Disc
*Not shown in illustration
