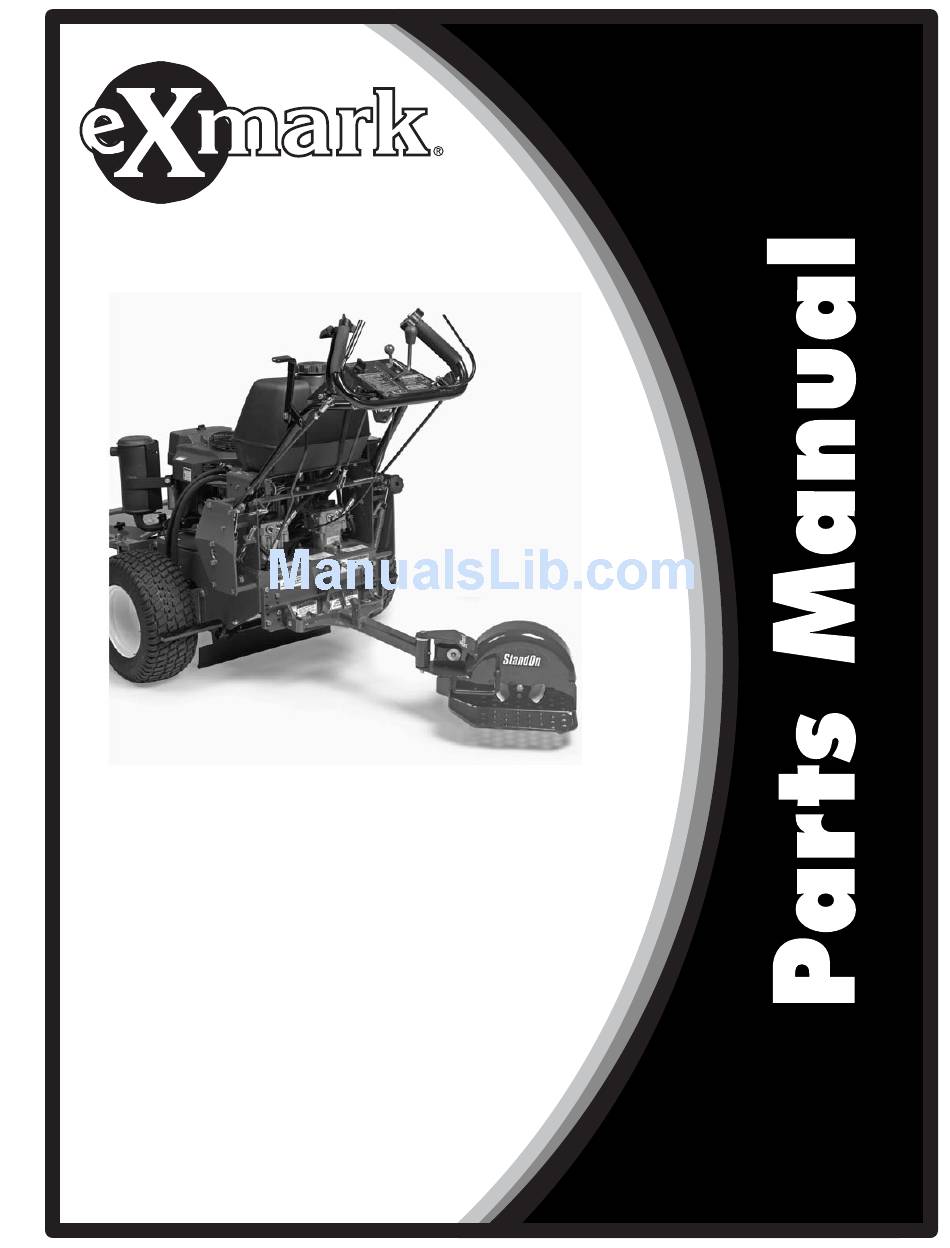

- Page 1 STANDON For Serial Nos. 790,000 & Higher Part No. 4500-436 Rev. A...
- Page 3 READ OPERATOR’S MANUAL BEFORE OPERATING OR SERVICING EXMARK EQUIPMENT TABLE OF CONTENTS Description Page Decals... 5 StandOn Assembly ... 4...
- Page 4 Part No. Description 103-6663 Plate, Back-Up ... 2 103-6675-01 Plate, Adapter ... 2 109-1117 Decal... 2 103-8845 Decal, Exmark... 1 103-9141 Decal, Sulky ... 1 103-9591 Asm, Caster Wheel ... 1 103-9169 Pin, Lift Arm ... 2 103-9508 Screw, HH 1/2-13 X 5 1/4... 1 32128-21 Nut, Hex Flg-Side Lock 3/8-16 ...
- Page 5 Item Part No. Description 1-303517 Decal, Belt Drive ...2 1-403143 Decal, Sulky Warning...2 103-9141 Decal, Sulky...1 DECALS Qty. Item Part No. Description 109-1117 Decal, StandOn ... 2 103-8845 Decal, Exmark ... 1 Qty.
- Page 6 NOTES...
-
Page 7: Service Record
SERVICE RECORD Date Description of Work Done Service Done By... - Page 8 © 2008 Exmark Mfg. Co., Inc. Industrial Park Box 808 Beatrice, NE 68310 All Rights Reserved Part No. 4500-436 Rev. A (402) 223-6300 Fax (402) 223-5489 Printed In USA...
