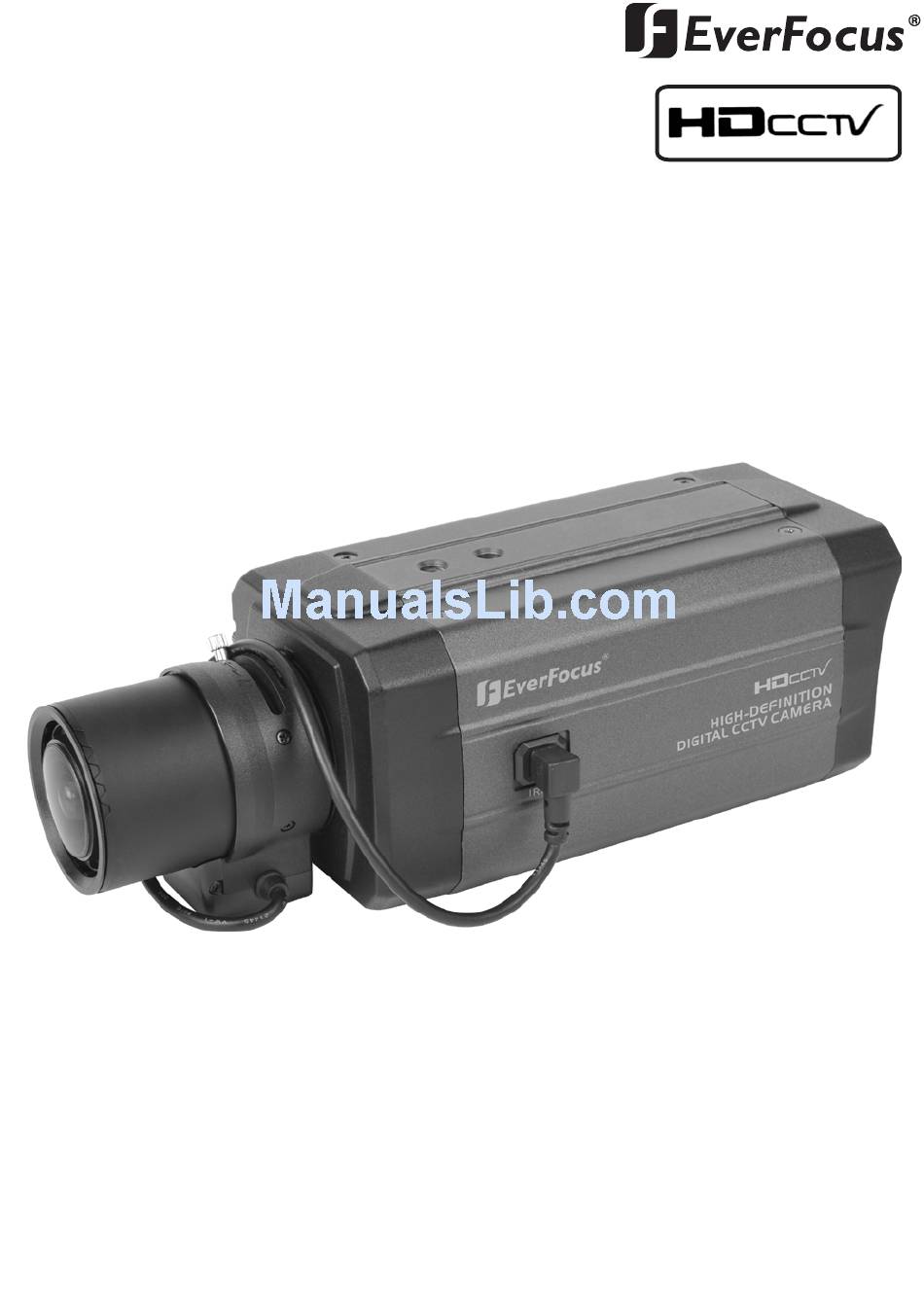

- Page 1 HD CCTV Digital Video Camera OPER ATI ON MA NUAL EQH5000 Before attempting to connect or operate, please read and follow these instructions.
- Page 2 C O NT E NT S 1. CAUTIONS 2. FEATURES 3. EQUIPMENT AND ACCESSORIES 4. CAMERA COMPONENT DESCRIPTION 5. INSTALLATION 6. DIMENSIONS 7. SPECIFICATIONS 8. DIGITAL INPUT/OUTPUT CIRCUIT (Future use) 9. OSD MANUAL...
- Page 3 1 . C AUT IO N S This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions; 1. This device may not cause harmful interference. 2. This device must accept any interference received, including interference that may cause undesired operation.
- Page 4 1 . C AUT IO N S Correct Disposal of This Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicate that it should not be disposed with other household wastes at the end of its working life.
- Page 5 2 . F E AT U R E S • High Resolution 1/3˝ SONY Progressive Color CMOS Sensor, 1280x720 30fps • Supports Various Digital Video Output 720p 30, 720p 60 720p 25, 720p 50 • Video Outputs Primary HD-SDI (BNC) Test/Setup TV Out (BNC), NTSC /PAL selectable •...
-
Page 6: Equipment And Accessories
3. EQUIPMENT AND ACCESSORIES HD C CTV Di g ital Vi deo Ca m e ra C- M OU NT AD APT OR R IN G OP ERA T IO N MA N UA L TERMI N AL BL OCK NOTE PLEASE REMOVE PROTECTION FILM... -
Page 7: Camera Component Descriptions
4. CAMERA COMPONENT DESCRIPTIONS • FRONT MOUNTING HOLE(1/4"-20 UNC) AUTO IRIS JACK C-MOUNT ADAPTOR RING (Optional - use for C-Mount lens only) BACK FOCUS CONTROL LEVER MOUNTING HOLE(1/4"-20 UNC) - Page 8 4. CAMERA COMPONENT DESCRIPTIONS • BACK ① ② ⑤ ⑦ ④ ③ ⑥ ⑧ ⑪ ⑩ ⑨ ①. MENU SET BUTTON MENU NAVIGATION BUTTONS ②. UP BUTTON ③. DOWN BUTTON ④. LEFT BUTTON ⑤. RIGHT BUTTON ⑥. POWER LED ⑦. SDI OUT BNC ⑧.
-
Page 9: Installation
5 . INS TAL LATI O N • LENS CONNECTION Mega Pixel Lenses are sold separately. Lenses such as a DC auto iris lens, CS-Mount lens and C-Mount lens can be used ( adapter included for C-Mount Lens). NOTE • Please keep the lens clean. •... - Page 10 5 . INS TAL LATI O N Installation of C-Mount Lens C to CS-MOUNT ADAPTOR RING Lens Installation of CS-Mount Lens Lens...
- Page 11 5 . INS TAL LATI O N • CONNECTION TO HD SDI IN HDCCTV DVR OR OTHER HDCCTV SIGNAL EQUIPMENT BNC FEMALE VIDEO HANDHELD TO VIDEO IN DC12V REGULATED POWER SUPPLY...
- Page 12 6 . D IM EN S I O NS Unit: mm(inch) MOUNTING HOLE (1/4"-20 UNC, Depth 5) 145(5.71) / (C-Mount) 72.58(2.86) 138.55(5.45) / (CS-Mount) AUTO IRIS JACK C-MOUNT ADAPTOR RING (Optional use for C-Mount Lenses only) MOUNTING HOLE...
-
Page 13: Specification
7 . S PE CI F I C AT I O N Image Device 1/ 3” SO N Y M e ga - P i xe l C o l o r P r og r e ssi ve C M O S Effective Pixels 1329 (H) x 1049 (V) 30fps Unit cell size... - Page 14 8 . D IG I TAL I NP U T / O U T PU T • Digital Input Port (Future Feature, Use for CDS Mode Only) D ay and Ni ght CAMERA C DS MOD E A/D Po rt 1 0b i t res ol u tio n , Mic ro Co ntro ll e r EXTERNAL DEVICE...
-
Page 15: Video Out
9 . O S D M A NU A L • Menu structure - Main Menu VIDEO OUT LENS EXPOSURE WHITE BALANCE DAY / NIGHT IMAGE SPECIAL - VIDEO OUT Menu 720p 30Hz / 720p 60Hz VIDEO OUT SDI FORMAT 720p 25Hz / 720p 50Hz TV OUT FORMAT NTSC / PAL... -
Page 16: O Sd M A N Ua L
8 . O SD M A N UA L - LENS Menu LENS LENS TYPE DC IRIS / MANUAL IRIS DC IRIS BRIGHTNESS 0 ~ 127 IRIS SPD 0 ~ 112 - EXPOSURE Menu EXPOSURE BRIGHTNESS 0 ~ 127 AUTO / MANUAL SHUTTER MODE / FLK 60Hz(FLK 50Hz) -
Page 17: White Balance Menu
9 . OS D M AN UA L - WHITE BALANCE Menu WHITE BALANCE MODE ATW / PUSH / MANUAL MANUAL R GAIN 0 ~ 255 B GAIN 0 ~ 255 - DAY / NIGHT Menu DAY / NIGHT MODE COLOR / AUTO / EXT / BW AUTO / EXT DAY LEVEL... -
Page 18: Special Menu
9 . O S D M A NU A L - SPECIAL Menu SPECIAL SYSTEM INFO USER SET SAVE USER SET LOAD USER SET CLEAR USER SET FACTORY RESET CAMERA RESET COMM/GPIO SET RS485 Address 0~255 GP IN Status GP OUT Control LOW / HIGH FOCUS MODE ON / OFF... -
Page 19: Main Menu
9 . OS D M AN UA L • ICONS : Value adjustment(use LEFT/RIGHT button). : Select Sub Menu(use SET button). : Execution command(use SET button). : Return to previous menu. : Menu OFF. : Information. The [SETUP] menu will show up when you push the SET button. •... - Page 20 9 . O S D M A NU A L Video Out • [ VIDEO OUT ] - SDI Format Select SDI output Formats – 720p 30Hz, 720p 60Hz FORMAT NTSC 720p 60Hz, 720p 25Hz and 720p 50Hz. TV OUT FORMAT - TV Out Format Select NTSC / PAL.
- Page 21 9 . OS D M AN UA L EXPOSURE • [ EXPOSURE ] - BRIGHTNESS Same as the BRIGHTNESS value in LENS BRIGHTNESS Menu. Using Left / Right button, adjust AUTO SHUTTER Brightness value. AGC MAX - SHUTTER Using Set button, go to the SHUTTER sub menu.
- Page 22 9 . OS D M AN UA L WHITE BALANCE • [ WHITE BALANCE ] MANUAL MODE R GAIN B GAIN EXIT SAVE & EXIT - MODE Using Left / Right button, select White balance modes – ATW, PUSH and MANUAL. Auto Trace White Balance mode PUSH White Balance Push Lock mode (Auto White Balance Control &...
- Page 23 9 . OS D M AN UA L • Day / Night [ DAY / NIGHT ] AUTO MODE DAY LEVEL NIGHT LEVEL EXIT SAVE & EXIT - MODE Using Left / Right button, select TDN(True Day & Night) modes – AUTO, EXT, COLOR, and BW.
-
Page 24: System Info
9 . OS D M AN UA L • IMAGE [ IMAGE ] SHARPNESS IMAGE FILP GAMMA EXIT SAVE & EXIT - SHARPNESS: Using Left / Right button, adjust sharpness value. - IMAGE FLIP: Using Left / Right button, select Flip modes – OFF, H FLIP, V FLIP and H/V FLIP. - DNR: Using Left / Right button, select Digital Noise Reduction Modes - OFF, LOW, MID, HIGH. - Page 25 9 . OS D M AN UA L - USER SET Using Set button, display [USER SET] sub menu. - COMM/GPIO SET Using Set button, display [COMM/GPIO SET] sub menu. - FOCUS MODE In focus mode, the iris becomes fully open, electronic shutter controls the light level, and the TV out screen zooms into the center in order to make focusing easier.
- Page 26 9 . OS D M AN UA L • COMM/GPIO SET (Sub Menu) [ COM / GPIO SET ] RS485 Address (Future Feature) • GP IN Status GP OUT Control EXIT SAVE & EXIT - RS485 Address Future Feature. - GP IN Status ( CDS Mode Only Digital input Future Feature) If the OSD is set to the EXT mode in the [DAY/NIGHT] menu, this port is used to connect to a photo-sensor.
- Page 27 Telford: 0845 430 8888 www.everfocus.in Fax: 020 8649 9907 uk.support@EverFocus.com Ihr EverFocus Produkt wurde Your EverFocus product is designed and manufactured with high quality entwickelt und hergestellt mit qualitativ hochwertigen Materialien und materials and components which can Komponenten, die recycelt und wieder be recycled and reused.
