Please read this manual first for correct installation and operation. This manual should be retained
for future reference. The information in this manual was current when published. The
manufacturer reserves the right to revise and improve its products. All specifications are therefore
subject to change without notice.
PRECAUTIONS
1.
Do not install the camera near electric or magnetic fields.
Install the camera away from TV, radio transmitter, magnet, electric motor, transformer,
audio speakers since the magnetic fields generate from above devices will distort the video
images.
2.
Never disassemble the camera nor put impurities in it.
Disassembly or impurities may result in trouble or fire.
3.
Never face the camera toward the sun.
Direct sunlight or severe ray may cause fatal damage to sensor and internal circuit.
4.
Keep the power cord away from water and liquid.
Touching the wet power cord may result in electric shock.
5.
Never install the camera in areas exposed to water, oil or gas.
Water, oil or gas may result in failure, electric shock or fire.

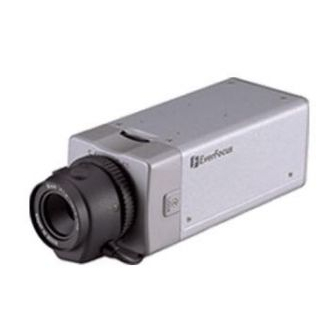

1/3" Sony CCD Aluminum Box Housing
Model No.
EVERFOCUS
Color Camera

Operation Instructions

EQ350/EQ250

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the EQ250 and is the answer not in the manual?

Questions and answers

Related Manuals for EverFocus EQ250

Summary of Contents for EverFocus EQ250

  • Page 1: Operation Instructions

    Touching the wet power cord may result in electric shock. Never install the camera in areas exposed to water, oil or gas. Water, oil or gas may result in failure, electric shock or fire. EVERFOCUS 1/3” Sony CCD Aluminum Box Housing Operation Instructions EQ350/EQ250 Model No. Color Camera...

  • Page 2: Standard Accessories

    Cleaning Do not touch the surface of sensor by hand directly. Use a soft cloth to remove the dirt from the camera body. Use lens tissue or a cotton swab and ethanol to clean the sensor and the camera lens. Do not operate the camera beyond the specified temperature, humidity or power source ratings.

  • Page 3: Specifications

    24VAC: 7VA max. 12VDC: 4.5W max. 57mm(W) x 51mm(H) x 140.2mm(D); Dimensions 2.25"(W) x 2"(H) x 5.52"(D) Weight 0.5kg ; 1.1lbs Operating Temperature 0°C~50°C ; 32°F~122°F (20%~80% Humidity) Certifications FCC/CE EQ250 NTSC: 510(H) x 492(V) PAL: 500(H) x 582(V) 380TVL 0.3Lux/F=1.2...
  • Page 4 DIMENSIONS...
  • Page 5 MAJOR PARTS NAME & THEIR FUNCTIONS Front Side Side 12 (optional) 12 (optional)
  • Page 6 Rear (EQ series) 1. Focal Length Adjustment Ring Use this ring to adjust the appropriate focal length according to the type of lens. Rotate the ring clockwise for the CS-mount lens, rotate it counterclockwise for the C-mount lens. The factory setting is CS-mount. 2.
  • Page 7 setting is OFF. ES (Electronic Shutter) OFF/ON ES ON: The camera continuously adjusts the shutter speed from 1/60 (NTSC), 1/50 (PAL) second to 1/100,000 second according to the luminance conditions of the scene. ES OFF: The shutter speed is fixed at 1/60 (NTSC), 1/50 (PAL) second. Set ES OFF, when auto iris lens is used or flicker is observed under a very bright fluorescent lamp.
  • Page 8 Direct Drive Cnt- Cnt+ Drv+ Drv- 6. IRIS Level Control Brightness Level can be adjusted from the IRIS level VR while using the direct drive lens. Turn counterclockwise to L to get darker picture. Turn clockwise to H to get brighter picture. 7.

  • Page 9: Installation

    INSTALLATION 1. Remove the cover cap from the top of the lens mount. 2. To attach a C-mount/CS-mount lens, turn the focal length adjustment ring to the appropriate position. Note: If a C-mount lens is used, please make sure the focal length adjustment ring is set at C position before fixing the lens.
  • Page 10 415 Oser Avenue Unit S Hauppauge, NY 11788 TEL: 631-436-5070 FAX: 631-436-5027 www.everfocus.com Your EverFocus product is designed and manufactured with high quality materials and components which can be recycled and reused. This symbol means that electrical and electronic equipment, at their end-of-life, should be disposed of separately from your household waste.
