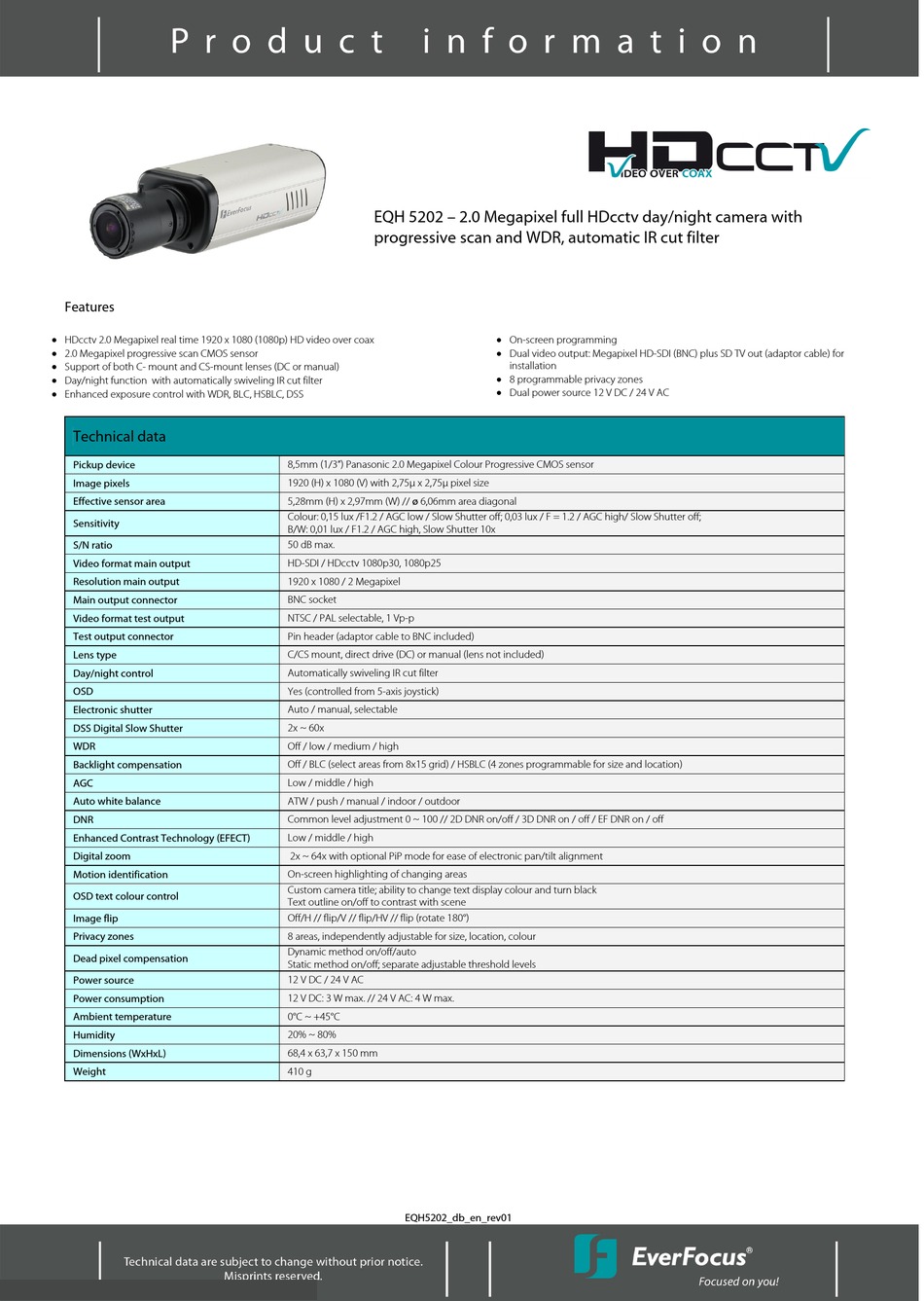

EverFocus EQH 5202 Specifications

Features
 HDcctv 2.0 Megapixel real time 1920 x 1080 (1080p) HD video over coax
 2.0 Megapixel progressive scan CMOS sensor
 Support of both C- mount and CS-mount lenses (DC or manual)
 Day/night function with automatically swiveling IR cut filter
 Enhanced exposure control with WDR, BLC, HSBLC, DSS

Technical data

Pickup device
Image pixels
Effective sensor area
Sensitivity
S/N ratio
Video format main output
Resolution main output
Main output connector
Video format test output
Test output connector
Lens type
Day/night control
OSD
Electronic shutter
DSS Digital Slow Shutter
WDR
Backlight compensation
AGC
Auto white balance
DNR
Enhanced Contrast Technology (EFECT)
Digital zoom
Motion identification
OSD text colour control
Image flip
Privacy zones
Dead pixel compensation
Power source
Power consumption
Ambient temperature
Humidity
Dimensions (WxHxL)
Weight
EQH 5202 – 2.0 Megapixel full HDcctv day/night camera with
progressive scan and WDR, automatic IR cut filter
8,5mm (1/3") Panasonic 2.0 Megapixel Colour Progressive CMOS sensor
1920 (H) x 1080 (V) with 2,75μ x 2,75μ pixel size
5,28mm (H) x 2,97mm (W) // ø 6,06mm area diagonal
Colour: 0,15 lux /F1.2 / AGC low / Slow Shutter off; 0,03 lux / F = 1.2 / AGC high/ Slow Shutter off;
B/W: 0,01 lux / F1.2 / AGC high, Slow Shutter 10x
50 dB max.
HD-SDI / HDcctv 1080p30, 1080p25
1920 x 1080 / 2 Megapixel
BNC socket
NTSC / PAL selectable, 1 Vp-p
Pin header (adaptor cable to BNC included)
C/CS mount, direct drive (DC) or manual (lens not included)
Automatically swiveling IR cut filter
Yes (controlled from 5-axis joystick)
Auto / manual, selectable
2x ~ 60x
Off / low / medium / high
Off / BLC (select areas from 8x15 grid) / HSBLC (4 zones programmable for size and location)
Low / middle / high
ATW / push / manual / indoor / outdoor
Common level adjustment 0 ~ 100 // 2D DNR on/off / 3D DNR on / off / EF DNR on / off
Low / middle / high
2x ~ 64x with optional PiP mode for ease of electronic pan/tilt alignment
On-screen highlighting of changing areas
Custom camera title; ability to change text display colour and turn black
Text outline on/off to contrast with scene
Off/H // flip/V // flip/HV // flip (rotate 180°)
8 areas, independently adjustable for size, location, colour
Dynamic method on/off/auto
Static method on/off; separate adjustable threshold levels
12 V DC / 24 V AC
12 V DC: 3 W max. // 24 V AC: 4 W max.
0°C ~ +45°C
20% ~ 80%
68,4 x 63,7 x 150 mm
410 g
EQH5202_db_en_rev01
 On-screen programming
 Dual video output: Megapixel HD-SDI (BNC) plus SD TV out (adaptor cable) for
installation
 8 programmable privacy zones
 Dual power source 12 V DC / 24 V AC
