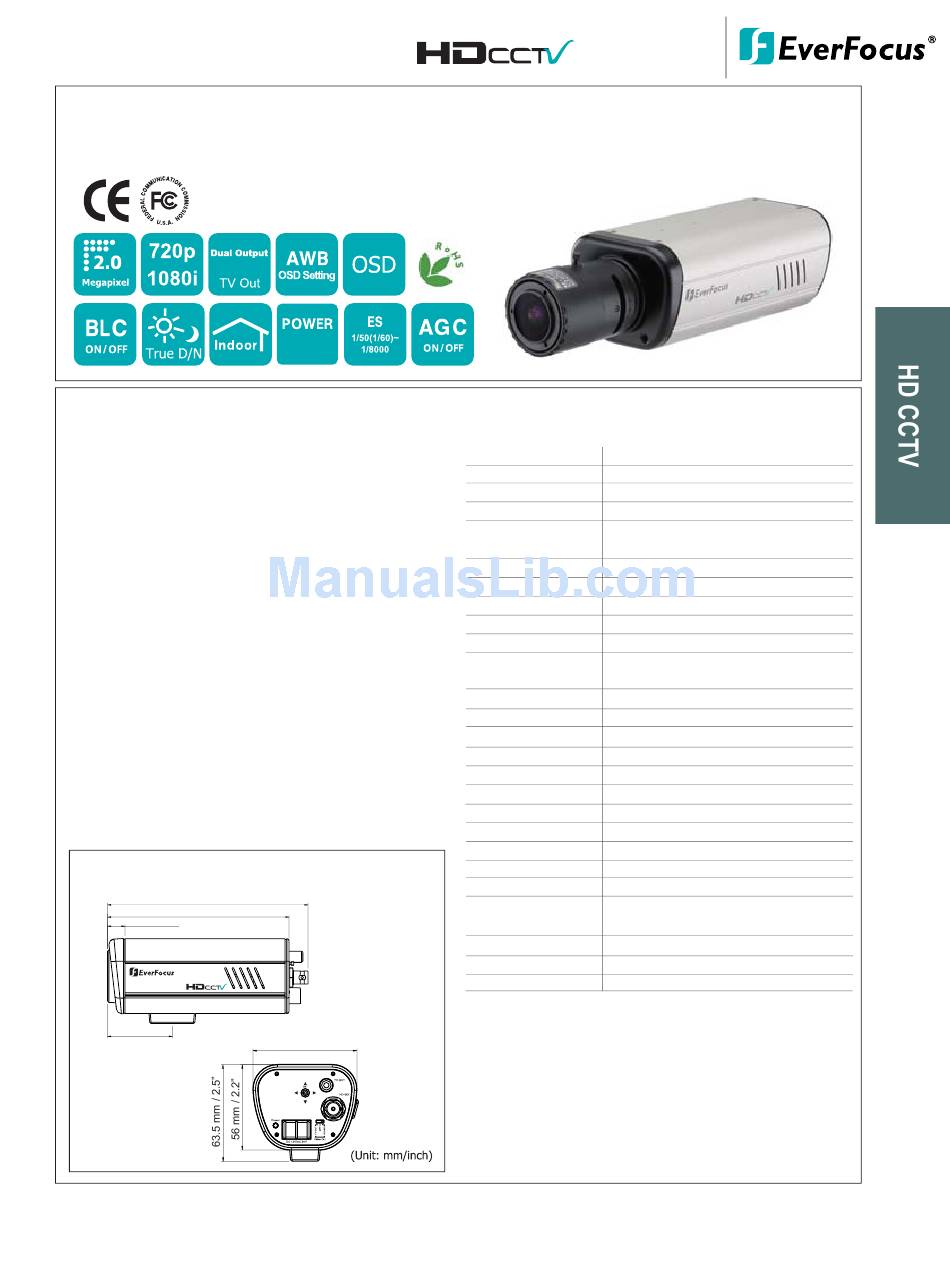

EverFocus EQH5200 Specifications

HD-CCTV/
Features
• HD-CCTV 2 Megapixel real time 1080i HD video over coax
• SMPTE292m compliant
• 2 megapixel progressive scan CMOS sensor
• Field select video outputs of 720p or 1080i
• Lens Types: supports DC and manual iris lenses, CS mount
(C mount adapter ring included)
• True day/night mode selectable with automatic ICR module
• Easy to use OSD setup menu
• Dual Video Output: Megapixel HD-CCTV (BNC) plus SD TV Out
(RCA) active during installation and setup
• Dual Power Source 12VDC/24VAC operation
• Lens sold separately
Dimensions
150.2 mm / 5.9"
136 mm / 5.4"
13 mm / 0.5"
48.5 mm / 1.9"
2011 EverFocus Product Catalog. Note: Product specifications are subject to change without notice. Visit www.everfocus.com for the most updated information.
2 Megapixel Full High Definition Box Style Color Camera
12VDC/
24VAC
68 mm / 2.7"
HD CCTV - Box Camera
NEW!

Specifications

Pickup Device 1/2.5" 2 Megapixel CMOS sensor
Sensitivity
0.02 Lux/F=1.2 (AGC ON)
S/N Ratio
38.1 dB
Video Format Main Output HD-CCTV (SMPTE292m)
Resolution Main Output 1920x1080, 2 Megapixel 1080i or
1280x720, 1 Megapixel 720p
Video Mode Main Output Field select 1080i or 720p
Main Output Connector BNC-F
Video Format Test Output
NTSC/PAL selectable 1V p-p (in test mode only)
Test Output Connector
RCA-F
Electronic Shutter 1/60(1/50)~1/8000
Lens Type CS mount (Adapter included for C-mount)
Lens sold separately
Lens Control Supports DC or manual lens
Backlight Comp. On/Off selectable
Auto Gain Control
High/Middle/Low/Off selectable
Auto White Balance
AWB/One Push WB/Manual WB/Indoor/Outdoor
Gamma Correction Two settings: optimized for TV or PC display
Iris Control Auto, -2.0EV~2.0EV
OSD Menu Yes (controlled from rear 5-axis joystick control)
True Day/Night Yes (Auto IR cut filter removal)
Mirror
H_MIR/V_MIR
Power Source
12VDC/24VAC
Power Consumption
12VDC: 6W max. / 24VAC: 6W max.
Dimensions (L x W x H) 146 x 68 x 56 mm / 5.7" x 2. 7" x 2.2"
(BNC socket included)
Weight 0.4 kg / 0.9 lbs
Operating Temperature 0°C ~ 45°C / 32°F ~ 113°F (20%~80% Humidity)
Certifications
FCC/CE

Ordering Information**

• EQH5200: 2MP HD Box Camera, 1080i/720p, 24VAC/12VDC
True Day/Night
** Check with your EverFocus sales rep
for release date and availability
* Models vary in different countries. Visit www.everfocus.com and select your
country for accurate ordering information
EQH5200
