APOLLO 1U ICE

User status/display and navigation buttons

The LCD offers 2 x 24 character visibility with white lettering on an illuminated blue
background. The Front Panel Interface enables connection to the front navigation/input
switches and the three user-defined LEDs.

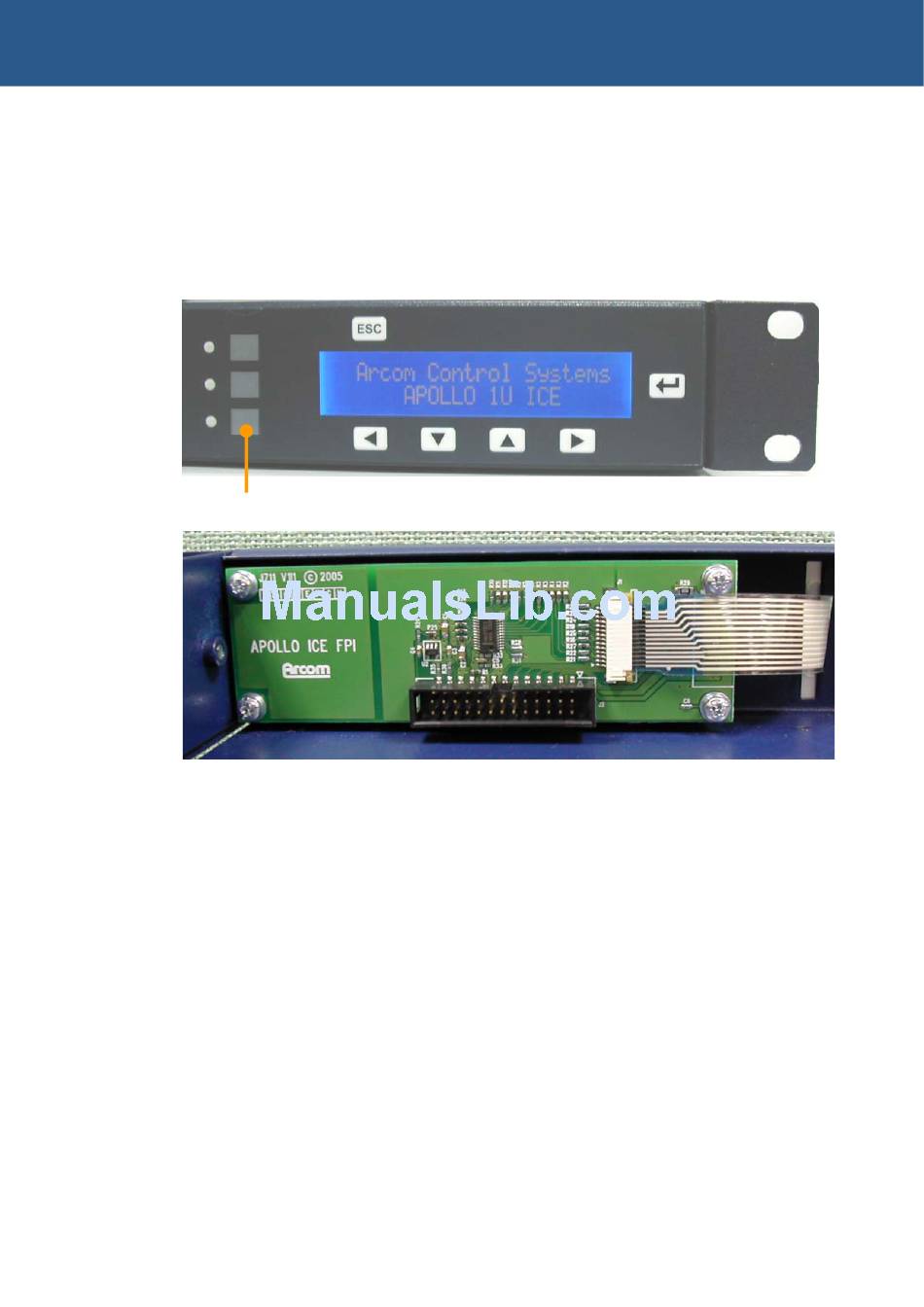

The LCD and Front Panel Interface are shown in the following photograph:
LED ident strip
The Front Panel Interface is 'stacked' on the back of the LCD and has the tail from the
front membrane plugged into a ZIF socket.
© 2007 Eurotech Ltd
Issue C
