Eurotech APOLLO 1U ICE Technical Manual page 14

APOLLO 1U ICE
J3 - 3.5mm audio jack
PC99 Color: pink.
Pin 2.1 mode
Tip Microphone In
Ring No Connect
Sleeve Ground

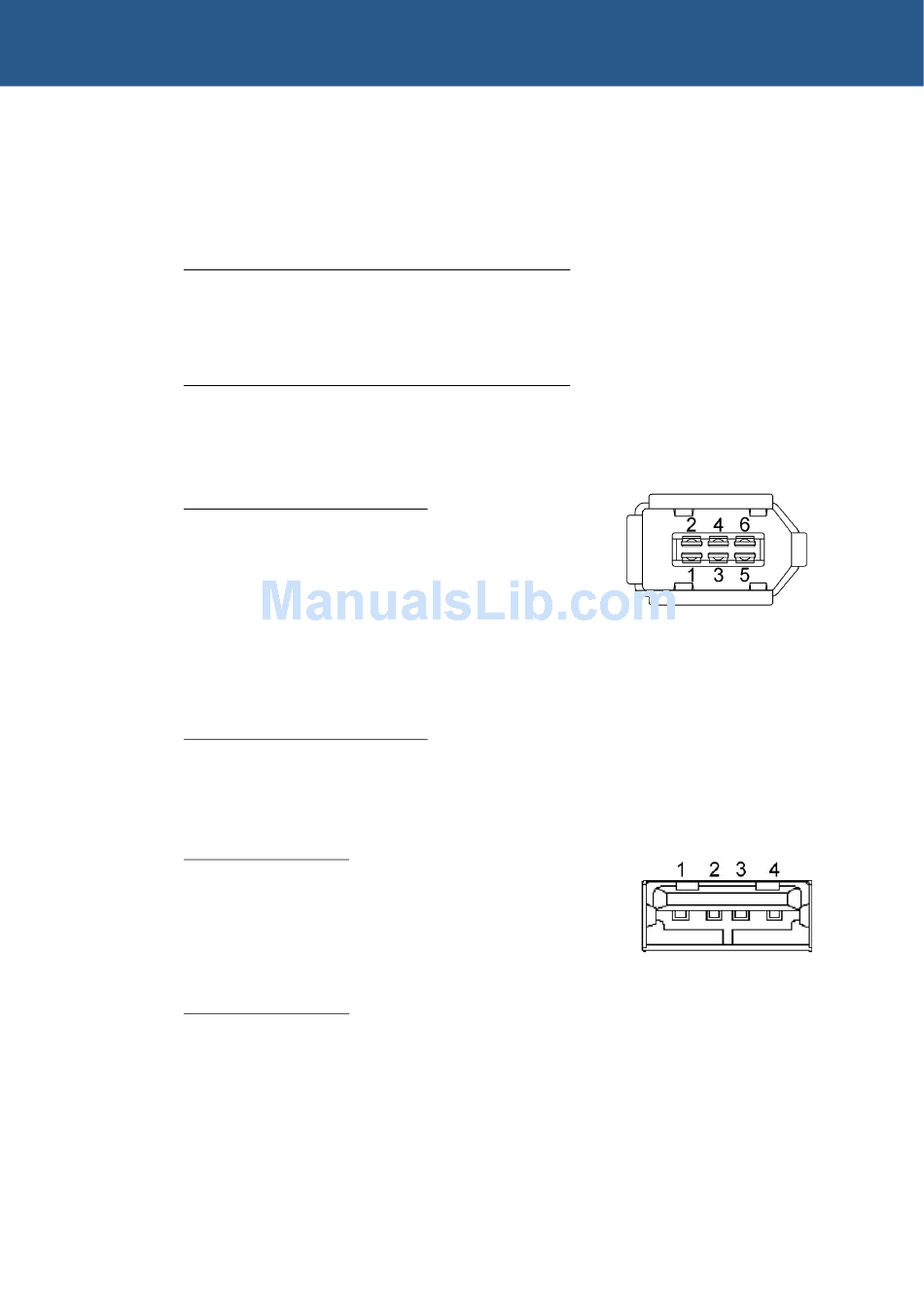

J4A – IEEE1394 connector port 0
6-pin IEEE1394 connector.
Pin
1
2
3
4
5
6
J4B and J4C – USB ports 1 and 2
USB type A connector.
Pin Signal name
1 VBUS
2 Data-
3 Data+
4 Ground
© 2007 Eurotech Ltd Issue C
Signal name
5.1 mode
Surround centre
Low frequency effects
Ground
Signal name
+12V (Fused)
Ground
TPB0-
TPB0+
TPA0-
TPA0+
Connectors
14
