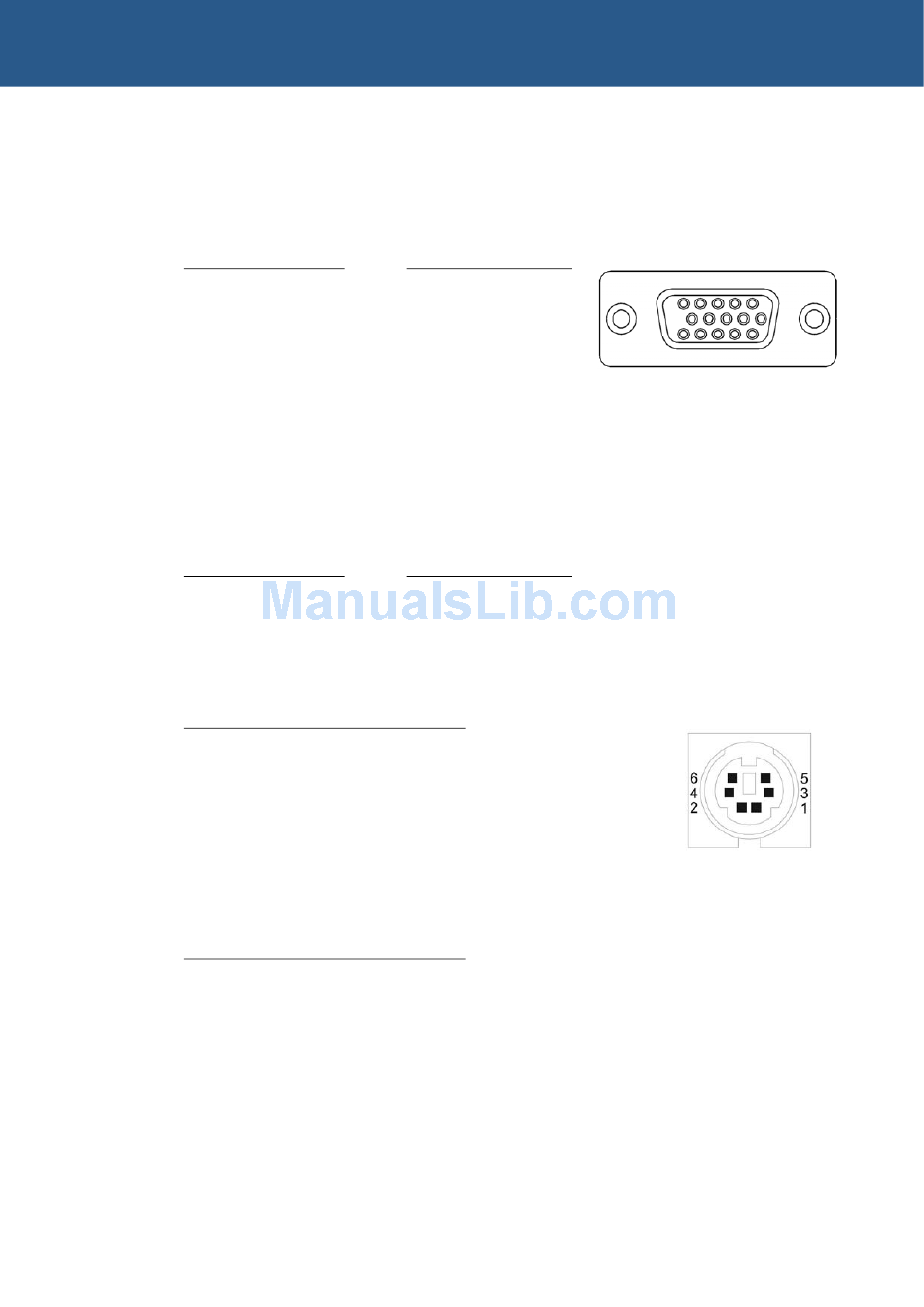

APOLLO 1U ICE
J6A – VGA CRT connector
DB15 Female
PC99 Color: Blue
Pin Signal name
1 Red
3 Blue
5 Ground
7 Ground
9 +5V (Fused)
11 No Connect
13 HSYNC
15 DDCSCL
J6B – PS/2 keyboard
Connector: 6-pin Mini-DIN
PC99 Color: Purple
Pin Signal name
1 KB DATA
2 No Connect
3 Ground
4 +5V
5 KB CLOCK
6 No Connect
© 2007 Eurotech Ltd Issue C
Pin Signal name
2 Green
4 No Connect
6 Ground
8 Ground
10 Ground
12 DDCSDA
14 VSYNC
Connectors
5 1
10 6
15 11
