Wall Mount Drilling Template
Mounting tools: Screwdriver, electric drill or awl. On hard surfaces, Motorola recommends that you pre-drill ½-inch
deep pilot holes with a drill bit slightly smaller than the camera mounting screws before securing the camera to the
surface. When mounting a camera on soft surfaces like sheetrock, use an awl to punch holes in the material slightly
smaller than the plastic anchors included in the hardware mounting kit.

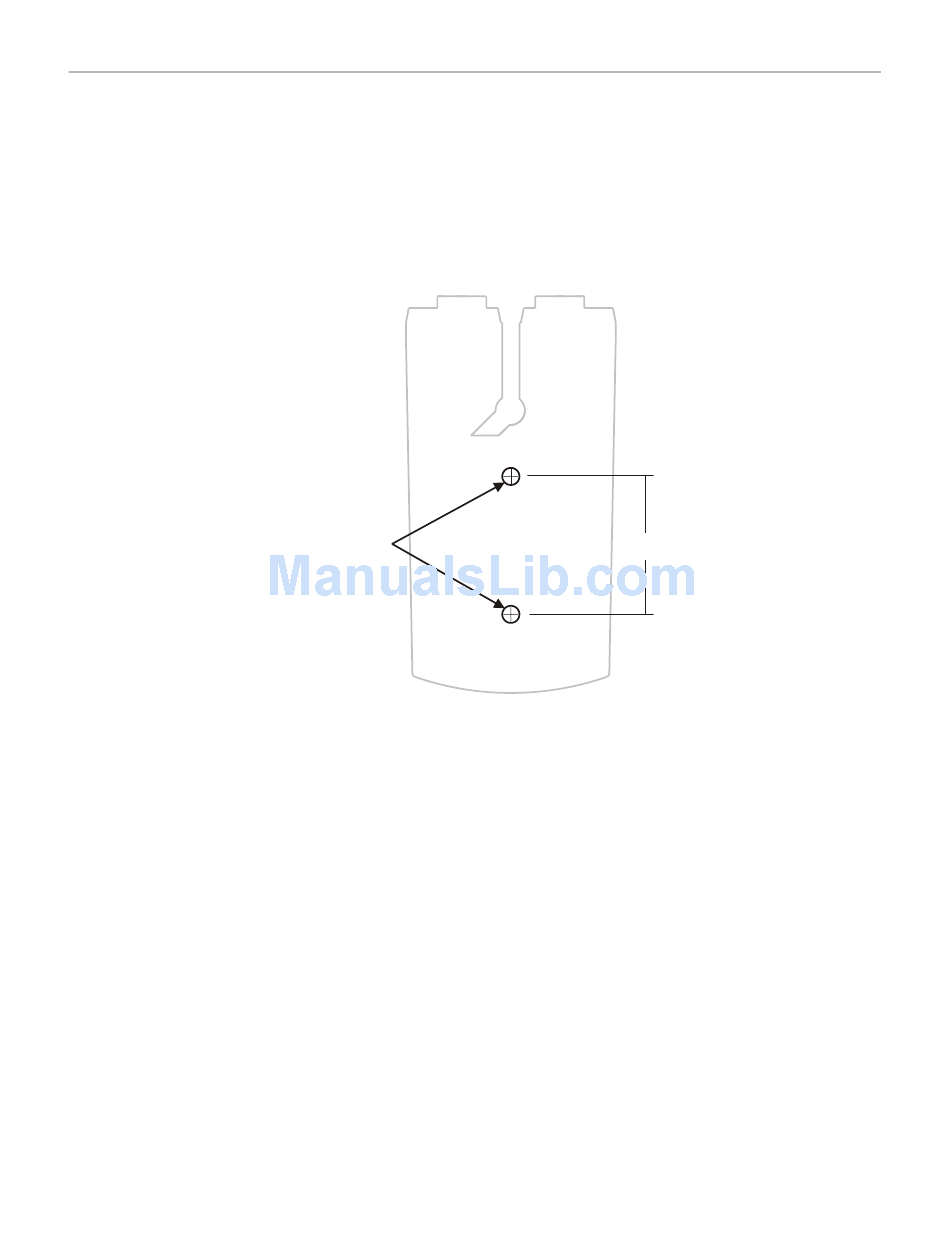

The illustration is drawn to a one-to-one scale, which means that it provides the exact dimensions required to mount
the unit.
