Summary of Contents for Elite Screens Cinema235 Series

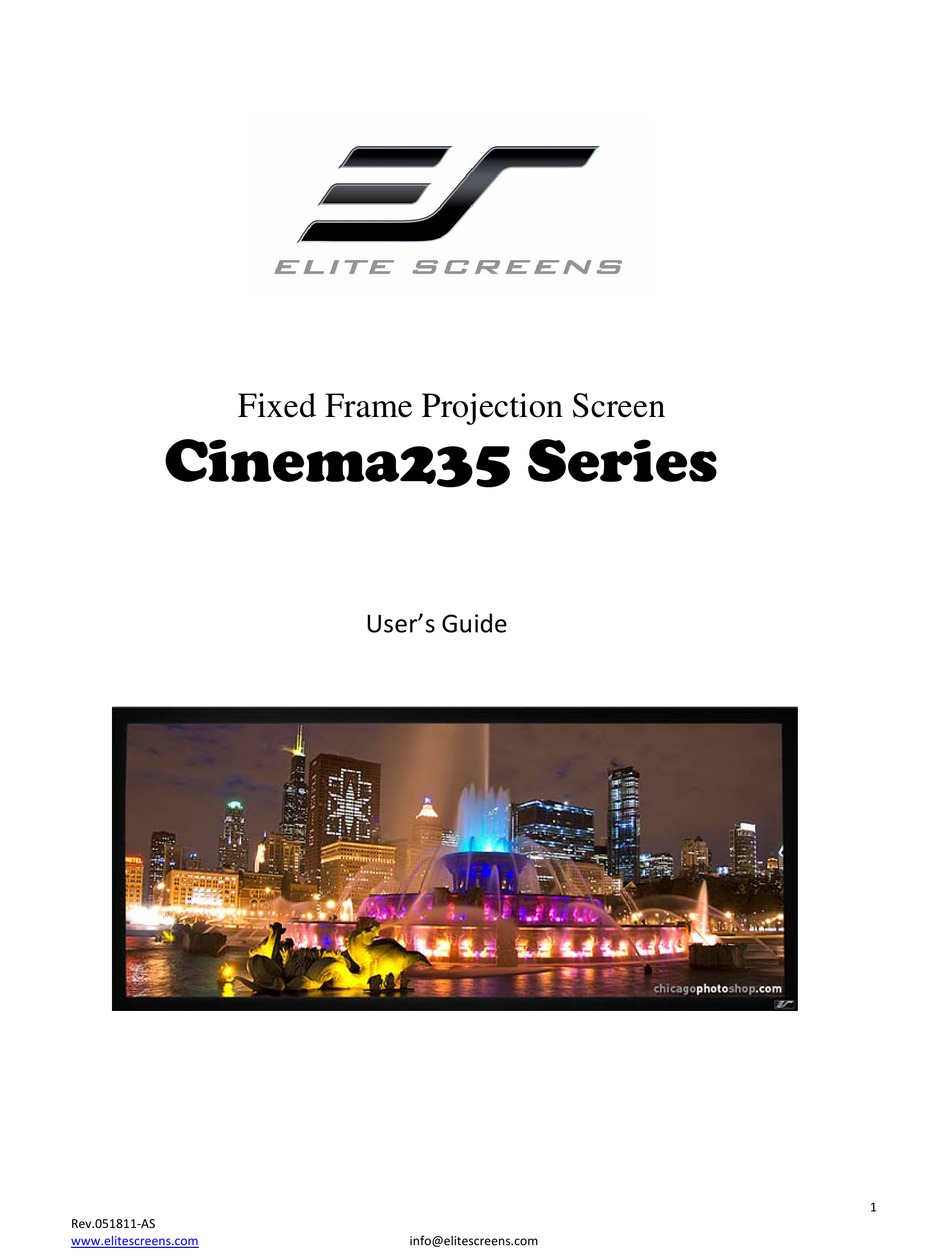

  • Page 1                                                 Fixed F Frame P Projectio on Scree ma23 35 S Seri       User’s  Guide                                             1  Rev.051811‐A AS  www.elitescr reens.com  info@ @elitescreens.com  ...
  • Page 2: Installation Instructions

    Parts List for the Cinema235 Series Please make sure all parts listed below are included before proceeding with the installation.      1. Frame Parts x 6 pcs (4 Top & Bottom frame pcs + 2 Side frame pcs)  2. Tension Rods x 6 pcs (4 Top & Bottom frame rods + 2 Side rods)  3. Screen Material x 1 pc  4. Center Joints x 2 pcs  5. Elbow Joints x 4 pcs  6. Wall Brackets x 2‐3 pcs (depending on size)  7. Screws x 16 pcs  8. User Guide x 1 pc  9. Center Support Bar x 1‐2 pcs (depending on size)  10. Support Joiner x 2‐4 pcs (depending on size)  11. Fix Plates x 30‐90 pcs (depending on size)  12. Black Cloth Backing x 1 pc (AcousticPro 1080 models only)    Installation Instructions   Assemble the Frame  1. Insert the Center Joint Connector to the horizontal frame piece and secure with screws.                 2  Rev.051811‐AS  www.elitescreens.com  info@elitescreens.com ...
  • Page 3 2. Insert the other horizontal frame piece to the Center Joint connector and secure with screws.    Push       1/2Long frame            Note: To make sure the frame pieces line up correctly, do not tighten the screws until assembly is complete.  3. Insert both Elbow Joint connectors into the long horizontal frame (see fig. 1).   Long frame Push Push Joint ( fig.1)   P u s h P u s h S h o r t f r a m e S h o r t f r a m e  ...
  • Page 4  4. Join all four frame parts together following the steps showed below (see fig. 2)          Insert the exposed ends of the joint connectors   into the short (vertical) frame and align the four corners so that they meet at perfect right angles     Push   Push        ...
  • Page 5 Attach the Screen Material to the Frame  1. Lay out the material and Tension Rods on a clean & dry surface. Insert the Tension Rods through the       sleeves according to their corresponding lengths on each edge of the screen (see fig. 4).      Tension Rod (Horizontal) x 4    Tension Rod (Vertical) x 2    Screen Push       Steel rod     Steel rod     Push             ( fig.4) 2. Place the screen material on the back of the frame and insert the tension rods into the grooves       running of each corner of the frame. Insert the Fix Plates to the back of the frame to secure the rods       into place creating tension for a flat surface (see fig. 5 & 6).    fix plate Push Viewing surface (Front of screen) Steel rod ( fig.5)
  • Page 6          Black Backing for AcousticPro1080 Models  This procedure only applies to models with AcousticPro 1080 Material. The Black Backing counters the  effects of light penetration that would otherwise light up all items behind the screen and spoil the  picture.  Attach the Black Backing behind the projection surface and secure to the Velcro‐Faced Fix  Plates.    Fix plate secures AcousticPro1080 material and  Black backing  the black backing behind it.    AcousticPro1080 Screen Material  Cover by Black backing      Fix Plate   Black backing              Tension Rod (stretches the    AcousticPro1080 material)  After the material has been installed, the backing will lie over the back of the white (AcousticPro1080) material and  then be held into place by the fix plates as they are added (fig. 1‐3). Interval markings reveal the suggested points  of attachment (fig. 1). The prongs on the fix plates (fig.2) straddle a lip on the back of the frame creating a friction  to hold the material in place (fig.3‐4).                    Fig.1       ...
  • Page 7 Attach the Fix Plates  1. Make sure that the material and frame are both lying face down on a clean, dry and non‐abrasive  surface.  2. Center the material inside of the frame  Note: The material was made smaller than the frame in order to be stretched to create a sufficient amount of  .  tension 3. Start attaching the Fix Plates in the center of each horizontal frame piece (1), then in the center of  each vertical frame piece (2). (see fig.7)  Note: Follow these instructions to make sure the material is properly fixed in the center position of the frame.  After attaching the fix plates in sequence #2 (vertical sides), remove the fix plates in sequence #1 (horizontal  pieces) and re‐attach them again, and also remove the fix plates from sequence # 2, and re‐attach.  4. Follow the suggested numbers 3‐8 to properly attach the fix plates to the frame.                  (Fig. 7) Center Support Bar    1. Insert the Support Joiner into each side of the Center Support Bar.    Support Joiner     Center Support Bar      2. Insert the Center Support Bar into the upper top groove of the back frame (not the fix plates insert)       with the bottom end near the approximate center point of the frame and place it in at an angle so       that both ends of the bar are in alignment with the groove (see fig.8).  7  Rev.051811‐AS  www.elitescreens.com  info@elitescreens.com ...
  • Page 8: Installation

    3. Slide the top end of the bar into the top center point location to complete the installation. This will       provide stability to the frame and tension to the material.             Center Support Bar          (Fig. 8)   Installation  1. Elite recommends using a stud finder (not included) to locate and mark the installation location.  2. Drill a hole with the proper bit size according to the included wood screws.  3. Line‐up the Wall Brackets with the drilled holes and screw them in using a Phillips screw driver.  Note: 2 wall brackets are provided with diagonal sizes below 135”, and 3 for diagonal sizes 135” and above.     4. Position the frame onto the top wall brackets (see fig.9) and push down at the center of the bottom       frame to secure the installation.    5. The wall brackets provide flexibility by allowing the frame to slide to the sides. This feature allows the       screen to be properly centered.                    Wall brackets       2 pcs    (fig. 9)  8  Rev.051811‐AS  www.elitescreens.com  info@elitescreens.com ...
  • Page 9 Caution   Please follow these instructions carefully to ensure proper maintenance and safety with your  Cinema235 Screen.  1. When hanging the screen up, please make sure that no other objects such as power switches, outlets,       furniture, ladders, windows, etc. occupy the space designated for your Fixed‐Frame screen.     2. Regardless if the screen is hung on or installed into the wall, make sure that the proper mounting         anchors are used and that the weight is supported appropriately by a strong and structurally sound      surface just as any large and heavy picture frame should.       (Please consult a home improvement specialist for the best advice on installation)    3. Frame parts are made of high quality velour‐surfaced aluminum and should be handled with care.  4. When not in use, cover over the screen with a furniture sheet to protect it from dirt, grime, paint or       any other impurities.    5. When cleaning, use a damp soft cloth with warm water to remove any marks on the frame or screen        surface.    6. Never attempt to use any solutions, chemicals or abrasive cleaners on the screen surface.    7. In order to avoid damaging the screen, avoid touching it directly with your fingers, tools or any other       sharp or abrasive objects.    8. Spare Parts should be placed out of reach of small children in accordance with household safety        guidelines.          Warning         1. The projection screen frame is made of high‐quality aluminum alloy and should be handled with care.    2. Use a soft cloth with warm water to remove any spots on the screen surface.    3. To avoid damaging the screen material, never attempt to use any solutions, chemicals or abrasive  ...
  • Page 10 Cinema a235 Di imensio on Table                Measu rements are inten nded as a reference e only and are sub bject to change wi thout notice. Note e: Data Error may  be ±1"      10  Rev.051811‐A AS  www.elitescr reens.com  info@ @elitescreens.com  ...
  • Page 11: Warranty Policy

    Warranty Policy   • Two (2) Year parts and labor warranty from defects in workmanship from purchase date as  follows (except for refurbished units as specified below).  • Three (3) Year parts and labor warranty from defects in workmanship for GEMR (Government,  Educational, Military, & Religious) purchases of new product only.  • Refurbished Units carry a 90‐DAY parts and labor warranty.  • Each party will be responsible for one way shipping during the warranty period.  • A RMA (Return Merchandise Authorization) number must be issued in order to process a  replacement or to authorize a return for warranty repair. Elite Screens will, at its sole option  replace or repair the defective unit with a replacement *(see exceptions below) after the  defective unit or parts have been received. Once the product is received, Elite Screens will send  out a replacement *unit to the customer by ground service (subject to inventory availability).  • Do Not Return Any Unauthorized Items to Elite Screens, as they will be refused and returned  at your expense. The RMA Number must be included on the outside label of your shipping  box. Our warehouse is not authorized to accept returns without an RMA number on the  shipping label.  • RMA Numbers are valid for 45 days from the date issued.  • Missing Parts must be reported within 7 days of receipt. If reported after 7 days, the customer  will be responsible for shipping and handling fees. If reported after 30 days of receipt, the  customer will be responsible for cost of parts and shipping & handling fees.    *A New or refurbished replacement will be send out to the customer depending on the type of  purchase (new or refurbished) and based on stock availability.    North America only U.S. and Canada    For Warranty and Service requests, please submit an RMA/Service Form at:  www.elitescreens.com/warrantysupportform     Please visit this link for full Warranty information:  www.elitescreens.com/warranty  ...
  • Page 12: Contact Info

    Contact Info US & Canada Tech Support & Warranty Claim  Please contact us at service@elitescreens.com or call +1 877‐511‐1211 #3 or fax +1‐562‐926‐8433  Europe Tech Support & Warranty Claim  Please contact us at service@elitescreens.eu or call +49‐(0) 40‐30392958  Asia Tech Support & Warranty Claim   Please contact us at service@elitescreens.com.cn or call +86‐(0) 755‐8461‐7989  Taiwan Tech Support & Warranty Claim  Please contact us at service@elitescreens.com.tw or call +866+2+8990‐1999  America:              Europe:  Elite Screens Inc             Elite Screens Europe  16410 Manning Way              Lübecker Straße 1  Cerritos, CA 90703 USA            22087 Hamburg, Germany    Tel: +1‐877‐511‐1211 ...
