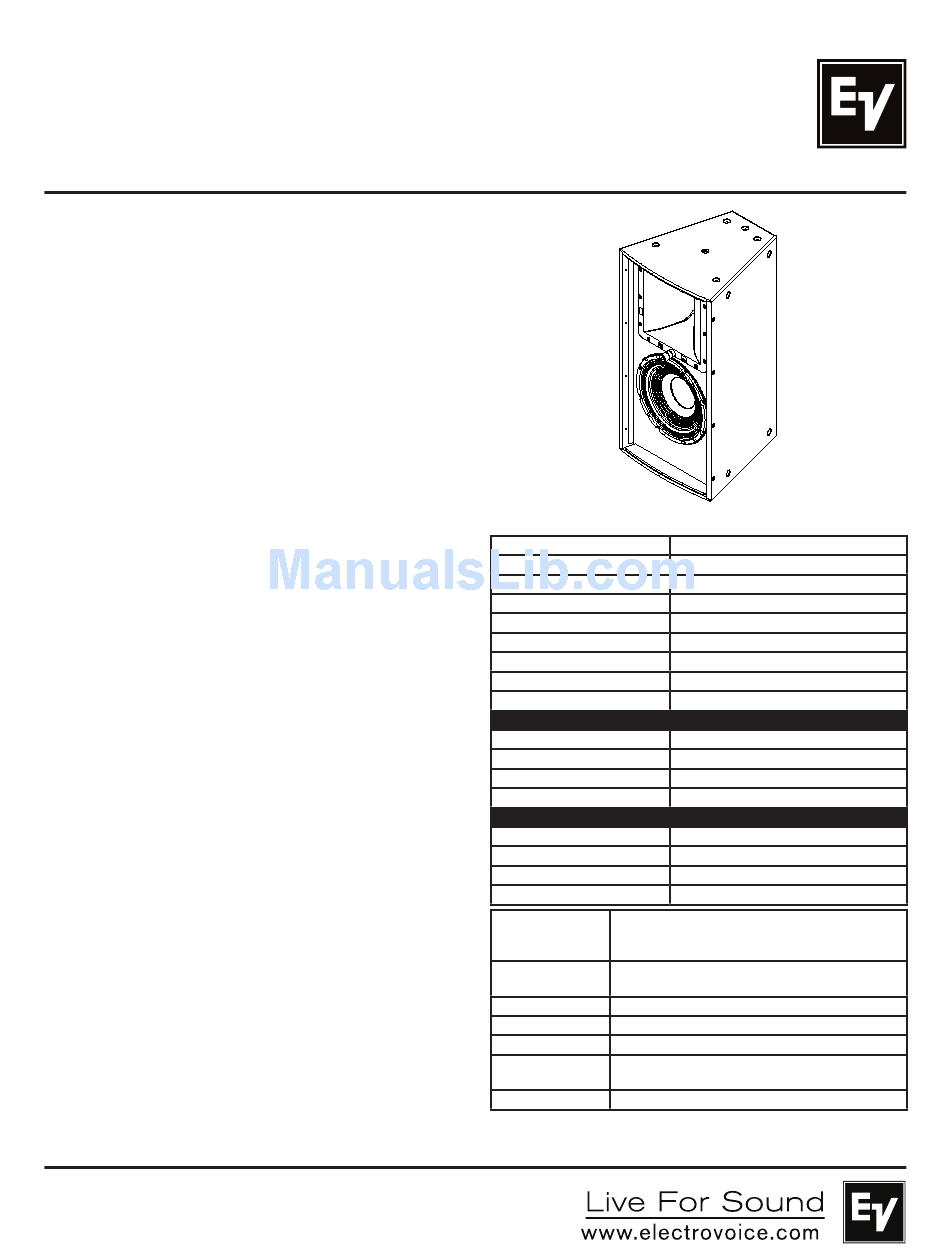

Single 12” two-way 90° x 90° full-range fully-weatherized loudspeaker system
Hide thumbs Also See for EVF-1122D:

Advertisement

Quick Links

Key Features:

Fully-weatherized fiberglass finish with gland nut
and stainless-steel grille
DH7N 3" (76 mm) diaphragm, 1.4" (36 mm) exit
pure titanium compression driver
DVX3121A 12" (305 mm) LF transducer with fully
symmetric drive
Advanced fourth-order crossover network with
HF protection
Coverage pattern: 90° x 90° Constant
Directivity
12" rotatable waveguide
TM
97 dB sensitivity, 131 dB maximum SPL
System rating: 600 W continuous, 2400 W peak
Active rating: LF 500 W/HF 75 W continuous
(2000 W/300 W peak)
(22) M10 threaded suspension points

General Description:

The Electro-Voice EVF-1122D/99-FG is a fully-weatherized, fiber-
glass-coated, high-power, two-way loudspeaker system that can be
used in a variety of applications where high-quality sound reinforce-
ment is required in a compact, lightweight package.
The EVF-1122D/99-FG utilizes the DH7N, a high-output 3" titanium
compression driver, coupled to a Constant Directivity™ 90° x 90°
waveguide. The DVX3121A 12" woofer was developed using FEA
optimization for motor, suspension, and electrical design to ensure
very low distortion, high efficiency, and maximum intelligibility at high
SPL. The crossover uses steep, 24-dB-per-octave slopes with equal-
ization for very smooth response in the vocal range, linear off-axis
response, and a protection circuit for long-term reliability.
The EVF-1122D/99-FG's features make it ideal for many fixed-install
applications, including applications with full exposure to outdoor
elements. The trapezoidal enclosure is constructed of weather-
resistant birch, and coated with fiberglass for maximum protection
from extreme outdoor elements. The unique acoustic and rigging de-
sign allows for vertical and horizontal clusters to be built using any
combination of loudspeakers from the entire EVF and EVH series.
With seven horn patterns to choose from, along with an assortment
of low-frequency and subwoofer loudspeakers, you have the tools to
maximize flexibility of system design, no matter what the application
and budget. The innovative input panel provides a choice of Phoenix-
style connector (included in all standard models) or the ability to add
a dual NL4-type connector cover plate or gland-nut cover plate (for
weatherizing applications). An externally accessible jumper selects
passive or active operation. An available 70.7/100-V transformer
kit may be easily mounted to the input panel for use in distributed
systems. All these features give you the flexibility to address a large
range of venues, quickly and precisely supporting customer require-
ments with fewer items in inventory.
EVF-1 122D/99-FG
Single 12" Two-Way
90° x 90° Full-Range
Fully-Weatherized
Loudspeaker System

Technical Specifications:

Freq. Response
(-3 dB): 118 Hz - 18 kHz
1
Freq. Range
(-10 dB): 66 Hz - 21 kHz
1
Rotatable Coverage: 90° x 90°
Rec. High-Pass Frequency: 65 Hz
Passive Crossover Freq.: 1300 Hz
Axial Sensitivity
: 97 dB (1 W/1 m)
1
Max. Calculated SPL
: 131 dB
1
Passive Power Handling
: 600 W continuous, 2400 W peak
2
Impedance: 8 ohms (nominal), 6.0 ohms (min.)
LF Transducer - DVX3121A, 12" (305 mm) driver
LF Axial Sensitivity
: 98 dB (1 W/1 m)
4
LF Max. Calculated SPL: 131 dB
LF Power Handling
: 500 W continuous, 2000 W peak
3
LF Impedance: 8 ohms (nominal), 7.2 ohms (min.)
HF Transducer - DH7N, 3" (76 mm) diaphragm compression driver
HF Axial Sensitivity
: 110 dB (1 W/1 m)
4
HF Max. Calculated SPL: 135 dB
HF Power Handling
: 75 W continuous, 300 W peak
3
HF Impedance: 8 ohms (nominal), 6.0 ohms (min.)
Connectors: Dual four-pin 10 AWG Phoenix/Euro Block
screw-terminals, CDG dual-gland-nut input
panel cover included for weatherizing
Enclosure: 13-ply weather-resistant birch with fiberglass
finish
Grille: 18 GA stainless steel with hydrophobic cloth
Environmental: IEC 60529 IP55
Suspension: (22) M10 threaded suspension points
Dimensions
30.26" x 16.00" x 16.27"
(H x W x D):
(768.6 mm x 406.3 mm x 413.3 mm)
Weight: 65.5 lb (29.7 kg) net, 75.8 lb (34.4 kg) shipping
Half-space measurement.
1
EIA RS-426A, tested for eight hours.
2
AES 2-1984, tested for eight hours.
3
Arithmetic averages, 300 - 1,300 Hz (LF) and
4
1,300 - 5,000 Hz (HF).
