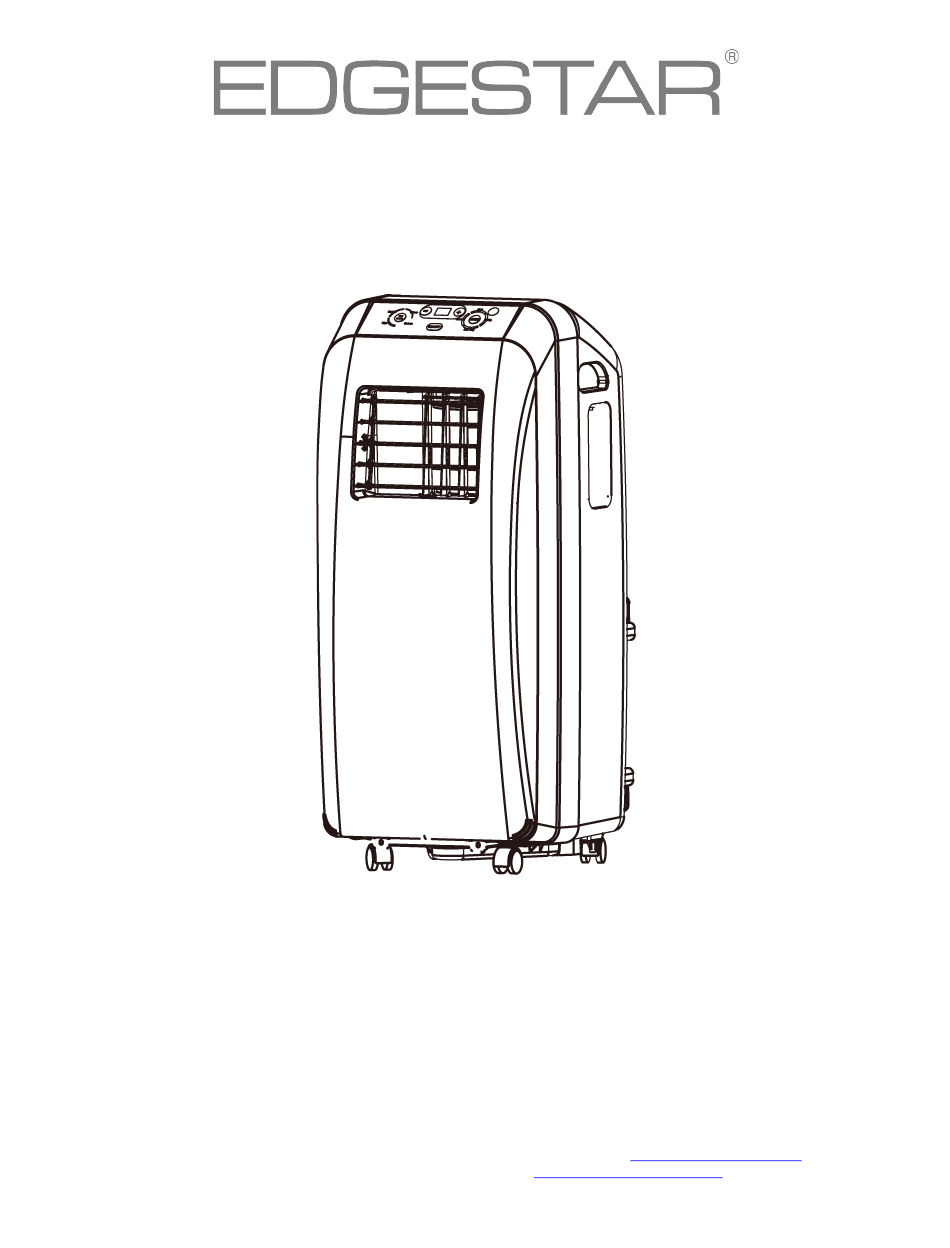

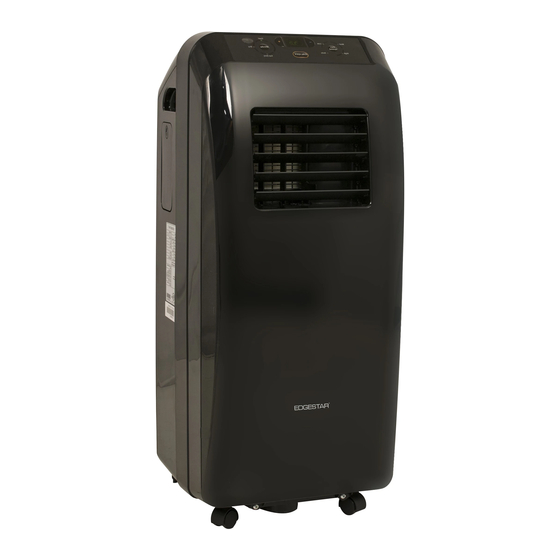

Portable Air Conditioner
AP10002BL
Owner's Manual
For more information on other great EdgeStar products on the web, go to
https://www.edgestar.com
To use the EdgeStar self-diagnostic tool, go to
https://support.edgestar.com
V2.2-11102017

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the AP10002BL and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EdgeStar AP10002BL

Summary of Contents for EdgeStar AP10002BL

  • Page 1 Portable Air Conditioner AP10002BL Owner’s Manual For more information on other great EdgeStar products on the web, go to https://www.edgestar.com To use the EdgeStar self-diagnostic tool, go to https://support.edgestar.com V2.2-11102017...
  • Page 2 Important Safety Information Improper handling can cause serious damage to the appliance and / or to the user. Please read the following safety information. Improper handling can cause serious damage to the appliance and/or to the user. Please read Electrical Safety the following safety information •...

  • Page 3: Operation Of Safety Plug

    2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. DO NOT USE YOUR PORTABLE AIR CONDITIONER IF THE TEST FAILS.

  • Page 4: Table Of Contents

    ............................... 14 EMOTE ONTROL ............................15 NSTALLING THE ATTERIES ................................15 OOLING ................................ 15 NLY ..................................16 IMER How to Set the Unit to Automatically Turn On ....................16 How to Set the Unit to Automatically Turn Off ....................16 ..................................16 LEEP MAINTENANCE ..............................16 ..............................16 LEANING THE ............................. 17 LEANING THE FILTER ............................17 REPARATION FOR TORAGE ENERGY SAVING GUIDE ............................. 18 TROUBLESHOOTING ............................19 SPECIFICATIONS ..............................22 NEW PORTABLE AIR CONDITIONER BTU’S ......................23 SACC? ................................. 23 HAT IS EDGESTAR LIMITED WARRANTY ......................... 24...

  • Page 5: Introduction

    Introduction Thank you for purchasing this EdgeStar portable air conditioner. We hope that this purchase will be the beginning of a lasting and rewarding relationship between you and EdgeStar. We will provide the customer support and exemplary products necessary to nurture that relationship.

  • Page 6: Parts Identification

    Parts Identification Front View Back View...

  • Page 7: Back View With All Accessories

    Back View with All Accessories Parts Included Suggested Tools Philips Screw Driver (Medium Size), Tape Measure / Ruler, Scissors, Saw (in the event that your window panel needs to be cut down to fit your window).

  • Page 8: Window Kit And Exhaust Hose Installation Instructions

    Window Kit and Exhaust Hose Installation Instructions Preparations for Installing the Window Kit You must vent your portable air conditioner when running it in cooling mode. Your unit includes a window exhaust kit that can be used to vent the unit out of a window. Before you begin, make sure that you have all the parts necessary for installation and that a suitable location is picked.
  • Page 9 Step 3 A. If the inner width of the window is less than 28” (718 mm) wide: 1. Remove the adjustment panel from the window panel, and cut the window panel to the same width as the window. Trim the side farthest from the exhaust opening. 2.
  • Page 10 Step 4 Cut the foam seal B to the proper length and attach it to the window panel. Step 5 Close the window sash securely so that it is flush against the window panel. Step 6 Cut the foam seal A to an appropriate length between the top of the inner window sash and the outer window sash.

  • Page 11: Installation Of The Exhaust Hose

    Installation of the Exhaust Hose Step 1 Extend both ends of the exhaust hose and insert them into the window exhaust adapters A and B. Turn them until they stop. Make sure they are securely attached. Step 2 Attach the window exhaust adapter A to the unit. Insert the two projections on the window exhaust adapter A into the two holes on the unit and firmly attach them to each other by sliding the adapter down until it clicks.

  • Page 12: Notes About The Exhaust Hose

    Notes About the Exhaust Hose Your portable air conditioner is designed to exhaust condensed water that is collected from the air. This water, in either gaseous or droplet form, will be expelled out of the exhaust port of the unit. Please take this into account when deciding how to vent it.

  • Page 13: Installation Of The Drain Hose

    Installation of the Drain Hose Note: The drainage hose must be installed before using this unit. If it is not, a block in the drain can form and prevent the unit from functioning normally. Step 1 Remove the drain cap from the drain port. Step 2 Attach the drain hose clamp to the back panel of the air conditioner near the drain port with the screw.

  • Page 14: Draining The Unit

    Step 3 Attach one end of the drain hose to the drain port with the clip provided. Step 4 Insert the rubber plug into the other end of the drain hose and secure clip provided. Draining the Unit When the portable air conditioner is in cooling mode, or dehumidify mode, it will remove moisture from the air.

  • Page 15: Installing The Filter

    Installing the Filter Your portable air conditioner ships with a carbon filter. It is recommended you replace the filter every two to three months, or as needed. It is also necessary to clean the pre-filter periodically (see page 17 for maintenance instructions). Follow the steps below to install the carbon filter: 1.

  • Page 16: Operating Instructions

    Operating Instructions Control Panel Overview On / Off Button Press this button once to manually turn the unit on. Press this button once more to turn the unit off. “+” / “-” Button In COOL mode, press “-” once, and the set temperature will decrease by 1°...

  • Page 17: Directional Louvers

    Directional Louvers Remote Control The included universal remote control is used to operate all of your portable air conditioner’s functions. Use the remote control to change modes, fan speed, timer, and temperature settings as well as to set sleep mode. Note: Be careful not to drop the remote control.

  • Page 18: Installing The Batteries

    Installing the Batteries 1. Remove the cover on the back of the remote control. 2. Insert the batteries with the (+) and (-) ends pointing in the direction indicated. 3. Install the cover on the back of the remote control. Caution: Use only AAA batteries.

  • Page 19: Timer

    Timer The timer can be used to either turn the unit on or off after a selected number of elapsed hours. The timer is adjustable between 0.5 – 24 hours in one hour increments. How to Set the Unit to Automatically Turn On 1.

  • Page 20: Cleaning The Pre-Filter

    Clean the pre-filter periodically. If the unit is used in a dusty environment you may need to clean it on a weekly basis. Warning: Never operate the unit without the pre-filter. Note: Filters should be replaced every 3 – 6 months or as needed. Contact EdgeStar or visit www.EdgeStar.com for replacement filters. Preparation for Storage...

  • Page 21: Energy Saving Guide

    Energy Saving Guide Read and follow the guide below to get the best performance and efficiency from your portable air conditioner: • Do not cover the air outlet (exhaust) while in use. • Do not place the unit in front of curtains or drapes to ensure they do not obstruct the air intake.

  • Page 22: Troubleshooting

    Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is not The unit is not receiving Make sure the unit is plugged functioning at all. power. in to a grounded outlet. The LCDI power cord is Press the Reset button on the tripped.
  • Page 23 Issue Possible Cause Solution No air comes out of the left side The unit is designed to blow This is normal operation. of the air vent. air from the right side. My air conditioner is not cooling The unit is not operating in Set the unit to be in cooling at all.
  • Page 24 Solution Low pressure overcurrent protection. Disconnect the power. After 10 minutes, turn the unit back on. If the "E5" code is still present, please contact EdgeStar customer service. The water reservoir is full. Pour out the water from the chassis reservoir the drain plug.

  • Page 25: Specifications

    Specifications Description of product Portable Air Conditioner Model AP10002BL Voltage / Frequency AC 115 V ~ 60 Hz Input Power 1120 W Current 9.0 A Cooling Capacity (SACC) 5600 BTU Cooling Capacity (ASHRAE) 10000 BTU Color Black Coolant R410A, 18.3 oz.

  • Page 26: New Portable Air Conditioner Btu's

    New Portable Air Conditioner BTU’s You may notice that the cooling capacities (in British Thermal Units or BTU’s) labeled on portable air conditioners (PAC’s) are now lower than on models produced prior to October 1, 2017. This is because the labeling on new productions of PAC’s must follow a new federal test standard that was established by the Department of Energy: 10 CFR 430, subpart B, appendix The SACC rating shown on your new PAC is a result of this new standard.

  • Page 27: Edgestar Limited Warranty

    PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part. All replacement parts or products will be new, remanufactured, or refurbished.
