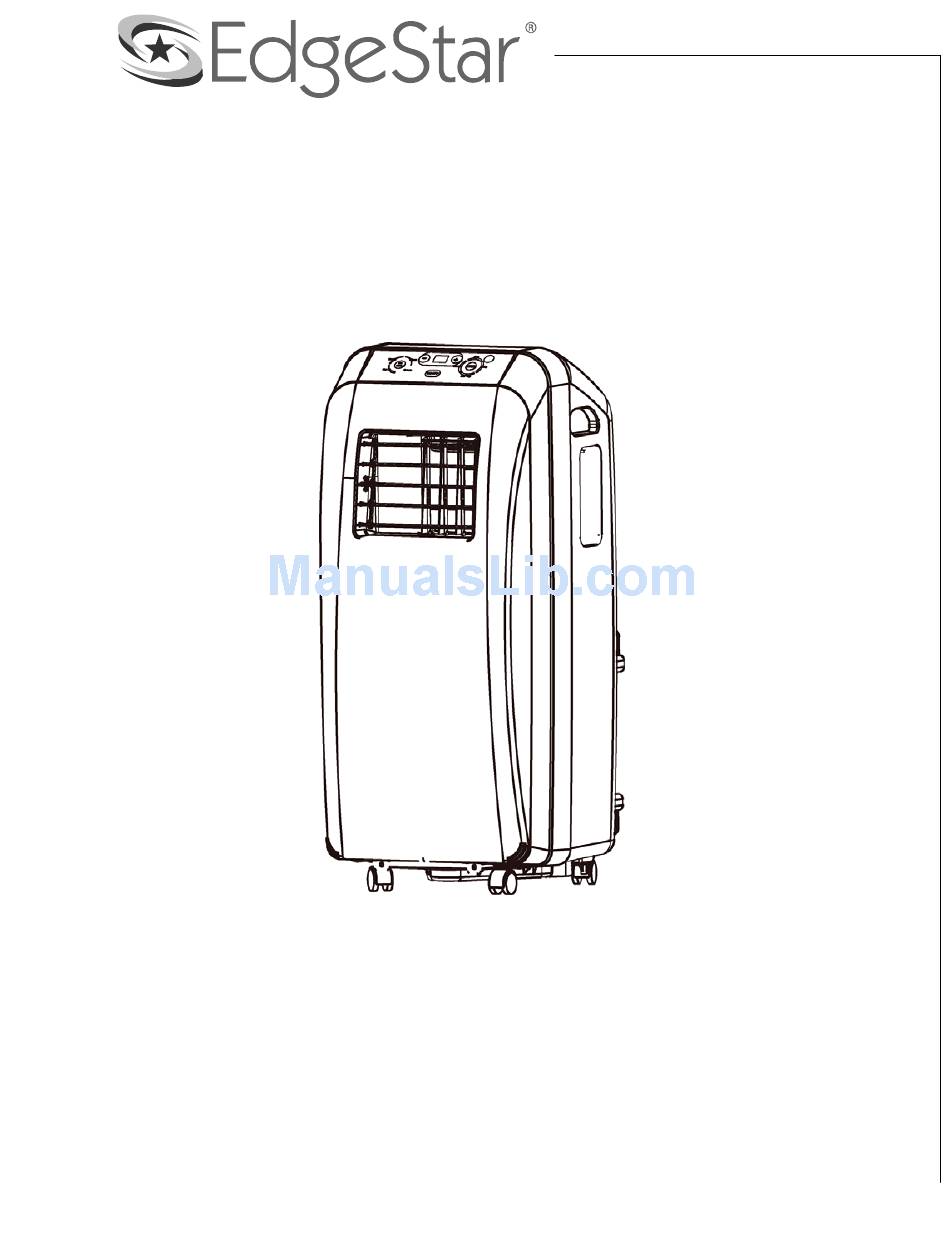

- Page 1 Portable Air Conditioner Owner’s Manual AP10002BL For more information on other great EdgeStar products on the web, go to http://www.edgestar.com...
-
Page 2: Important Safety Information
2. Press the TEST button on the LCDI plug. This should trip the plug and cut the power to the air conditioner. If the plug does not trip and you are able to turn on the unit, please contact EdgeStar support. -
Page 3: Table Of Contents
MAINTENANCE ....................15 ................... 15 LEANING THE UNIT ................. 15 LEANING THE PRE FILTER ................16 REPARATION FOR TORAGE TROUBLESHOOTING ..................17 SPECIFICATIONS ....................20 EDGESTAR LIMITED WARRANTY ..............21 Edgestar Portable Air Conditioner... -
Page 4: Introduction
Introduction Thank you for purchasing this EdgeStar portable air conditioner. We are glad you chose us. We believe that your purchase of this product opens a relationship between you and EdgeStar. We will provide the customer support needed to nurture that relationship. -
Page 5: Parts Identification
1. Control Panel 2. Handle 3. Remote Control Holder 4. Air Vent 5. Louvers (Vertical & Horizontal) 6. Castors (4) 7. Air Inlet 8. Filter Grill 9. Air Outlet 10. Power Cord Hook 11. Power Cord Back View Edgestar Portable Air Conditioner... -
Page 6: Parts Included
Parts Included Suggested Tools- Phillips Screw Driver (Medium sized), Tape Measure/Ruler, Scissors, Saw (In the event that your window panel needs to be cut down in size for installation). Preparations for installing the window kit NOTE: You may need to You must vent your portable air conditioner when running in it contact your electrician if cooling mode. -
Page 7: Window Kit Installation Instructions
Line up the holes on the rain deflector and the window panel. Use 4 bolts, 4 washers, 4 split-ring washers and 4 nuts to attach the rain deflector onto window panel. Edgestar Portable Air Conditioner... - Page 8 Attach the window panel to the window panel If the inner width of the window is less than 28” (718 mm) wide: 1) Remove the adjustment panel from the window panel, and cut the window panel to the same width as the panel. 2) Open the window sash and place the window panel on the windowsill.
-
Page 9: Installation Of The Exhaust Hose
B and C to the exhaust hose. Extend both ends of the exhaust hose and insert them into the window exhaust adapter A and B and turn them until they stop. Make sure they are securely attached. Edgestar Portable Air Conditioner... -
Page 10: Notes About The Exhaust Hose
Attach the window exhaust adapter A to the unit. Insert the two projections on the window exhaust adapter A into the two holes on the unit and firmly attach them to each other by sliding the adapter down until it clicks. To remove please make sure to push down on the two projections and lift up. -
Page 11: Installation Of The Drain Hose
Note: Drainage hose must be installed before using this unit to as not doing so can occur in a block in the drain and prevent the unit from functioning normally. Remove the drain cap from drain port. Edgestar Portable Air Conditioner... -
Page 12: Draining The Unit
Attach the drain hose clamp to the back panel of the air conditioner near the drain port with the screw. Attach one end of the drain hose to the drain port with the clip provided. Insert the rubber plug into the other end of the drain hose and secure clip provided. -
Page 13: Installing The Filter
1. Shut off the unit if it is on. In the rear of the unit pull the air filter grill from the side. 2. Place the carbon filter between the grille and the pre-filter. 3. Close the grille. Edgestar Portable Air Conditioner... -
Page 14: Operating Instructions
Operating Instructions Control Panel Overview On/Off Button Press the button once to manually turn the unit on. Press once more to turn the unit off. “+” / “-“ Button In COOL mode, press “-“once, the set temperature will decrease by 1° degree Fahrenheit. Continue to press to get to desired temperature. -
Page 15: Directional Louvers
Used to enable the timer. Sleep Used to enable the sleep mode. Increases the set temperature or the time when the Timer is enabled. Decreases the set temperature or time when the Down Timer is enabled. Edgestar Portable Air Conditioner... - Page 16 Installing the batteries CAUTION: Use only AAA batteries. Remove the batteries if the remote control will not be used for one month or longer. Do not attempt to recharge batteries not designed to be recharged. All batteries should be replaced at the same time. 1) Remove the cover on the back of the remote control.
-
Page 17: Energy Saving Guide
Close all windows and doors. Use the unit in a contained room. For example, a room with four walls and a ceiling, instead of a partitioned studio, or warehouse. Make sure the unit is on a level surface. Edgestar Portable Air Conditioner... -
Page 18: Maintenance
2) Remove the activated carbon filter. replaced every 2-3 months or as 3) Use a vacuum cleaner or tap the filter lightly to remove loose needed. Contact EdgeStar dust and dirt, then rinse thoroughly under lukewarm running water retailers for replacement filters. -
Page 19: Preparation For Storage
2) Power off the unit, and clean or change the filters. 3) Unplug and carefully wind the power cord. 4) Remove the exhaust hose and duct connectors and keep them in a safe place. Edgestar Portable Air Conditioner... -
Page 20: Troubleshooting
Troubleshooting Follow the troubleshooting guide below to resolve common issues. Issue Possible Cause Solution My air conditioner is Unit is not receiving Make sure the unit is not functioning at all. power. plugged in to a grounded outlet. LCDI power cord is Press the Reset button tripped. - Page 21 The filter may be dusty Clean the filter and or blocked. replace it if needed. Dirty condenser coils. Carefully vacuum the coils clean. Obstructed air intake Remove anything or exhaust ports. blocking the ports. Edgestar Portable Air Conditioner...
- Page 22 Issue Possible Cause Solution My air conditioner is Unit is not operating in Set the unit to be in not cooling at all. cooling mode. cooling mode, and lower the set temperature (pg. 13). TIP: Run the unit before it is The compressor is not The compressor may needed.
-
Page 23: Specifications
Description of product Portable Air Conditioner Model AP10002BL Voltage/Frequency AC 115V~60Hz Input Power 1120W Current 9.0 A Color Black Coolant R-410A Timer 24 Hour Dimensions 13 3/8” x 30 11/16” x 15 1/2” WxHxD Weight 52.9 lbs Edgestar Portable Air Conditioner... -
Page 24: Edgestar Limited Warranty
EdgeStar authorized repair facility. PARTS: For a period of ONE (1) YEAR from the date of original purchase, EdgeStar will supply new, rebuilt, or refurbished parts free of charge. EdgeStar may request a defective part be returned in exchange for the replacement part.
