Figure 2 Remote Monitoring Panel Layout Constraints; Table 1 Rmp Component Location In Figure 1 - Emerson Liebert Remote Monitoring Panel User Manual

Table 1 RMP component location in Figure 1
1 Bypass Input
2 Inverter—DC to AC
3 Rectifier—Input AC to DC
4 Load—AC Output
5 Battery—DC Backup
6 Audible Alarm—Buzzer
7 UPS Status and Alarm indicator
8 F1 Function Key
9 F2 Function Key

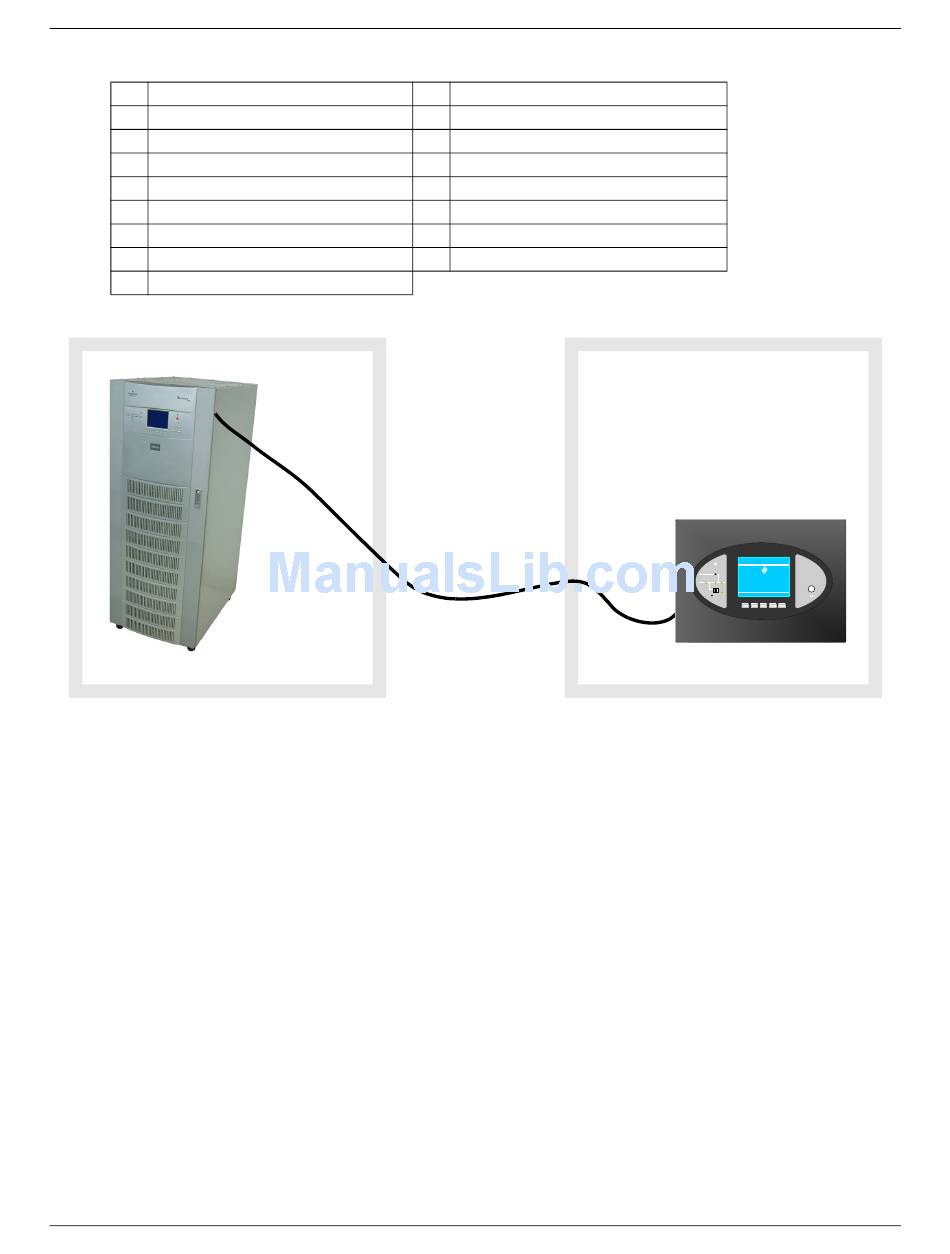

Figure 2 Remote Monitoring Panel layout constraints
Liebert NX
10
11
12
13
14
15
16
17
UPS Room
Communication
Cable; Maxi-
mum Length
100m (328ft.)
(field-supplied)
F3 Function Key
F4 Function Key
Help Key
Silence On/Off Audible—Alarm Mute
RS-232—for firmware update
RS-232—Reserved, not used
AC power input cable entry
RS-485 communication cable entry
Maintenance or Control Room
3
Introduction
Liebert NX
12-16-2009 12:22: 14
081 kVA -3x3 Single Normal
EMERSON
L ie b e r t N X
™
Network Power
EMERSON
™
Remote Monitor Panel
Network Power
Liebert ®
Press any key back to main menu S ILE NC E ON/OFF
S TATUS
F1 F2 F3 F4 HELP
