TECHNICAL DATA BROCHURE
ZTR Model 3361
IMPORTANT - READ OPERATOR'S MANUAL BEFORE OPERATING OR MAKING ADJUSTMENTS

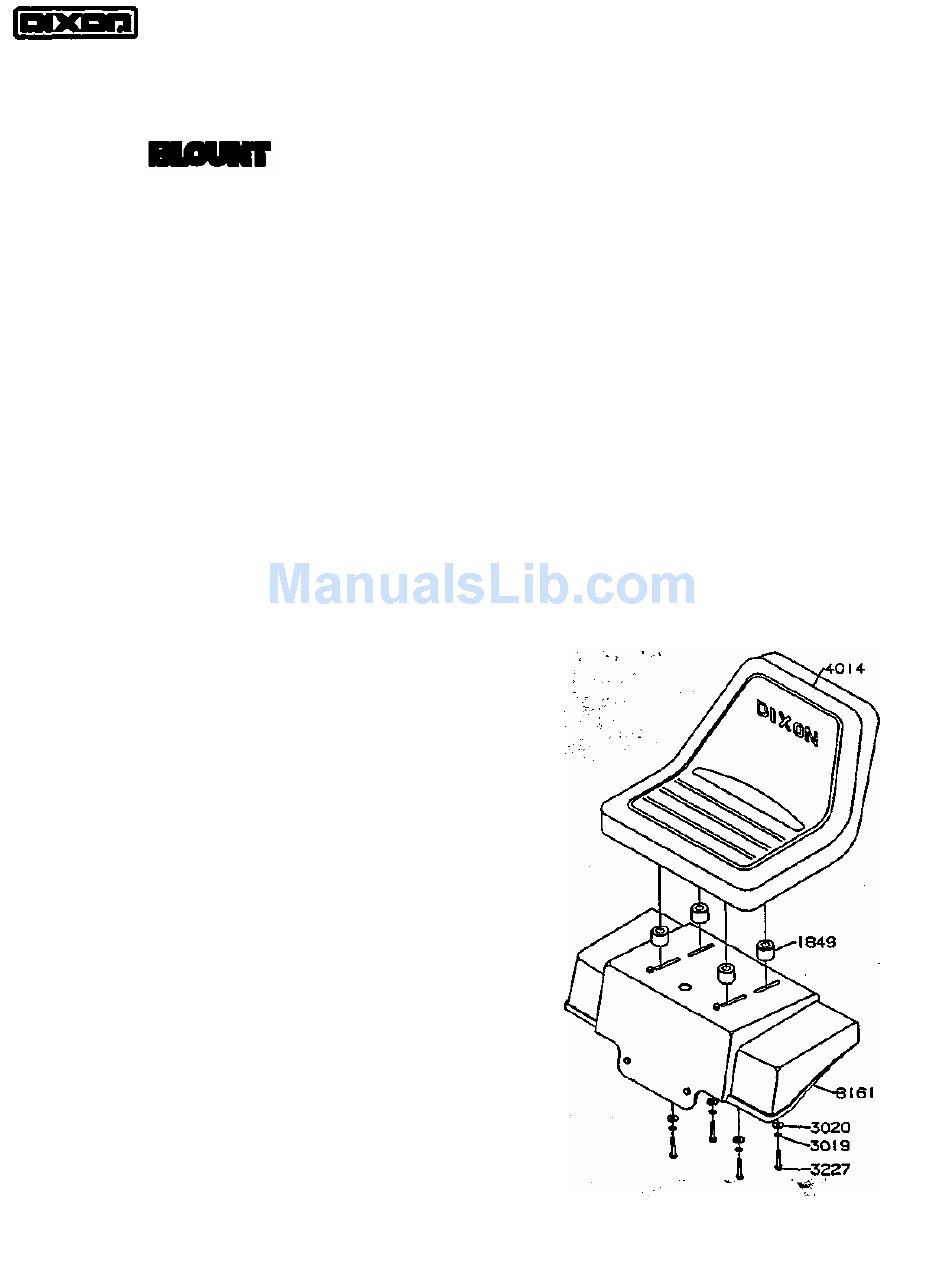

SEAT ADJUSTMENT

1. Pull or lift body retention latch P/N 3954 from
transaxle backing plate, raise and push body
and seat assembly forward.
2. Loosen four seat adjustment bolts
P/N 3227 and slide seat forward or backward
to desired position.
3. Re-tighten seat adjustment bolts P/N 3227. DO
NOT operate mower without seat
adjustment bolts properly tightened.
4. Close upper body and push re tention latch
P/N 3954 over transaxle backing plate.
