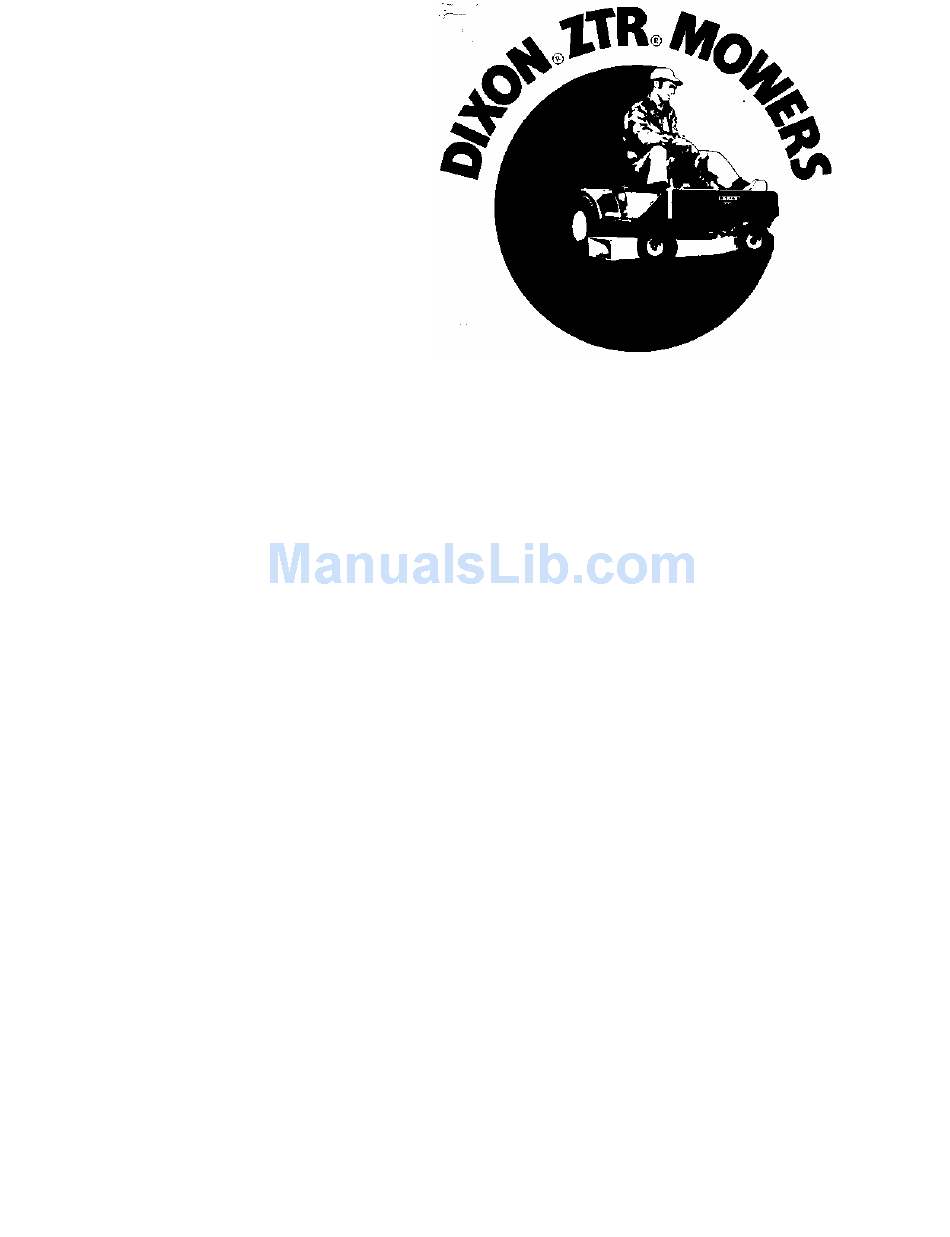

- Page 1 OPERATOR'S MANUAL FOR ZTR-301, 302 MOWER...
-
Page 2: Read Carefully
READ CAREFULLY You have purchased a top quality lawn mower that has been inspected at the factory and found to be in perfect mechanical condition. This lawn mower is warranted for 1 year from date of delivery against all defects in materials and workmanship. Lawn mowers used for... -
Page 3: One-Year Limited Warranty
ONE-YEAR LIMITED WARRANTY This lawn mower is warranted for one(1) year from date of delivery against all defects in materials and workmanship. Lawn mowers used for commercial service are warranted for 30 days from date of delivery. (Lawn mowers other than those used only at residence of owner are considered as commercial service.) -
Page 4: Serial Numbers
7. Your Dixon mower is very stable because of its low center of gravity and weight biased to the rear; however, caution should be exercised when mowing hills or slopes with any mower. - Page 5 ALWAYS SET PARKING BRAKE AND DISENGAGE BLADE OPERATION BEFORE DISMOUNTING IMPORTANT OPERATING INSTRUCTIONS Dixon ZTR mowers offer a new concept in mowing, providing unique maneuverability and ease. The following procedures will allow one to become familiar with the unique method of control very easily.
- Page 6 ing rope as soon as engine starts. To stop engine turn key to "OFF" position. 5. Set engine to desired speed by adjusting throttle control. (Suggest set at slow speed during initial operation.) 6. NOTE SAFETY FEATURE: Engine stops automatically if operator leaves seat while blades are engaged.
-
Page 7: Maintenance
ALWAYS DISENGAGE BLADE OPERATION BEFORE DISMOUNTING. 9. Parking Brake: Parking brake is hand operated and is located at right-hand side of mower. To disengage move lever forward. To engage brake pull lever to the rear. Always set parking brake before dismounting. - Page 8 Follow the manufacturer's instructions as to maintenance and repair. A copy of these instructions are supplied with each mower. TRANSAXLE For adjustment or repair confer with authorized Dixon dealer service department. Adjustment or repair by other than authorized dealer voids warranty.
- Page 9 SPARE PARTS See your dealer for ordering spare parts or warranty service. REMOVING AND REINSTALLING MOWER DECK 1. Remove engaging handle by removing bolt and nut under handle. 2. Disconnect mower deck wire loom from frame wire loom. 3. Loosen belt keeper located under engine by loosening two (2) rear engine mount bolts to allow mower deck drive belt to come free of rear pulley.
- Page 12 Part No. Name 30-1039 Lower Lift Link 30-1043 Battery Strap 30-1501R Upper Control Lever - Right 30-1501L Upper Control Lever - Left 30-1507 Wheel/Mower Deck Bearing 30-1530 Bellcrank Weldment 30-1536 Chain Connecting Link 30-1540 Engine Shaft Key 30-1542 V-Pulley 30-1543 Lift Knob 30-1560-1 Battery Splash Guard...
- Page 13 Part No. Name 30-2506 Support Assembly - Right 30-2507L Support - Left 30-2507R Support - Right 30-2509 Support Shaft 30-2514 Torque Rod Stiffener - RH 30-2515 Torque Rod Stiffener - LH 30-2519 Cradle Assembly - Left 30-2520 Cradle Assembly - Right 30-2600 Mower Deck Assembly 30-2601...
-
Page 14: Owner Information
OWNER INFORMATION... - Page 15 Dixon Industries, Inc., Box 494, Coffeyville, Kansas 67337 Dixon and ZTR are the trademarks of Form No. 1449-177 LITHO IN U.S.A.
